ATOM-100173

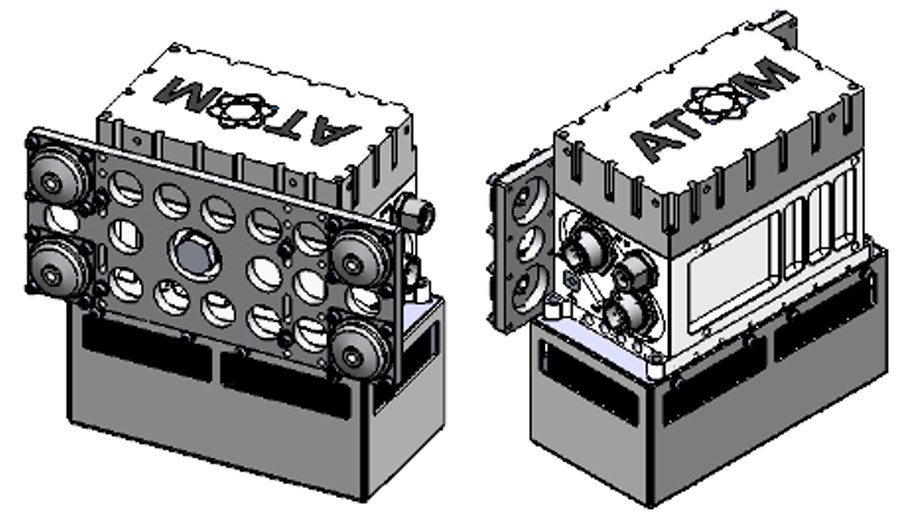

ATOM 20W Ku-Band BUC w/ Vibration Assembly

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
band type Extended
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 950 - 1700 MHz
LO frequency 1 12.80 GHz
output frequency band 1 13.75 - 14.50 GHz
output power rated 20 W
Product Revision F
RF SPECIFICATIONS
gain flatness (40MHz) ≤ 2.0 dB p-p
Gain Flatness (over full band) ≤ 6.0 dB p-p
Gain Flatness (over temperature) ≤ 3.0 dB p-p
input VSWR 2.0 : 1 max.
Linear Gain ≥ 60 dB
noise power density -65 dBm/Hz in Tx, -65 dBm/Hz in Rx
output P1dB 43 dBm min.
output power psat 44 dBm min.
output spurious in band ≤ -55 dBc
output spurious out of band P1dB ≤ -55 dBc
output VSWR 2.0 : 1 max.
phase noise 1kHz offset max -72 dBc/Hz
phase noise 10kHz offset max -82 dBc/Hz
phase noise 100kHz offset max -92 dBc/Hz
phase noise 1000kHz offset max -102 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 11.7 A max.
power connector MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat 210 W max.
power requirements +18 to +56V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF output connector WR-75 waveguide grooved
M and C SPECIFICATIONS
mute control Fully configurable, (mute enable: high: 3.0 - 5.0 V or low: 0.0 - 0.8 V, mute default: enabled or disabled)
m and c connector MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins, 58-533723-10P
m and c interface RS-485 & RS-232
ENVIRONMENTAL SPECIFICATIONS
humidity 100% condensing
temperature operational -40°C to +70°C
temperature storage -55 to +85°C
thermal shutdown temperature 100°C (Accuracy ± 3°C)

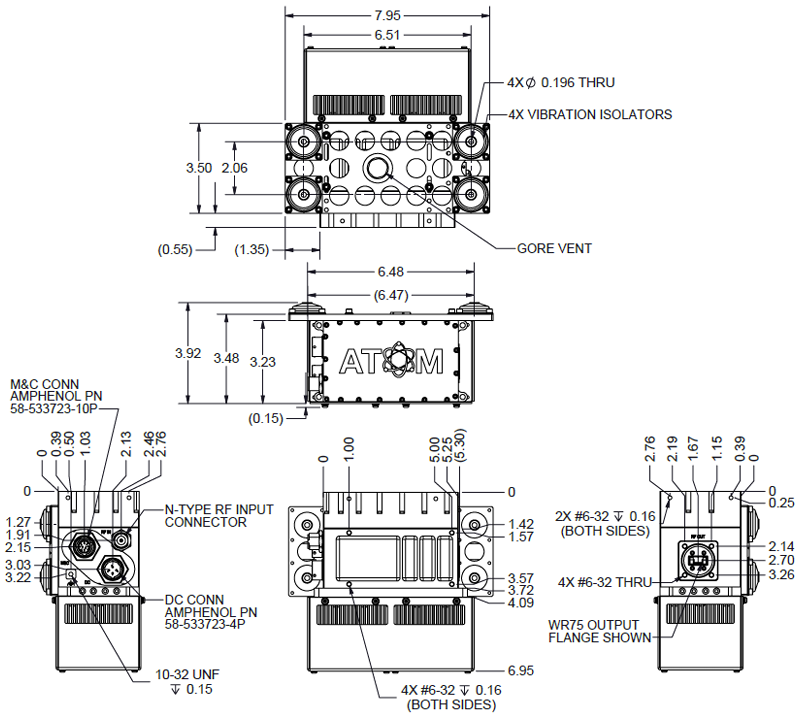

PHYSICAL SPECIFICATIONS
cooling Internal Fan
enclosed accessories Screws, Gasket, M&C Connector, Power Connector
product height 177 mm
product length 202 mm
product weight 2.4 kg
product width 100 mm
ACCESSORIES
configuration add ons EMI/EMC Filter (MIL-STD-461), Surge Protection (MIL-STD-1275D), Gore Vent, Fungal Inert Components
optional m and c cable 10m CABLEM+C-AT10
