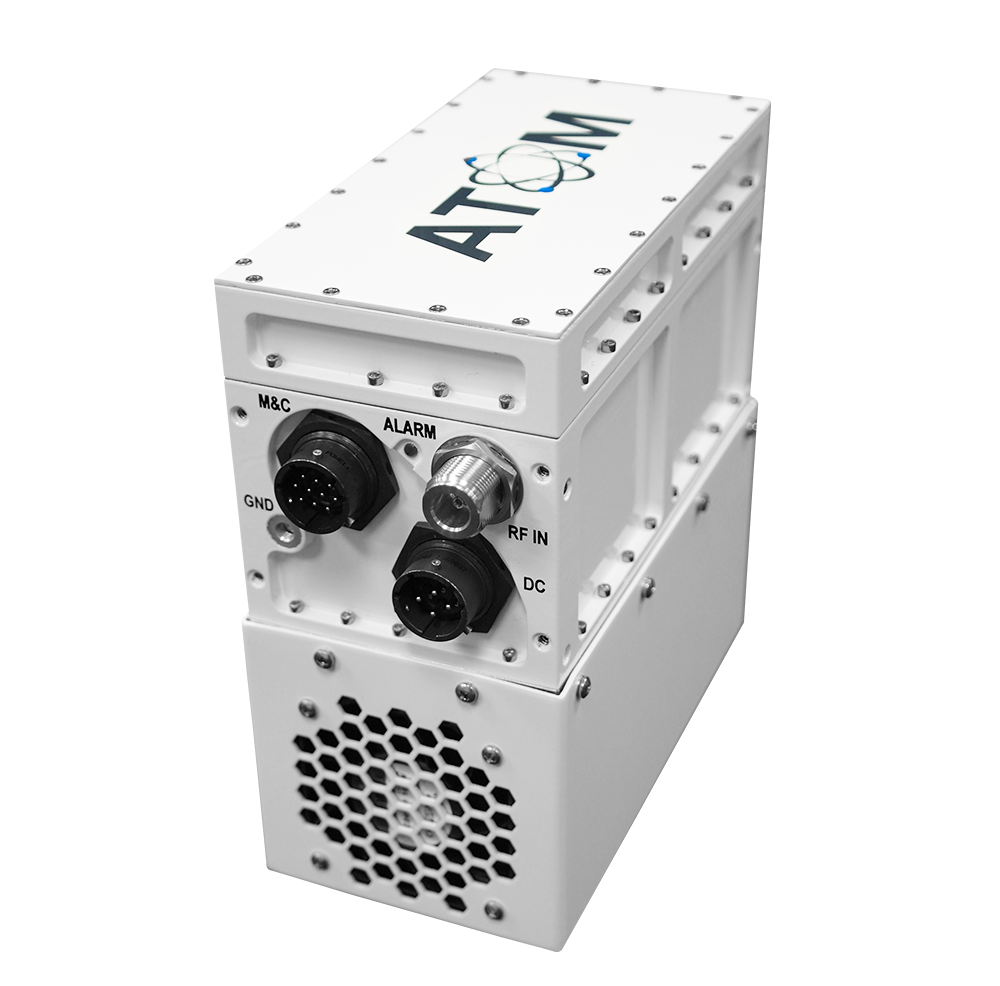

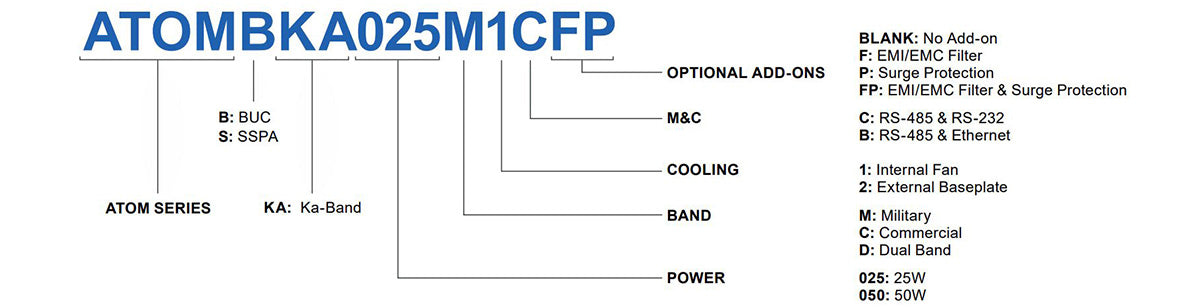

KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan

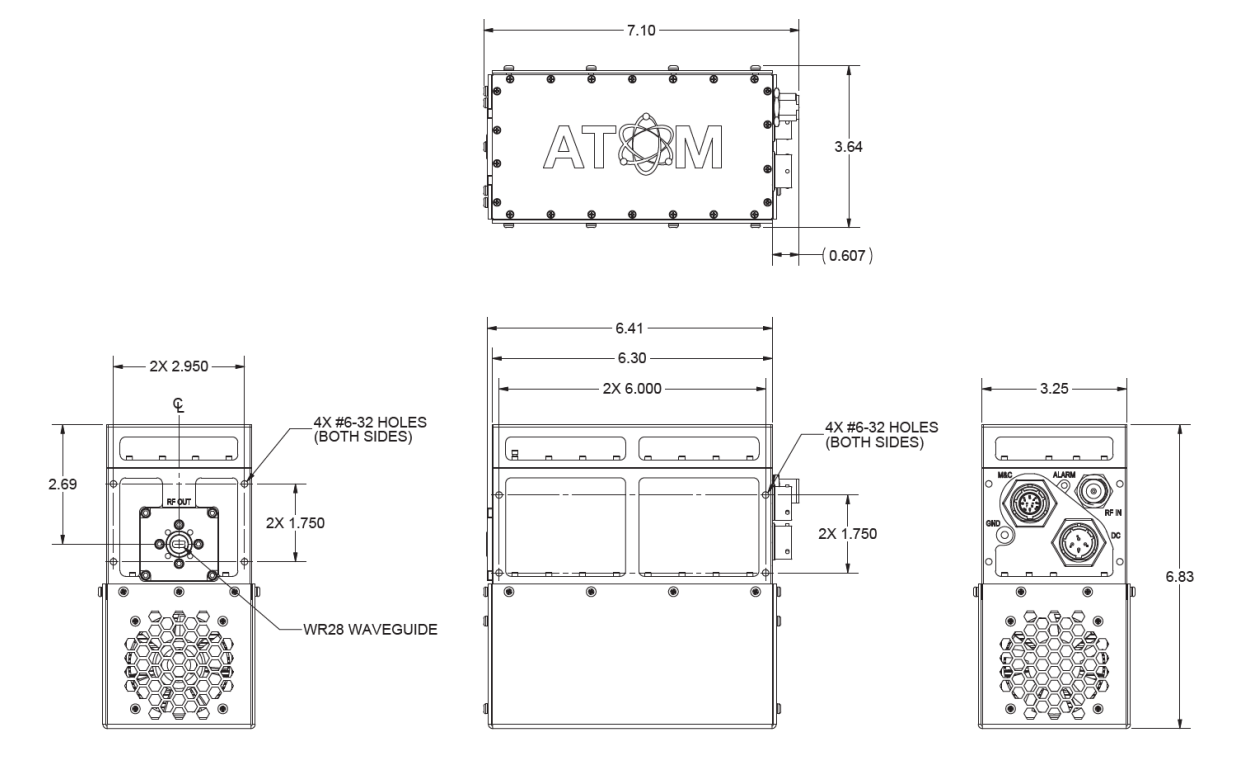

dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
input frequency band 2
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output frequency 2
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
lo frequency 2
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
2.5 : 1
lo frequency 1
29.05 GHz
output power saturated
44 dBm min.
output vswr
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
input frequency band 2
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output frequency 2
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
lo frequency 2
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
input frequency band 2
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output frequency 2
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
lo frequency 2
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
input frequency band 2
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output frequency 2
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
lo frequency 2
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
input frequency band 2
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output frequency 2
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
lo frequency 2
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
input frequency band 2
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output frequency 2
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
lo frequency 2
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
input frequency band 2
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output frequency 2
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
lo frequency 2
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
input frequency band 2
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output frequency 2
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
lo frequency 2
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
3.2kg
PHYSICAL SPECIFICATIONS
cooling
Internal Fan
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
input frequency band 2
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output frequency 2
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
lo frequency 2
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
input frequency band 2
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output frequency 2
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
lo frequency 2
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
input frequency band 2
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output frequency 2
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
lo frequency 2
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
input frequency band 2
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output frequency 2
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
lo frequency 2
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
input frequency band 2
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output frequency 2
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
lo frequency 2
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
input frequency band 2
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output frequency 2
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
lo frequency 2
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
input frequency band 2
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output frequency 2
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
lo frequency 2
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
KEY SPECIFICATIONS
band
Ka-Band
input frequency band 1
L-Band: 950 - 1950 MHz
input frequency band 2
L-Band: 1000 - 2000 MHz
output frequency 1
Ka-Band: 29.00 - 30.00 GHz
output frequency 2
Ka-Band: 30.00 - 31.00 GHz
output power rated
25W
RF SPECIFICATIONS
conversion gain
60 dB typ., 55 dB min., 65 dB max.
input VSWR
1.5 : 1
lo frequency 1
28.05 GHz
lo frequency 2
29.05 GHz
output power saturated
44 dBm min.
output VSWR
1.9 : 1
spurious
In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc
ELECTRICAL SPECIFICATIONS
input voltage
18V to + 56V DC
power connector
MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-04P
ENVIRONMENTAL SPECIFICATIONS
humidity
100% condensing
temperature operational
-40 to +60°C
temperature storage
-54 to +71°C
Weight
2.5kg
PHYSICAL SPECIFICATIONS
cooling
External Baseplate
dimensions (LxWxH)
140 x 80 x 170 mm
enclosed accessories
Screws, Gasket, M&C Connector, Power Connector
INFORMATION
HS Code
8517690000
Country of Origin
CA
ECCN Number
EAR99
Shipping Package Dimensions
140 x 80 x 170 mm
Shipping Package Weight
3000g
ATOMBKA025-50-Spec-Sheet.pdf
ATOMControl-Software-v2.1.9.zip
