Name: ATOM 40W Ku-Band SSPA
Brand: Norsat International Inc.
SKU: ATOMSKU040S1
Price: 19126.83 USD
Availability: InStock

ATOMSKU040S1

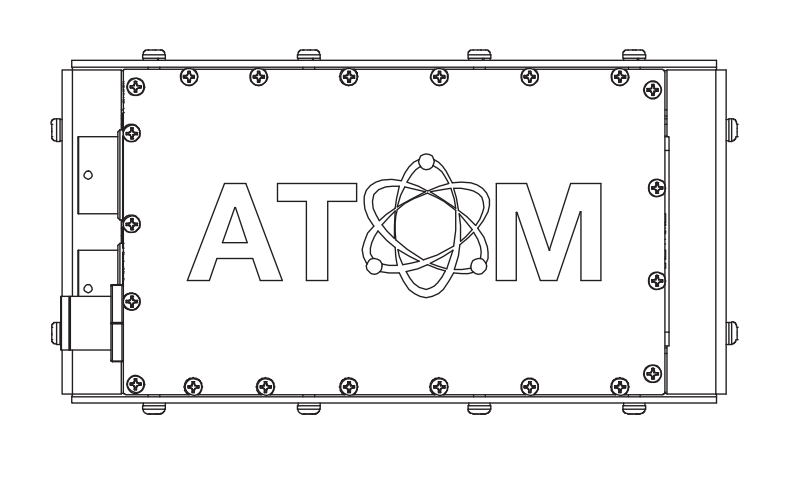

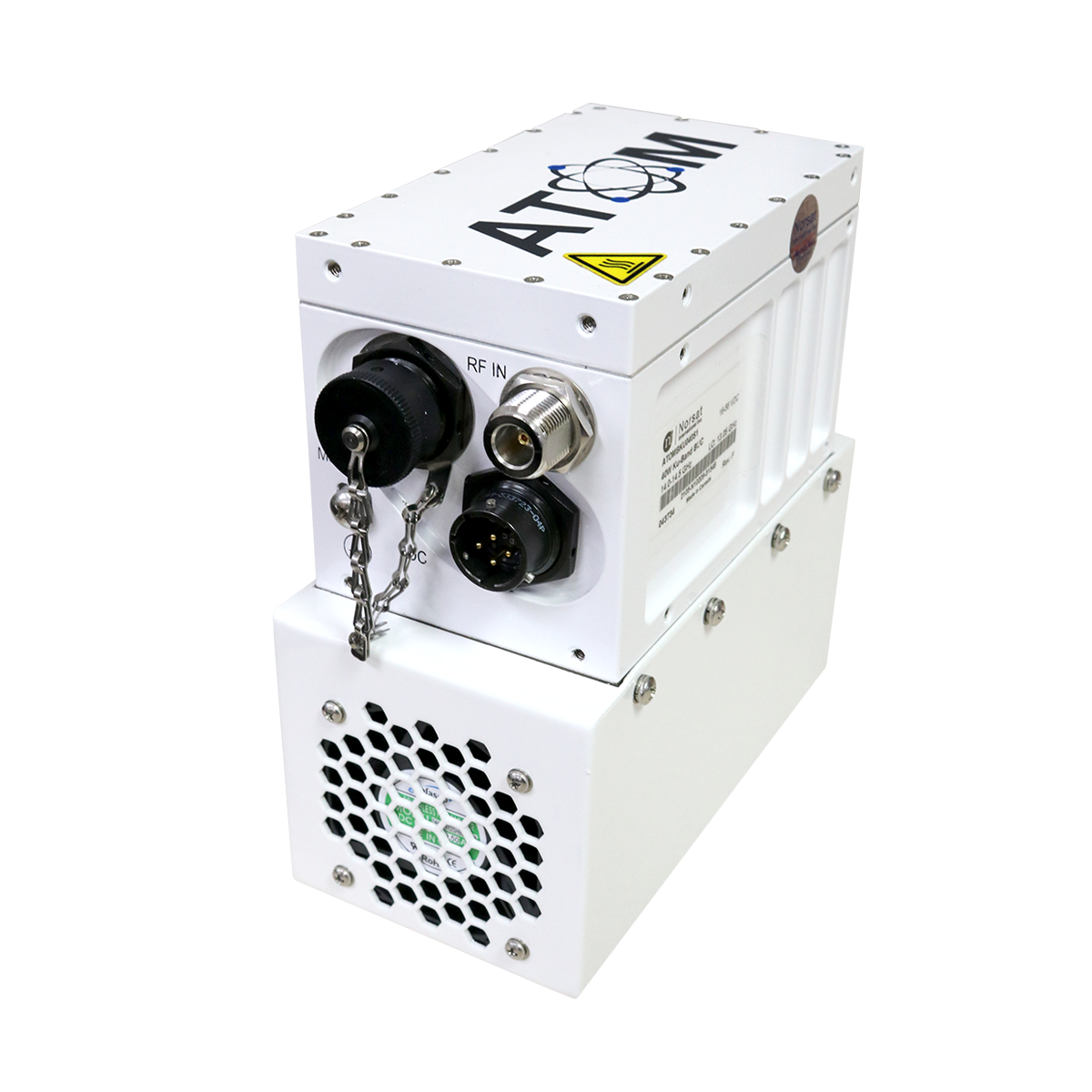

ATOM 40W Ku-Band SSPA

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

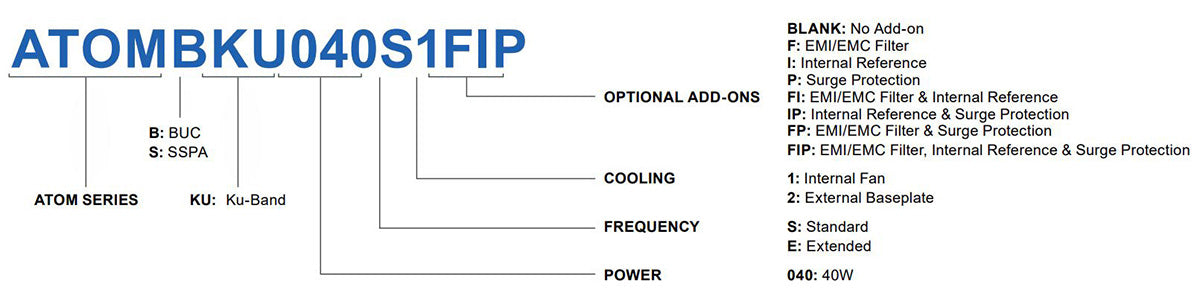

View Family Datasheet

[{"id":41215852937399,"title":"Standard: 14.0 - 14.5 GHz \/ 1: Internal Fan \/ No Add-On","option1":"Standard: 14.0 - 14.5 GHz","option2":"1: Internal Fan","option3":"No Add-On","sku":"ATOMSKU040S1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ATOM 40W Ku-Band SSPA - Standard: 14.0 - 14.5 GHz \/ 1: Internal Fan \/ No Add-On","public_title":"Standard: 14.0 - 14.5 GHz \/ 1: Internal Fan \/ No Add-On","options":["Standard: 14.0 - 14.5 GHz","1: Internal Fan","No Add-On"],"price":1912683,"weight":2500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41215852970167,"title":"Standard: 14.0 - 14.5 GHz \/ 1: Internal Fan \/ F: EMI\/EMC Filter","option1":"Standard: 14.0 - 14.5 GHz","option2":"1: Internal Fan","option3":"F: EMI\/EMC Filter","sku":"ATOMSKU040S1F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ATOM 40W Ku-Band SSPA - Standard: 14.0 - 14.5 GHz \/ 1: Internal Fan \/ F: EMI\/EMC Filter","public_title":"Standard: 14.0 - 14.5 GHz \/ 1: Internal Fan \/ F: EMI\/EMC Filter","options":["Standard: 14.0 - 14.5 GHz","1: Internal Fan","F: EMI\/EMC Filter"],"price":2112683,"weight":2500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41215853035703,"title":"Standard: 14.0 - 14.5 GHz \/ 1: Internal Fan \/ P: Surge Protection","option1":"Standard: 14.0 - 14.5 GHz","option2":"1: Internal Fan","option3":"P: Surge Protection","sku":"ATOMSKU040S1P","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ATOM 40W Ku-Band SSPA - Standard: 14.0 - 14.5 GHz \/ 1: Internal Fan \/ P: Surge Protection","public_title":"Standard: 14.0 - 14.5 GHz \/ 1: Internal Fan \/ P: Surge Protection","options":["Standard: 14.0 - 14.5 GHz","1: Internal Fan","P: Surge Protection"],"price":2062683,"weight":2500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41215853134007,"title":"Standard: 14.0 - 14.5 GHz \/ 1: Internal Fan \/ FP: EMI\/EMC Filter + Surge Protection","option1":"Standard: 14.0 - 14.5 GHz","option2":"1: Internal Fan","option3":"FP: EMI\/EMC Filter + Surge Protection","sku":"ATOMSKU040S1FP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ATOM 40W Ku-Band SSPA - Standard: 14.0 - 14.5 GHz \/ 1: Internal Fan \/ FP: EMI\/EMC Filter + Surge Protection","public_title":"Standard: 14.0 - 14.5 GHz \/ 1: Internal Fan \/ FP: EMI\/EMC Filter + Surge Protection","options":["Standard: 14.0 - 14.5 GHz","1: Internal Fan","FP: EMI\/EMC Filter + Surge Protection"],"price":2262683,"weight":2500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41215853199543,"title":"Standard: 14.0 - 14.5 GHz \/ 2: External Baseplate \/ No Add-On","option1":"Standard: 14.0 - 14.5 GHz","option2":"2: External Baseplate","option3":"No Add-On","sku":"ATOMSKU040S2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ATOM 40W Ku-Band SSPA - Standard: 14.0 - 14.5 GHz \/ 2: External Baseplate \/ No Add-On","public_title":"Standard: 14.0 - 14.5 GHz \/ 2: External Baseplate \/ No Add-On","options":["Standard: 14.0 - 14.5 GHz","2: External Baseplate","No Add-On"],"price":2044883,"weight":2500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41215853232311,"title":"Standard: 14.0 - 14.5 GHz \/ 2: External Baseplate \/ F: EMI\/EMC Filter","option1":"Standard: 14.0 - 14.5 GHz","option2":"2: External Baseplate","option3":"F: EMI\/EMC Filter","sku":"ATOMSKU040S2F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ATOM 40W Ku-Band SSPA - Standard: 14.0 - 14.5 GHz \/ 2: External Baseplate \/ F: EMI\/EMC Filter","public_title":"Standard: 14.0 - 14.5 GHz \/ 2: External Baseplate \/ F: EMI\/EMC Filter","options":["Standard: 14.0 - 14.5 GHz","2: External Baseplate","F: EMI\/EMC Filter"],"price":2244883,"weight":2500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41215853297847,"title":"Standard: 14.0 - 14.5 GHz \/ 2: External Baseplate \/ P: Surge Protection","option1":"Standard: 14.0 - 14.5 GHz","option2":"2: External Baseplate","option3":"P: Surge Protection","sku":"ATOMSKU040S2P","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ATOM 40W Ku-Band SSPA - Standard: 14.0 - 14.5 GHz \/ 2: External Baseplate \/ P: Surge Protection","public_title":"Standard: 14.0 - 14.5 GHz \/ 2: External Baseplate \/ P: Surge Protection","options":["Standard: 14.0 - 14.5 GHz","2: External Baseplate","P: Surge Protection"],"price":2194883,"weight":2500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41215853396151,"title":"Standard: 14.0 - 14.5 GHz \/ 2: External Baseplate \/ FP: EMI\/EMC Filter + Surge Protection","option1":"Standard: 14.0 - 14.5 GHz","option2":"2: External Baseplate","option3":"FP: EMI\/EMC Filter + Surge Protection","sku":"ATOMSKU040S2FP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ATOM 40W Ku-Band SSPA - Standard: 14.0 - 14.5 GHz \/ 2: External Baseplate \/ FP: EMI\/EMC Filter + Surge Protection","public_title":"Standard: 14.0 - 14.5 GHz \/ 2: External Baseplate \/ FP: EMI\/EMC Filter + Surge Protection","options":["Standard: 14.0 - 14.5 GHz","2: External Baseplate","FP: EMI\/EMC Filter + Surge Protection"],"price":2394883,"weight":2500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41215853461687,"title":"Extended: 13.75 - 14.5 GHz \/ 1: Internal Fan \/ No Add-On","option1":"Extended: 13.75 - 14.5 GHz","option2":"1: Internal Fan","option3":"No Add-On","sku":"ATOMSKU040E1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ATOM 40W Ku-Band SSPA - Extended: 13.75 - 14.5 GHz \/ 1: Internal Fan \/ No Add-On","public_title":"Extended: 13.75 - 14.5 GHz \/ 1: Internal Fan \/ No Add-On","options":["Extended: 13.75 - 14.5 GHz","1: Internal Fan","No Add-On"],"price":1912683,"weight":2500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41215853494455,"title":"Extended: 13.75 - 14.5 GHz \/ 1: Internal Fan \/ F: EMI\/EMC Filter","option1":"Extended: 13.75 - 14.5 GHz","option2":"1: Internal Fan","option3":"F: EMI\/EMC Filter","sku":"ATOMSKU040E1F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ATOM 40W Ku-Band SSPA - Extended: 13.75 - 14.5 GHz \/ 1: Internal Fan \/ F: EMI\/EMC Filter","public_title":"Extended: 13.75 - 14.5 GHz \/ 1: Internal Fan \/ F: EMI\/EMC Filter","options":["Extended: 13.75 - 14.5 GHz","1: Internal Fan","F: EMI\/EMC Filter"],"price":2112683,"weight":2500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41215853559991,"title":"Extended: 13.75 - 14.5 GHz \/ 1: Internal Fan \/ P: Surge Protection","option1":"Extended: 13.75 - 14.5 GHz","option2":"1: Internal Fan","option3":"P: Surge Protection","sku":"ATOMSKU040E1P","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ATOM 40W Ku-Band SSPA - Extended: 13.75 - 14.5 GHz \/ 1: Internal Fan \/ P: Surge Protection","public_title":"Extended: 13.75 - 14.5 GHz \/ 1: Internal Fan \/ P: Surge Protection","options":["Extended: 13.75 - 14.5 GHz","1: Internal Fan","P: Surge Protection"],"price":2062683,"weight":2500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41215853658295,"title":"Extended: 13.75 - 14.5 GHz \/ 1: Internal Fan \/ FP: EMI\/EMC Filter + Surge Protection","option1":"Extended: 13.75 - 14.5 GHz","option2":"1: Internal Fan","option3":"FP: EMI\/EMC Filter + Surge Protection","sku":"ATOMSKU040E1FP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ATOM 40W Ku-Band SSPA - Extended: 13.75 - 14.5 GHz \/ 1: Internal Fan \/ FP: EMI\/EMC Filter + Surge Protection","public_title":"Extended: 13.75 - 14.5 GHz \/ 1: Internal Fan \/ FP: EMI\/EMC Filter + Surge Protection","options":["Extended: 13.75 - 14.5 GHz","1: Internal Fan","FP: EMI\/EMC Filter + Surge Protection"],"price":2262683,"weight":2500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41215853723831,"title":"Extended: 13.75 - 14.5 GHz \/ 2: External Baseplate \/ No Add-On","option1":"Extended: 13.75 - 14.5 GHz","option2":"2: External Baseplate","option3":"No Add-On","sku":"ATOMSKU040E2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ATOM 40W Ku-Band SSPA - Extended: 13.75 - 14.5 GHz \/ 2: External Baseplate \/ No Add-On","public_title":"Extended: 13.75 - 14.5 GHz \/ 2: External Baseplate \/ No Add-On","options":["Extended: 13.75 - 14.5 GHz","2: External Baseplate","No Add-On"],"price":2044883,"weight":2500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41215853756599,"title":"Extended: 13.75 - 14.5 GHz \/ 2: External Baseplate \/ F: EMI\/EMC Filter","option1":"Extended: 13.75 - 14.5 GHz","option2":"2: External Baseplate","option3":"F: EMI\/EMC Filter","sku":"ATOMSKU040E2F","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ATOM 40W Ku-Band SSPA - Extended: 13.75 - 14.5 GHz \/ 2: External Baseplate \/ F: EMI\/EMC Filter","public_title":"Extended: 13.75 - 14.5 GHz \/ 2: External Baseplate \/ F: EMI\/EMC Filter","options":["Extended: 13.75 - 14.5 GHz","2: External Baseplate","F: EMI\/EMC Filter"],"price":2244883,"weight":2500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41215853822135,"title":"Extended: 13.75 - 14.5 GHz \/ 2: External Baseplate \/ P: Surge Protection","option1":"Extended: 13.75 - 14.5 GHz","option2":"2: External Baseplate","option3":"P: Surge Protection","sku":"ATOMSKU040E2P","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ATOM 40W Ku-Band SSPA - Extended: 13.75 - 14.5 GHz \/ 2: External Baseplate \/ P: Surge Protection","public_title":"Extended: 13.75 - 14.5 GHz \/ 2: External Baseplate \/ P: Surge Protection","options":["Extended: 13.75 - 14.5 GHz","2: External Baseplate","P: Surge Protection"],"price":2194883,"weight":2500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41215853920439,"title":"Extended: 13.75 - 14.5 GHz \/ 2: External Baseplate \/ FP: EMI\/EMC Filter + Surge Protection","option1":"Extended: 13.75 - 14.5 GHz","option2":"2: External Baseplate","option3":"FP: EMI\/EMC Filter + Surge Protection","sku":"ATOMSKU040E2FP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ATOM 40W Ku-Band SSPA - Extended: 13.75 - 14.5 GHz \/ 2: External Baseplate \/ FP: EMI\/EMC Filter + Surge Protection","public_title":"Extended: 13.75 - 14.5 GHz \/ 2: External Baseplate \/ FP: EMI\/EMC Filter + Surge Protection","options":["Extended: 13.75 - 14.5 GHz","2: External Baseplate","FP: EMI\/EMC Filter + Surge Protection"],"price":2394883,"weight":2500,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

The Norsat ATOM series of solid state power amplifiers (SSPA) are among the smallest, lightest, and most energy efficient transmitters available. The high efficiency of ATOM reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.

KEY SPECIFICATIONS
band	Ku-Band
band type	S: Standard
external ref freq	10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1	950 - 1450 MHz
LO frequency 1	13.05 GHz
output frequency band 1	14.00 - 14.50 GHz
Product Revision	B

RF SPECIFICATIONS
Gain Flatness (over 40MHz)	≤ 3.0 dB p-p
Gain Flatness (over full band)	≤ 8.0 dB p-p
Gain Flatness (over temperature)	≤ 3.0 dB p-p
input power	via power connector
input VSWR	2.0 : 1 max.
Linear Gain	≥ 60 dB
noise power density	-65 dBm/Hz in Tx, -65 dBm/Hz in Rx
output P1dB	46 dBm min.
output power psat	47 dBm min.
output spurious in band	≤ -60 dBc
output spurious out of band P1dB	≤ -55 dBc
output VSWR	2.0 : 1 max.
phase noise 1000kHz offset max	-102 dBc/Hz

ELECTRICAL SPECIFICATIONS
power connector	MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, 58-533723-04P
power consumption psat	305 W max.
power requirements	+18 to +56 V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF output connector	WR-75 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
humidity	100% condensing
IP rating	IP 65
temperature operational	-40°C to +60°C
temperature storage	-50 to +80°C

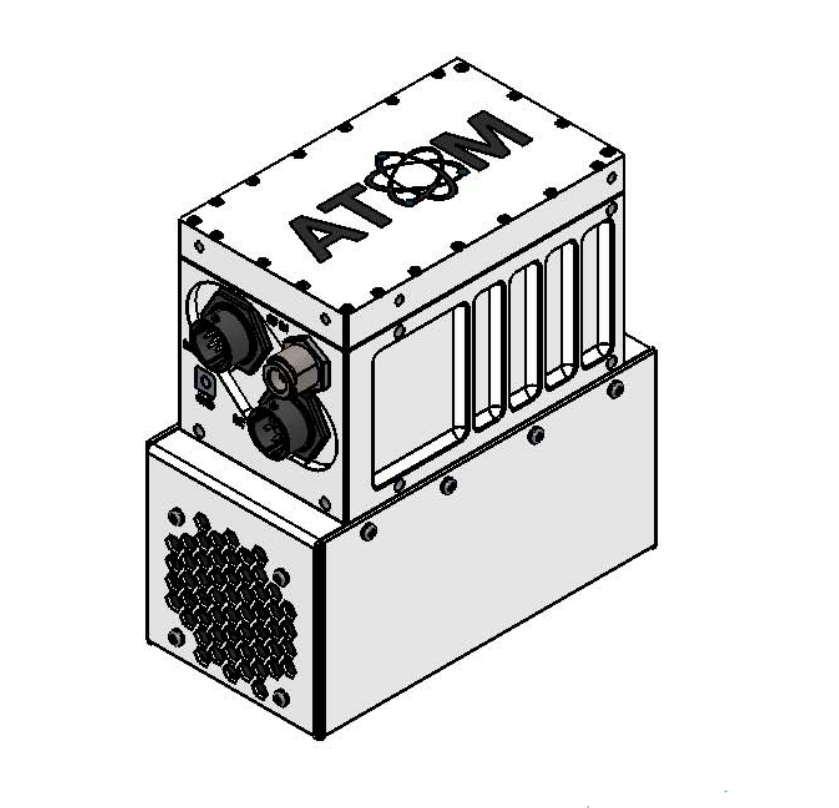

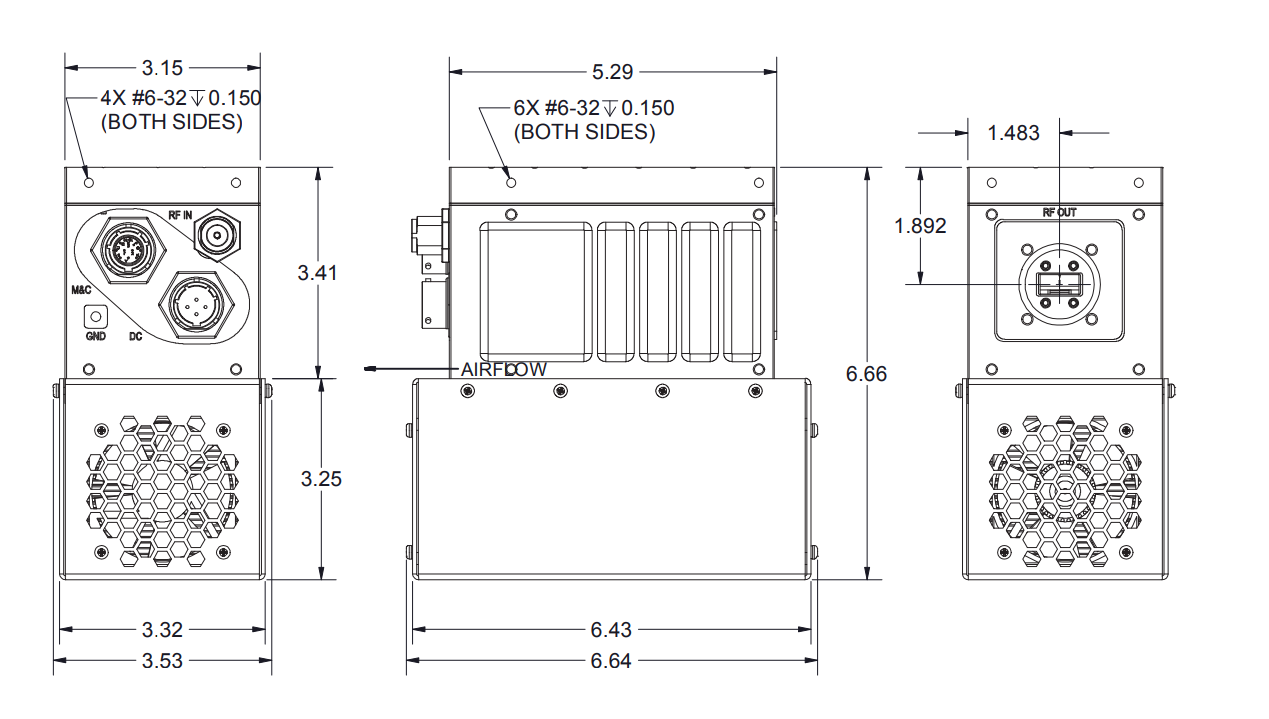

PHYSICAL SPECIFICATIONS
cooling	1: Internal Fan
enclosed accessories	Screws, Gasket, M&C Connector, Power Connector
product height	193 mm
product length	169 mm
product weight	2.5 kg
product width	90 mm

ACCESSORIES
optional configuration add ons	No Add-on
optional m and c cable 10m	CABLEM+C-AT10
optional power supply	PS480-AT1-(NA/UK/EU/IEC/CN/AU)

ACCESSORIES
optional configuration add ons	F: EMI/EMC Filter
optional m and c cable 10m	CABLEM+C-AT10
optional power supply	PS480-AT1-(NA/UK/EU/IEC/CN/AU)

ACCESSORIES
optional configuration add ons	P: Surge Protection
optional m and c cable 10m	CABLEM+C-AT10
optional power supply	PS480-AT1-(NA/UK/EU/IEC/CN/AU)

ACCESSORIES
optional configuration add ons	FP: EMI/EMC Filter & Surge Protection
optional m and c cable 10m	CABLEM+C-AT10
optional power supply	PS480-AT1-(NA/UK/EU/IEC/CN/AU)

PHYSICAL SPECIFICATIONS
cooling	2: External Baseplate
enclosed accessories	Screws, Gasket, M&C Connector, Power Connector
product height	193 mm
product length	169 mm
product weight	2.5 kg
product width	90 mm

INFORMATION
HS Code	8517690000
Country of Origin	Made in Canada
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	-
Unit Package Weight	-
