ATOM 50W Ka-Band SSPA
ATOM 50W Ka-Band SSPA
ATOM 50W Ka-Band SSPA
ATOM 50W Ka-Band SSPA

ATOMSKA050-810152

ATOM 50W Ka-Band SSPA

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
input frequency band 1 29.0 - 30.0 GHz
input frequency band 2 30.0 - 31.0 GHz
output frequency band 1 29.0 - 30.0 GHz
output frequency band 2 30.0 - 31.0 GHz
output power rated 50W
Product Revision D
RF SPECIFICATIONS
gain flatness (over 1Ghz) ≤ 2.5 dB p-p
input VSWR 1.8 : 1 max.
linear gain max 65 dB
linear gain min 55 dB
linear gain typ 60 dB
linear power plin 44 dBm min.
noise power density -65 dBm/Hz in Tx, -156 dBm/Hz in Rx
output power psat 46 dBm min.
output spurious in band ≤ -60 dBc
output VSWR 2.0 : 1 max.
phase noise 0.1kHz offset max -62 dBc/Hz
phase noise 1000kHz offset max -102 dBc/Hz
ELECTRICAL SPECIFICATIONS
power connector Glenair Mighty Mouse 805-005-07MT10-13PB
power requirements +28V DC
INTERFACE SPECIFICATIONS
M&C connector Glenair Mighty Mouse 805-005-07MT9-10SB
RF input connector 2.9mm Female
RF output connector WR-28 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +85°C
temperature storage -51 to +85°C

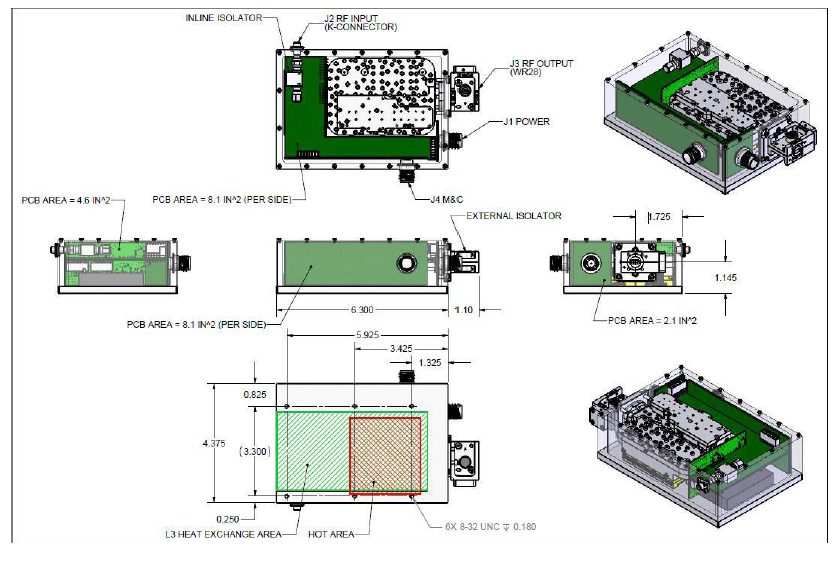

PHYSICAL SPECIFICATIONS
enclosed accessories Screws, Gasket, M&C Connector, Power Connector
product height 2.0 in
product length 6.3 in
product weight 1.588 kg
product width 4.4 in
ACCESSORIES
optional configuration add ons EMI/EMC_filter: MIL-STD-461G
