BPF-100132
Bandpass Filter 1243-1315MHz
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here

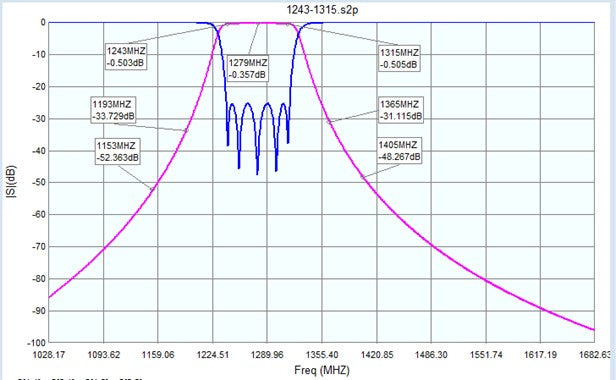

| KEY SPECIFICATIONS | |
|---|---|
| 10MHz Pass insertion loss | 1dB max. |
| BW @ 15dB Attenuation | 86MHz (relative to CF) |
| BW @ 30dB Attenuation | 126MHz (relative to CF) |
| DC Pass | +15 t0 +24V DC @400 mA |
| frequency | 1243MHz - 1315MHz (BW72MHz) |
| Impedance | 50 Ohm |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| Center Frequency | 1279 MHz |
| insertion loss at 1243-1315MHz | 1.0 dB max. |
| insertion loss at CF | 0.5 dB max. |
| VSWR | ≦1.4:1 |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| Barometric pressure | 55 KPa -106KPa |
| humidity | 5% to 95% |
| IP rating | IP67 |
| operating temperature | -30°C to +85°C |
| storage temperature | -40°C to +85°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| Connectors Type | F Female (threaded not slip-on) (Input) 75 Ohm F Male (threaded not slip-on) (Output) 75 Ohm |
| product Dimension | 116*80*42mm |
| product weight | 0.4 kg |
