10W X-Band BUC-100270
10W X-Band BUC-100270
10W X-Band BUC-100270
10W X-Band BUC-100270

BUC-100270

10W X-Band BUC-100270

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band X-Band
external ref freq 10 MHz, -5 to +5 dBm
input frequency band 950 - 1450 MHz
IO frequency band 6.95 GHz
Output frequency band 7.90-8.40 GHz
output power 10W
product family BUC
Product Revision B
RF SPECIFICATIONS
external reference phase noise 1kHz offset max -140 dBc/Hz
gain 65dB typ @0dB attenuation
gain control Δ15dB (50 to 65dB), 1dB step
gain flatness ± 1.0 dB in any 36MHz ± 2.5 dB over full band
gain stability over temp ± 2.5 dB at any const. frequency
input return loss 10dB min
output p1dB +40 dBm min.
output return loss 12dB min
output spurious in band -60 dBc
output spurious out band -50 dBc
phase noise 0.1kHz offset max -60dBc/Hz
phase noise 1kHz offset max -73dBc/Hz
phase noise 10kHz offset max -83dBc/Hz
phase noise 100kHz offset max -93dBc/Hz
ELECTRICAL SPECIFICATIONS
power consumption 90W max
power requirements +22 to +27 VDC supplied through MS connector
INTERFACE SPECIFICATIONS
input interface N-female (50Ω)
m and c connector MS3112E14-12P_(12-pin)
m and c interface Ethernet or RS232 through MS3112E14-12P connector
- Temperature
- LO status
- Output power mute
- Gain control
- Firmware upgradable
output interface CPR-112G
ENVIRONMENTAL SPECIFICATIONS
Humidity 0-95 %
temperature operational -40 to +55°C

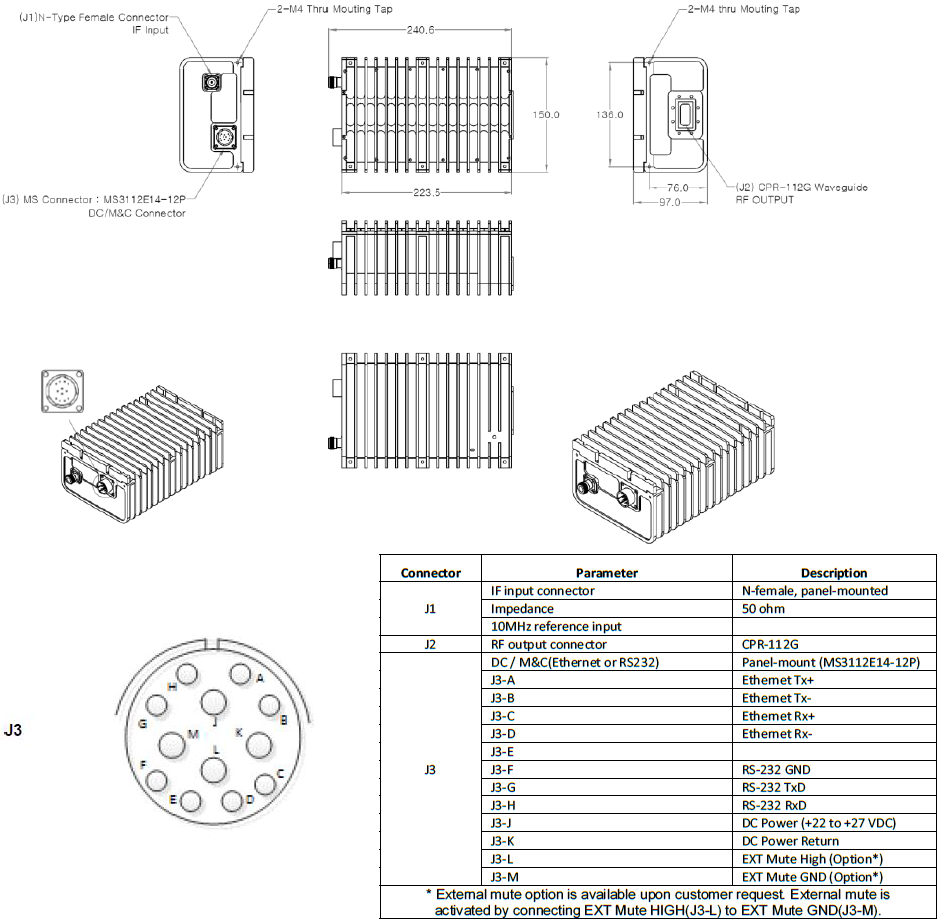

PHYSICAL SPECIFICATIONS
product height 97.0 mm
product length 223.5 mm
product weight 3.8 kg
product width 150.0 mm
