40W Low Ku-Band
40W Low Ku-Band
40W Low Ku-Band
40W Low Ku-Band

BUC-100289

40W Low Ku-Band

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
LO frequency 11.80 GHz
LO stability ± 0.1 ppm
operating IF frequency 950 - 1450 MHz
operating RF frequency 12.75 - 13.25 GHz
output power rated 40W
Product Revision B
RF SPECIFICATIONS
AM/PM conversion 1.0˚/dB max. at 3 dB output backoff
gain flatness ± 0.75 dB max. over 40 MHz
gain variation 500 MHz ± 1.5 dB
gain variation 50 MHz ± 0.5 dB
group delay Ripple 1 nsec point to point max.
imd3 -25 dBc max. two tones, 3 dB back off, 2 signal 5 MHz apart at PLIN
input VSWR 1.5 : 1
linear gain 64 dB (min), 68 dB (typ.)
noise power density -85 dBm/Hz in Tx
-155 dBm/Hz in Rx (10.7 - 11.7 GHz)
output power plin 45 dbm
output power psat 46 dBm
output VSWR 1.3 : 1
phase noise 0.01kHz offset max -55 dBc/Hz
phase noise 0.1kHz offset max -65 dBc/Hz
phase noise 1kHz offset max -75 dBc/Hz
phase noise 10kHz offset max -85 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
receive reject filter Suppression by +60 dB (min)
spectral regrowth -30 dBc at PLIN (QPSK at 1.5x and OQPSK at 1.0x symbol rate offset with 2 dB backoff from rated power)
spurious In-Band: ≤ -60 dBc max.
Out-Band: ≤ -60 dBc max.
ELECTRICAL SPECIFICATIONS
power consumption 190W @ PSAT
155W @ PLIN
power requirements +18 to +55V DC
INTERFACE SPECIFICATIONS
alarms PLL LOCK, HPA, VSWR, MUTE, TX
IF connector N-type (50 Ohm)
m and c interface Ethernet

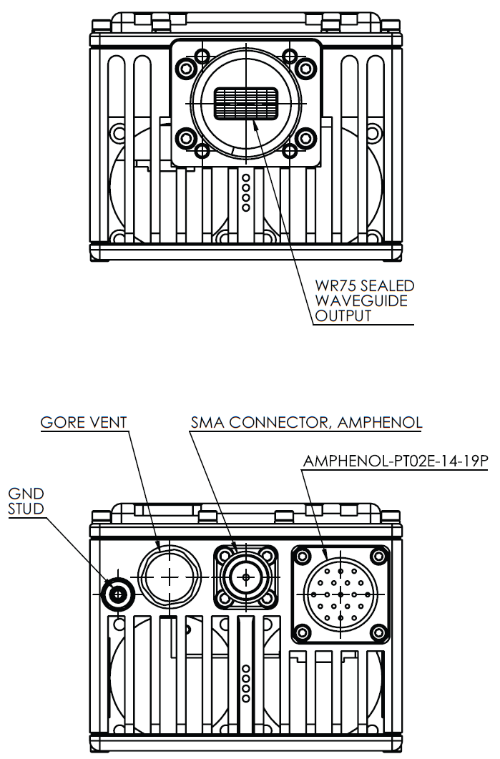

output interface WR-75 grooved
stealth plin operation mode LED Shut-Off | Silenced fans
ENVIRONMENTAL SPECIFICATIONS
altitude 50,000 ft, 15,240 m
enviromental Compliant with MIL-STD810E
humidity 100% condensing
IP rating IP67
shock 20 g peak, 11 msec, 1/2 sine
temperature operational -40°C to +70°C
temperature storage -60°C to + 85°C
vibration MIL-STD810F, Method 514.5
PHYSICAL SPECIFICATIONS
product height 74 mm
product length 152 mm
product weight 1.4 kg
product width 94 mm
