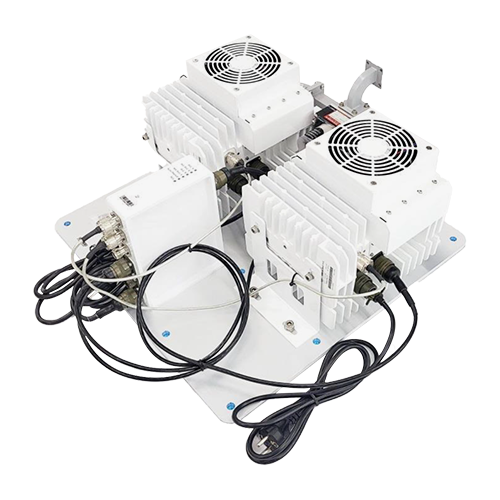

Name: BUC Redundant Switch System (950-2000 MHz) 1:1
Brand: Norsat International Inc.
SKU: RSBUCWMKU
Price: 13867.00 USD
Availability: InStock

BUC Redundant Switch System (950-2000 MHz) 1:1

RSBUCWMKU

BUC Redundant Switch System (950-2000 MHz) 1:1

RSW BUC Series

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":42754221834423,"title":"mini Ku-Band","option1":"mini Ku-Band","option2":null,"option3":null,"sku":"RSBUCWMKU","requires_shipping":true,"taxable":true,"featured_image":{"id":52902457082223,"product_id":7661022118071,"position":3,"created_at":"2024-10-02T19:23:07-07:00","updated_at":"2024-10-02T19:23:07-07:00","alt":null,"width":886,"height":964,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/RSBUCW-miniKu-Diagram.jpg?v=1727922187","variant_ids":[42754221834423]},"available":true,"name":"BUC Redundant Switch System (950-2000 MHz) 1:1 - mini Ku-Band","public_title":"mini Ku-Band","options":["mini Ku-Band"],"price":1386700,"weight":1560,"compare_at_price":1386700,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":45437857628527,"position":3,"preview_image":{"aspect_ratio":0.919,"height":964,"width":886,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/RSBUCW-miniKu-Diagram.jpg?v=1727922187"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754222620855,"title":"Ku-Band","option1":"Ku-Band","option2":null,"option3":null,"sku":"RSBUCWKU","requires_shipping":true,"taxable":true,"featured_image":{"id":52902457213295,"product_id":7661022118071,"position":5,"created_at":"2024-10-02T19:23:14-07:00","updated_at":"2024-10-02T19:23:14-07:00","alt":null,"width":886,"height":964,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/RSBUCW-Ku-Diagram.jpg?v=1727922194","variant_ids":[42754222620855]},"available":true,"name":"BUC Redundant Switch System (950-2000 MHz) 1:1 - Ku-Band","public_title":"Ku-Band","options":["Ku-Band"],"price":1386700,"weight":1560,"compare_at_price":1386700,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":45437857694063,"position":5,"preview_image":{"aspect_ratio":0.919,"height":964,"width":886,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/RSBUCW-Ku-Diagram.jpg?v=1727922194"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42754222653623,"title":"C-Band","option1":"C-Band","option2":null,"option3":null,"sku":"RSBUCWC","requires_shipping":true,"taxable":true,"featured_image":{"id":52902457147759,"product_id":7661022118071,"position":4,"created_at":"2024-10-02T19:23:11-07:00","updated_at":"2024-10-02T19:23:11-07:00","alt":null,"width":886,"height":990,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/RSBUCW-C-Diagram.jpg?v=1727922191","variant_ids":[42754222653623]},"available":true,"name":"BUC Redundant Switch System (950-2000 MHz) 1:1 - C-Band","public_title":"C-Band","options":["C-Band"],"price":1386700,"weight":1560,"compare_at_price":1386700,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":45437857661295,"position":4,"preview_image":{"aspect_ratio":0.895,"height":990,"width":886,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/RSBUCW-C-Diagram.jpg?v=1727922191"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Explore Video Course

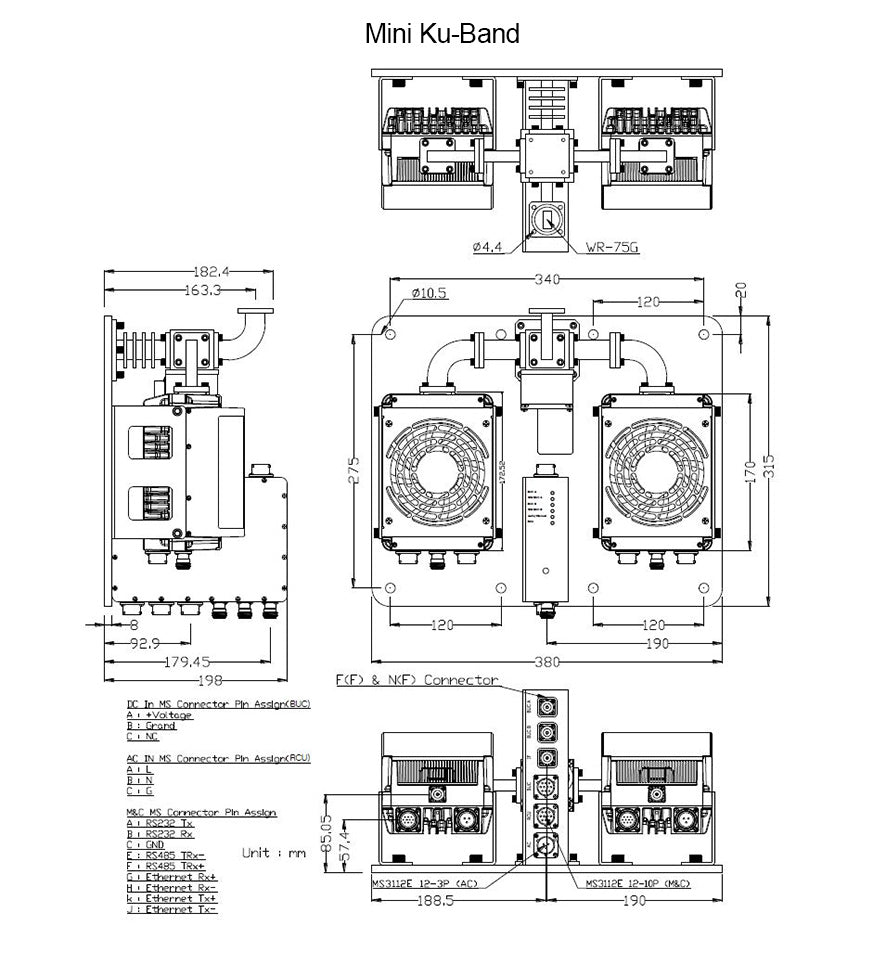

KEY SPECIFICATIONS
available power	16 - 80W
band	mini Ku-Band
input frequency band 1	950 - 2000 MHz
switchover time	1s (max.)
Product Revision	B

RF SPECIFICATIONS
input power	+10 dBm
input VSWR	2 : 1
insertion loss	5 dB max.
isolation	18 dB min.
phase noise 0.1kHz offset max	-65 dBc/Hz

ELECTRICAL SPECIFICATIONS
power	85 – 265 VAC

INTERFACE SPECIFICATIONS
automatic mode	Automatic Switching upon fault status
input connector	F-Connector or N-Connector
M&C interface	RS232, RS485 or Ethernet/SNMP
manual mode	Manual Override via remote PC Interface

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40°C to +65°C
temperature storage	-50 to 85℃

PHYSICAL SPECIFICATIONS
included accessory	Cables for connecting the BUCs and the RCU, an MS connector plug for power, and an MS connector for the M&C connection
mechanical dimensions	380 x 315 x 182.4 mm (mini Ku-Band)
mechanical weight	9 kg
product height	49 mm
product length	190 mm
product weight	1.56 kg
product width	137 mm

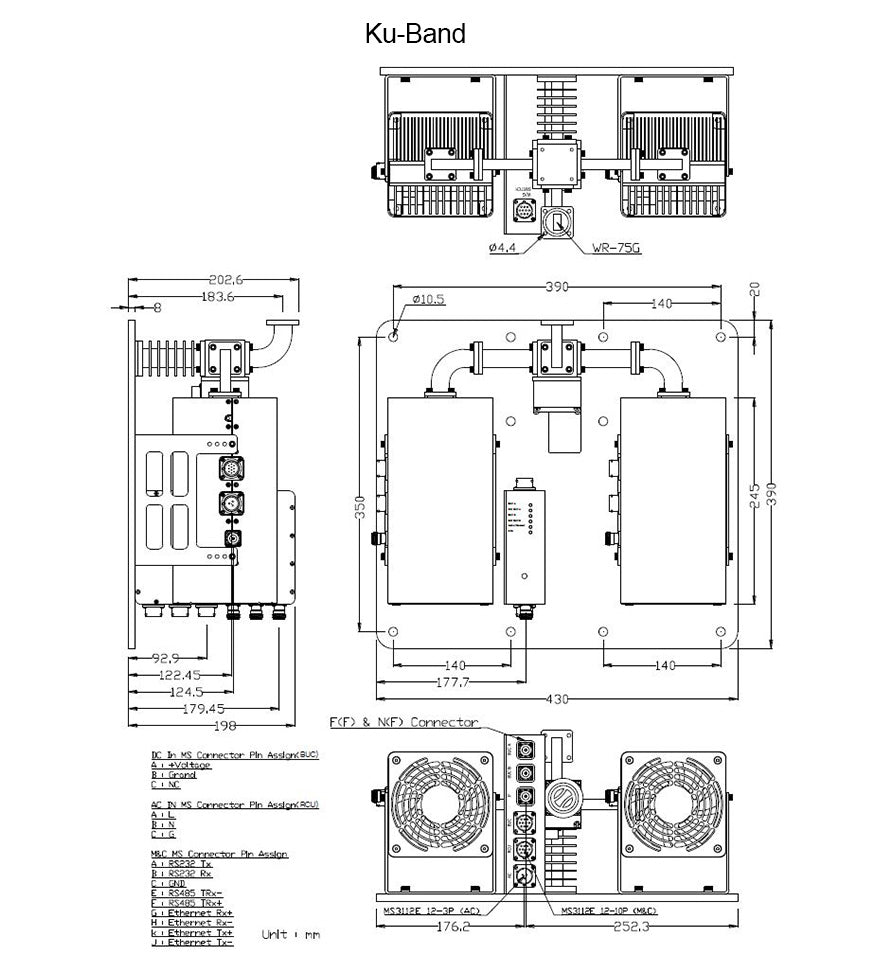

KEY SPECIFICATIONS
available power	16 - 80W
band	Ku-Band
input frequency band 1	950 - 2000 MHz
switchover time	1s (max.)
Product Revision	B

RF SPECIFICATIONS
input power	+10 dBm
input VSWR	2 : 1
insertion loss	5 dB max.
isolation	18 dB min.
output VSWR	1.1 : 1 max.
phase noise 0.1kHz offset max	-65 dBc/Hz
RF waveguide switch insertion loss	0.1 dB max.
RF waveguide switch isolation	60 dB min.

ELECTRICAL SPECIFICATIONS
power	110VAC & 220VAC

INTERFACE SPECIFICATIONS
automatic mode	Automatic Switching upon fault status
input connector	F-Connector or N-Connector
M&C interface	RS232, RS485 or Ethernet/SNMP
manual mode	Manual Override via remote PC Interface

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40°C to +55°C
temperature storage	-40 to 85℃

PHYSICAL SPECIFICATIONS
included accessory	Cables for connecting the BUCs and the RCU, an MS connector plug for power, and an MS connector for the M&C connection
mechanical dimensions	380 X 315 X 198 mm (16/20/25W RCS); 430 X 390 X 202.6 mm (40W RCS)
mechanical weight	9 kg (16/20/25W RCS); 15 kg (40W RCS)
product height	49 mm
product length	190 mm
product weight	1.56 kg
product width	137 mm

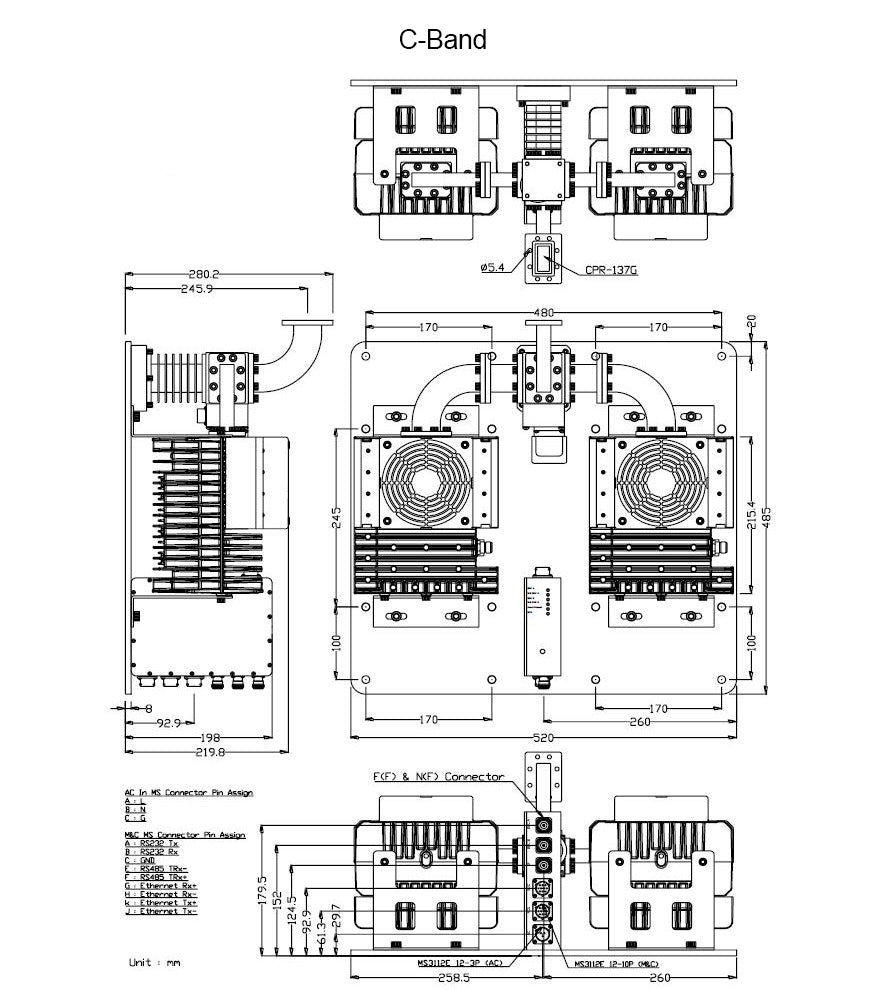

KEY SPECIFICATIONS
available power	20 - 100W
band	C-Band
input frequency band 1	950 - 2000 MHz
switchover time	1s (max.)
Product Revision	B

RF SPECIFICATIONS
input power	+10 dBm
input VSWR	2 : 1
insertion loss	5 dB max.
isolation	18 dB min.
output VSWR	1.1 : 1 max.
phase noise 0.1kHz offset max	-65 dBc/Hz
RF waveguide switch insertion loss	0.1 dB max.
RF waveguide switch isolation	60 dB min.

ELECTRICAL SPECIFICATIONS
power	110VAC & 220VAC

INTERFACE SPECIFICATIONS
automatic mode	Automatic Switching upon fault status
input connector	F-Connector or N-Connector
M&C interface	RS232, RS485 or Ethernet/SNMP
manual mode	Manual Override via remote PC Interface

ENVIRONMENTAL SPECIFICATIONS
temperature operational	-40°C to +55°C
temperature storage	-40 to 85℃

PHYSICAL SPECIFICATIONS
included accessory	Cables for connecting the BUCs and the RCU, an MS connector plug for power, and an MS connector for the M&C connection
mechanical dimensions	520 x 485 x 280.18 mm (C-Band)
mechanical weight	20 kg
product height	49 mm
product length	190 mm
product weight	1.56 kg
product width	137 mm

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	8517690000
Country of Origin	Made in the Republic of Korea
Ex Works	Hong Kong
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	-
Unit Package Weight	-
Total Aluminium Content	1.36 kg
Aluminum Country of Smelt and Cast	KR
Total Aluminium Value	$ 3.4
