BPF-100130

C-Band 5G Bandpass Filter BPF-100130

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band C-Band
input frequency band 1 3.40 - 3.56 GHz
rejection ≥ 60 dB min at 3.6 GHz
Product Revision A

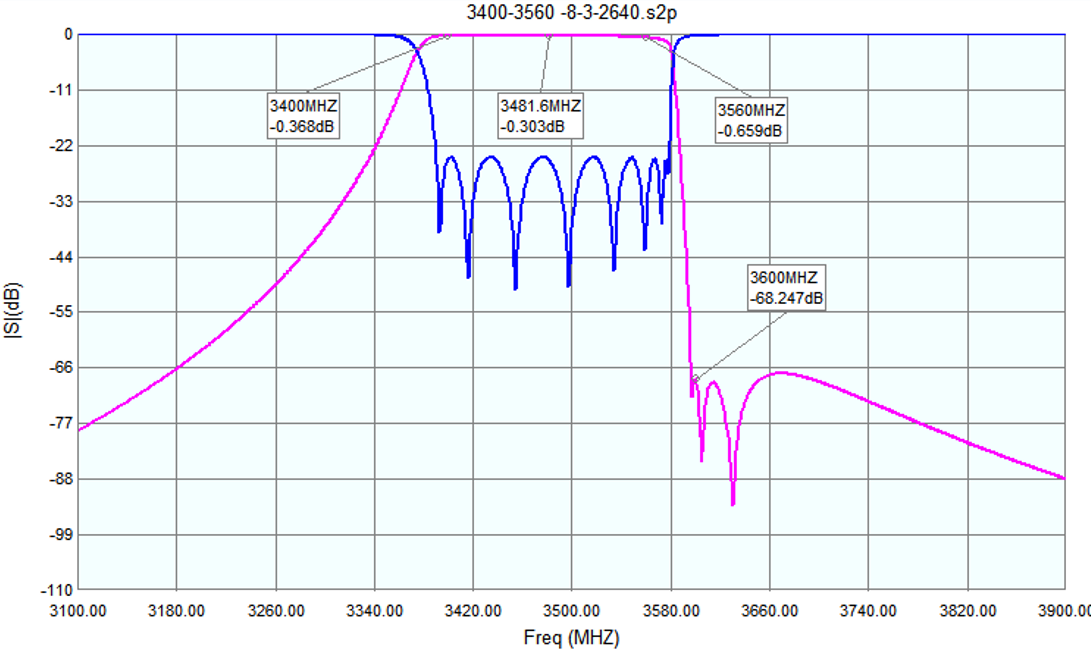

RF SPECIFICATIONS
group delay variation 1 ns/MHz max.
return loss ≥ 15 dB
INTERFACE SPECIFICATIONS
RF input connector CPR-229G
RF output connector CPR-229F
ENVIRONMENTAL SPECIFICATIONS
humidity 5% to 95%
IP rating IP67
operating temperature -20°C to +60°C
storage temperature -40°C to +85°C

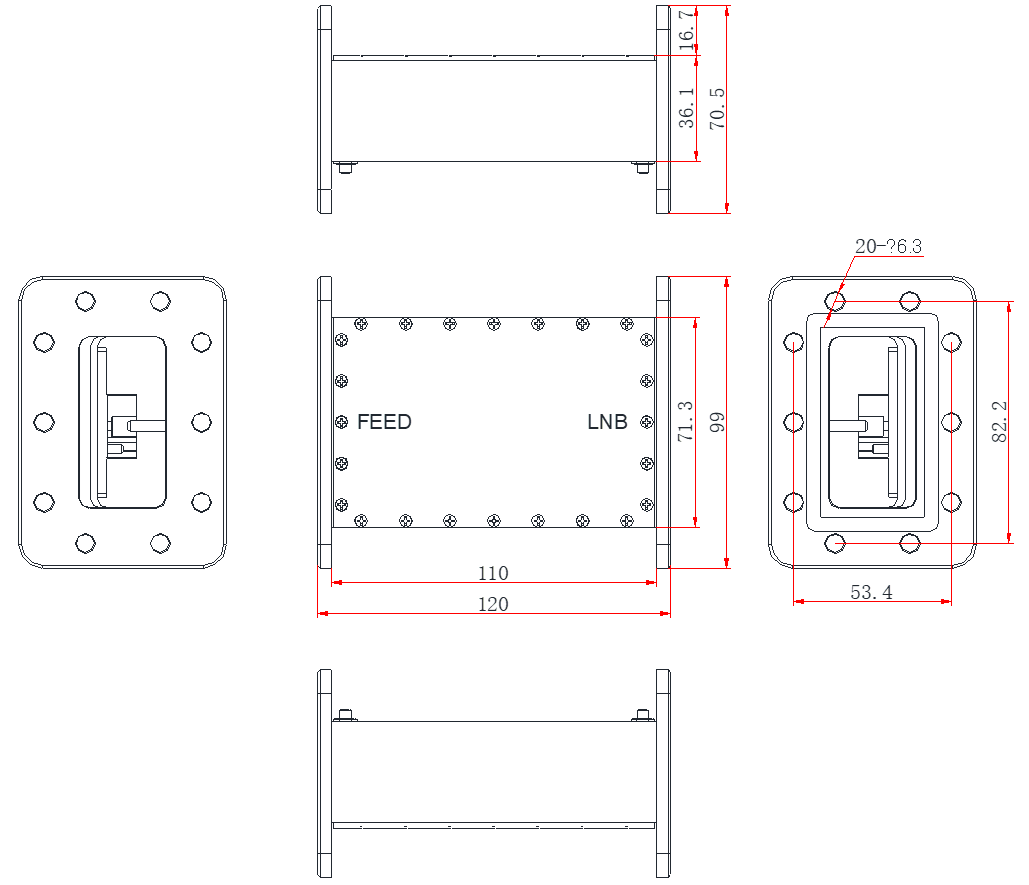

PHYSICAL SPECIFICATIONS
product height 70.5 mm
product length 120 mm
product weight 0.67 kg
product width 99 mm
