BPF-100072

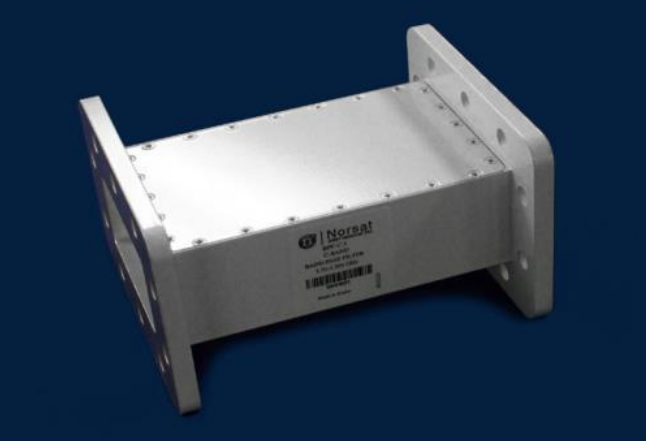

C-Band 5G Bandpass Filter

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



APPLICATIONS
• Rejects terrestrial interference in C-Band (Wimax, Radar and C-Band transmitter and 5G)
• Compact, low weight
• Easily installed between the feed and LNB
• Suitable for use with Norsat’s C-Band LNBs
• Environmentally sealed and moisture resistant (IP67)

KEY SPECIFICATIONS
band C-Band
center frequency 3.960 GHz
input frequency band 1 3.72 - 4.20 GHz
Product Revision C
RF SPECIFICATIONS
group delay variation within ±0\.5 MHz 3 ns max.
insertion loss 1.2 dB max.
rejection 60 dB @ 3400 - 3500 MHz
60 dB @ 3500 - 3694 MHz
25 dB @ 4250 - 4350 MHz
30 dB @ 4350 - 4400 MHz
35 dB @ 4400 - 4800 MHz
60 dB @ 4800 - 4900 MHz
return loss 20 dB min.
VSWR 1.4 : 1 max.
INTERFACE SPECIFICATIONS
RF input connector CPR-229G
RF output connector CPR-229F
ENVIRONMENTAL SPECIFICATIONS
barometric pressure 55 KPa - 106 KPa
IP rating IP67
relative humidity 5% - 95%
temperature operational -40°C to +60°C
temperature storage -40°C to +85°C

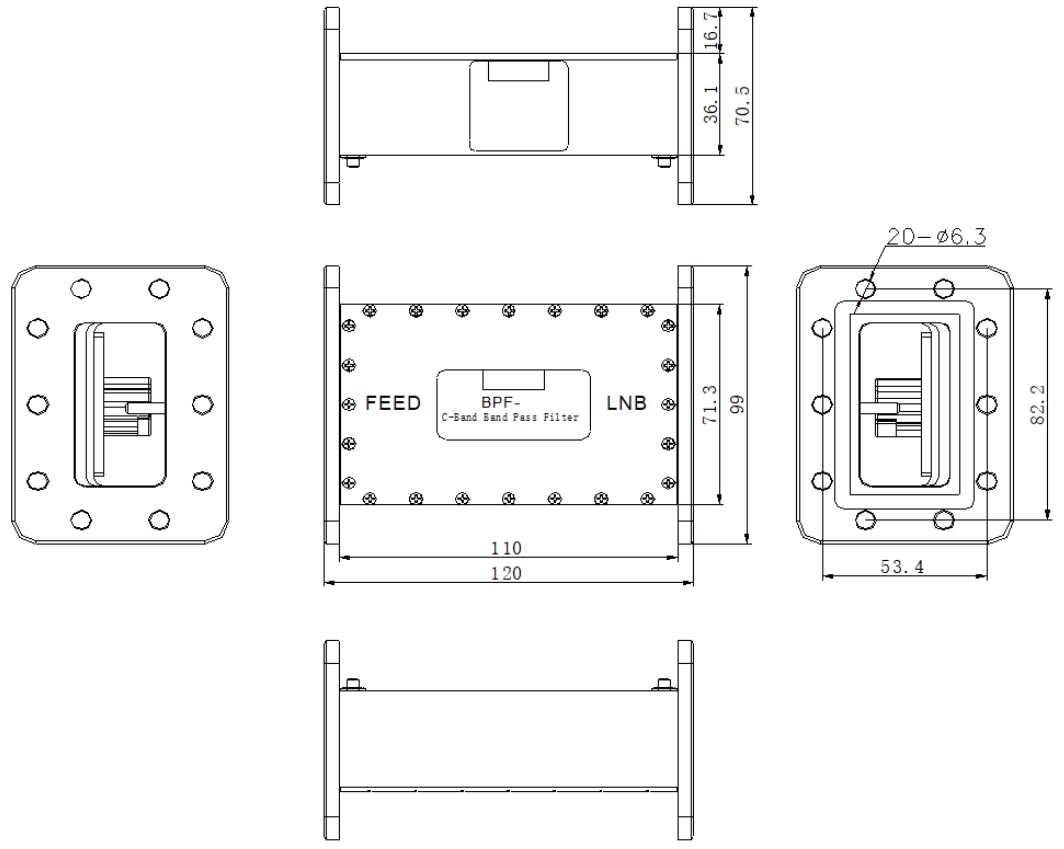

PHYSICAL SPECIFICATIONS
packaging 1 pc in box
product height 70.5 mm
product length 120.0 mm
product weight 0.7 kg
product width 90.0 mm
