Name: C-Band 5G Bandpass Filter
Brand: Norsat International Inc.
SKU: BPF-CN-1
Price: 530.00 USD
Availability: InStock

BPF-CN-1

C-Band 5G Bandpass Filter

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

View Family Datasheet

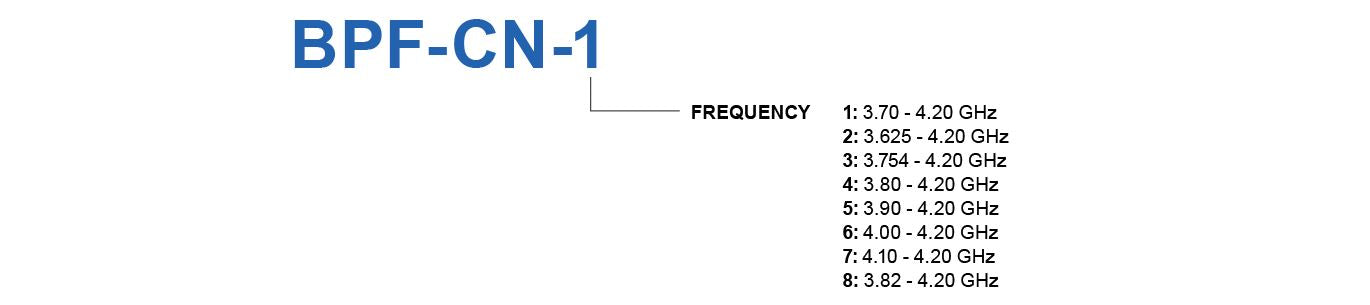

[{"id":51702560325999,"title":"1: 3.70 - 4.20 GHz","option1":"1: 3.70 - 4.20 GHz","option2":null,"option3":null,"sku":"BPF-CN-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"C-Band 5G Bandpass Filter - 1: 3.70 - 4.20 GHz","public_title":"1: 3.70 - 4.20 GHz","options":["1: 3.70 - 4.20 GHz"],"price":53000,"weight":0,"compare_at_price":53000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51702560358767,"title":"2: 3.625 - 4.20 GHz","option1":"2: 3.625 - 4.20 GHz","option2":null,"option3":null,"sku":"BPF-CN-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"C-Band 5G Bandpass Filter - 2: 3.625 - 4.20 GHz","public_title":"2: 3.625 - 4.20 GHz","options":["2: 3.625 - 4.20 GHz"],"price":53000,"weight":0,"compare_at_price":53000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51702560391535,"title":"3: 3.75 - 4.20 GHz","option1":"3: 3.75 - 4.20 GHz","option2":null,"option3":null,"sku":"BPF-CN-3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"C-Band 5G Bandpass Filter - 3: 3.75 - 4.20 GHz","public_title":"3: 3.75 - 4.20 GHz","options":["3: 3.75 - 4.20 GHz"],"price":53000,"weight":0,"compare_at_price":53000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51702560424303,"title":"4: 3.80 - 4.20 GHz","option1":"4: 3.80 - 4.20 GHz","option2":null,"option3":null,"sku":"BPF-CN-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"C-Band 5G Bandpass Filter - 4: 3.80 - 4.20 GHz","public_title":"4: 3.80 - 4.20 GHz","options":["4: 3.80 - 4.20 GHz"],"price":53000,"weight":0,"compare_at_price":53000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51702560457071,"title":"5: 3.90 - 4.20 GHz","option1":"5: 3.90 - 4.20 GHz","option2":null,"option3":null,"sku":"BPF-CN-5","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"C-Band 5G Bandpass Filter - 5: 3.90 - 4.20 GHz","public_title":"5: 3.90 - 4.20 GHz","options":["5: 3.90 - 4.20 GHz"],"price":53000,"weight":0,"compare_at_price":53000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51702560489839,"title":"6: 4.00 - 4.20 GHz","option1":"6: 4.00 - 4.20 GHz","option2":null,"option3":null,"sku":"BPF-CN-6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"C-Band 5G Bandpass Filter - 6: 4.00 - 4.20 GHz","public_title":"6: 4.00 - 4.20 GHz","options":["6: 4.00 - 4.20 GHz"],"price":53000,"weight":0,"compare_at_price":53000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51702560522607,"title":"7: 4.10 - 4.20 GHz","option1":"7: 4.10 - 4.20 GHz","option2":null,"option3":null,"sku":"BPF-CN-7","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"C-Band 5G Bandpass Filter - 7: 4.10 - 4.20 GHz","public_title":"7: 4.10 - 4.20 GHz","options":["7: 4.10 - 4.20 GHz"],"price":53000,"weight":0,"compare_at_price":53000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51702560555375,"title":"8: 3.82 - 4.20 GHz","option1":"8: 3.82 - 4.20 GHz","option2":null,"option3":null,"sku":"BPF-CN-8","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"C-Band 5G Bandpass Filter - 8: 3.82 - 4.20 GHz","public_title":"8: 3.82 - 4.20 GHz","options":["8: 3.82 - 4.20 GHz"],"price":53000,"weight":0,"compare_at_price":53000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Norsat’s band pass filters reject terrestrial interference in C-Band and can be easily installed between the feed and an LNB. It is suitable for use with Norsat’s existing C-Band LNBs and is environmentally sealed and moisture resistant. BPF / BPF-C Series.

KEY SPECIFICATIONS
band	C-Band
group delay variation within 0.5MHz	0.6 nsec
input frequency band 1	3.70 - 4.20 GHz

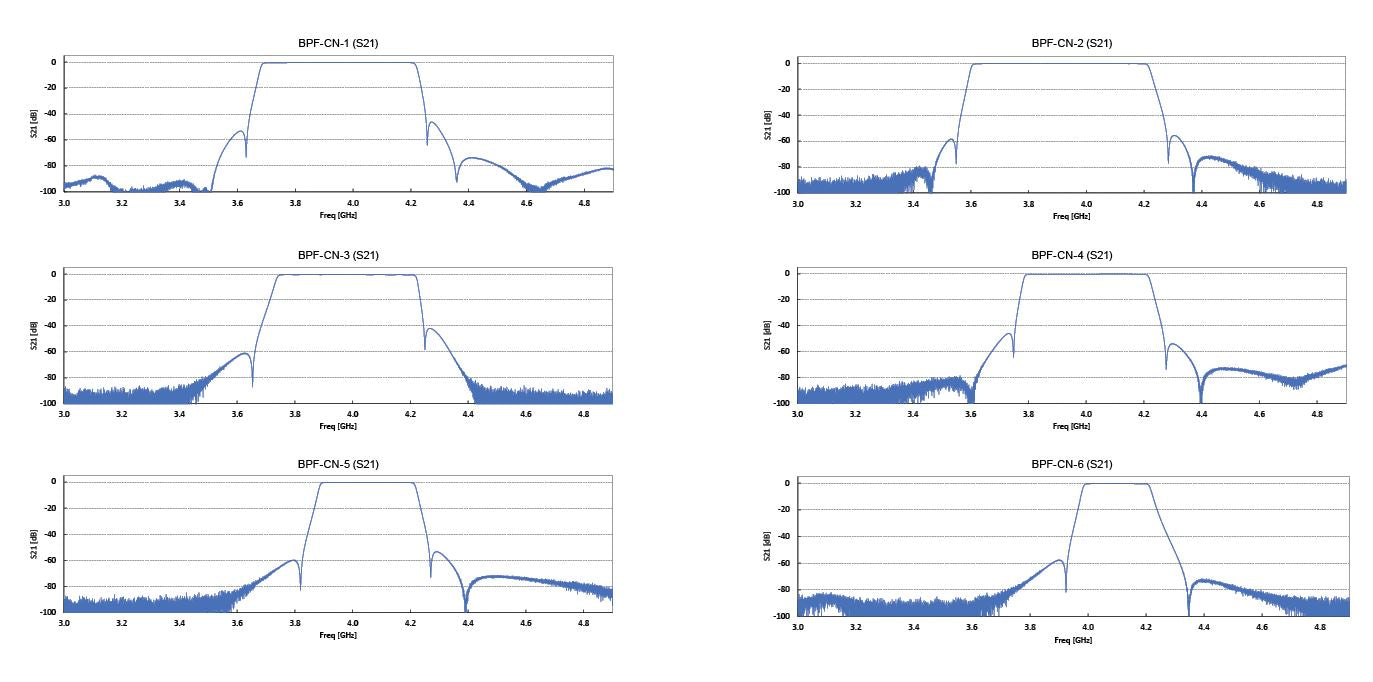

rejection	25 dB min at 3.650 GHz and 4.250 GHz; 60 dB min at 3.550 GHz and 4.350 GHz; 70 dB min at 3.500 GHz and 4.400 GHz
Product Revision	A

RF SPECIFICATIONS
VSWR	1.4 : 1 max.

INTERFACE SPECIFICATIONS
RF input connector	CPR 229G waveguide grooved
RF output connector	CPR-229F

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67

PHYSICAL SPECIFICATIONS
product height	70 mm
product length	120 mm
product weight	0.65 kg
product width	100 mm

INFORMATION
HS Code	8517690000
Country of Origin	Made in China
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	220 mm x 140 mm x 120 mm
Unit Package Weight	1.02 kg
Aluminium Content	0.607 Kg
Aluminium COO	-
Aluminium Total Value	$ 1.5175
