Name: C-Band 5G Rejection Bandpass Filter
Brand: Norsat International Inc.
SKU: BPF-C-1
Price: 532.00 USD
Availability: InStock

BPF-C-1

C-Band 5G Rejection Bandpass Filter

Bandpass Filter

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

View Family Datasheet

[{"id":51702567141743,"title":"1: 3.70 - 4.20 GHz","option1":"1: 3.70 - 4.20 GHz","option2":null,"option3":null,"sku":"BPF-C-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"C-Band 5G Rejection Bandpass Filter - 1: 3.70 - 4.20 GHz","public_title":"1: 3.70 - 4.20 GHz","options":["1: 3.70 - 4.20 GHz"],"price":53200,"weight":1020,"compare_at_price":53200,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51702567174511,"title":"2: 3.625 - 4.20 GHz","option1":"2: 3.625 - 4.20 GHz","option2":null,"option3":null,"sku":"BPF-C-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"C-Band 5G Rejection Bandpass Filter - 2: 3.625 - 4.20 GHz","public_title":"2: 3.625 - 4.20 GHz","options":["2: 3.625 - 4.20 GHz"],"price":53200,"weight":1020,"compare_at_price":53200,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51702567207279,"title":"3: 3.754 - 4.20 GHz","option1":"3: 3.754 - 4.20 GHz","option2":null,"option3":null,"sku":"BPF-C-3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"C-Band 5G Rejection Bandpass Filter - 3: 3.754 - 4.20 GHz","public_title":"3: 3.754 - 4.20 GHz","options":["3: 3.754 - 4.20 GHz"],"price":53200,"weight":1020,"compare_at_price":53200,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51702567240047,"title":"4: 3.80 - 4.20 GHz","option1":"4: 3.80 - 4.20 GHz","option2":null,"option3":null,"sku":"BPF-C-4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"C-Band 5G Rejection Bandpass Filter - 4: 3.80 - 4.20 GHz","public_title":"4: 3.80 - 4.20 GHz","options":["4: 3.80 - 4.20 GHz"],"price":53200,"weight":1020,"compare_at_price":53200,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51702567272815,"title":"5: 3.90 - 4.20 GHz","option1":"5: 3.90 - 4.20 GHz","option2":null,"option3":null,"sku":"BPF-C-5","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"C-Band 5G Rejection Bandpass Filter - 5: 3.90 - 4.20 GHz","public_title":"5: 3.90 - 4.20 GHz","options":["5: 3.90 - 4.20 GHz"],"price":53200,"weight":1020,"compare_at_price":53200,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51702567305583,"title":"6: 4.00 - 4.20 GHz","option1":"6: 4.00 - 4.20 GHz","option2":null,"option3":null,"sku":"BPF-C-6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"C-Band 5G Rejection Bandpass Filter - 6: 4.00 - 4.20 GHz","public_title":"6: 4.00 - 4.20 GHz","options":["6: 4.00 - 4.20 GHz"],"price":53200,"weight":1020,"compare_at_price":53200,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51702567338351,"title":"7: 4.10 - 4.20 GHz","option1":"7: 4.10 - 4.20 GHz","option2":null,"option3":null,"sku":"BPF-C-7","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"C-Band 5G Rejection Bandpass Filter - 7: 4.10 - 4.20 GHz","public_title":"7: 4.10 - 4.20 GHz","options":["7: 4.10 - 4.20 GHz"],"price":53200,"weight":1020,"compare_at_price":53200,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":51702567371119,"title":"8: 3.82 - 4.20 GHz","option1":"8: 3.82 - 4.20 GHz","option2":null,"option3":null,"sku":"BPF-C-8","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"C-Band 5G Rejection Bandpass Filter - 8: 3.82 - 4.20 GHz","public_title":"8: 3.82 - 4.20 GHz","options":["8: 3.82 - 4.20 GHz"],"price":53200,"weight":1020,"compare_at_price":53200,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

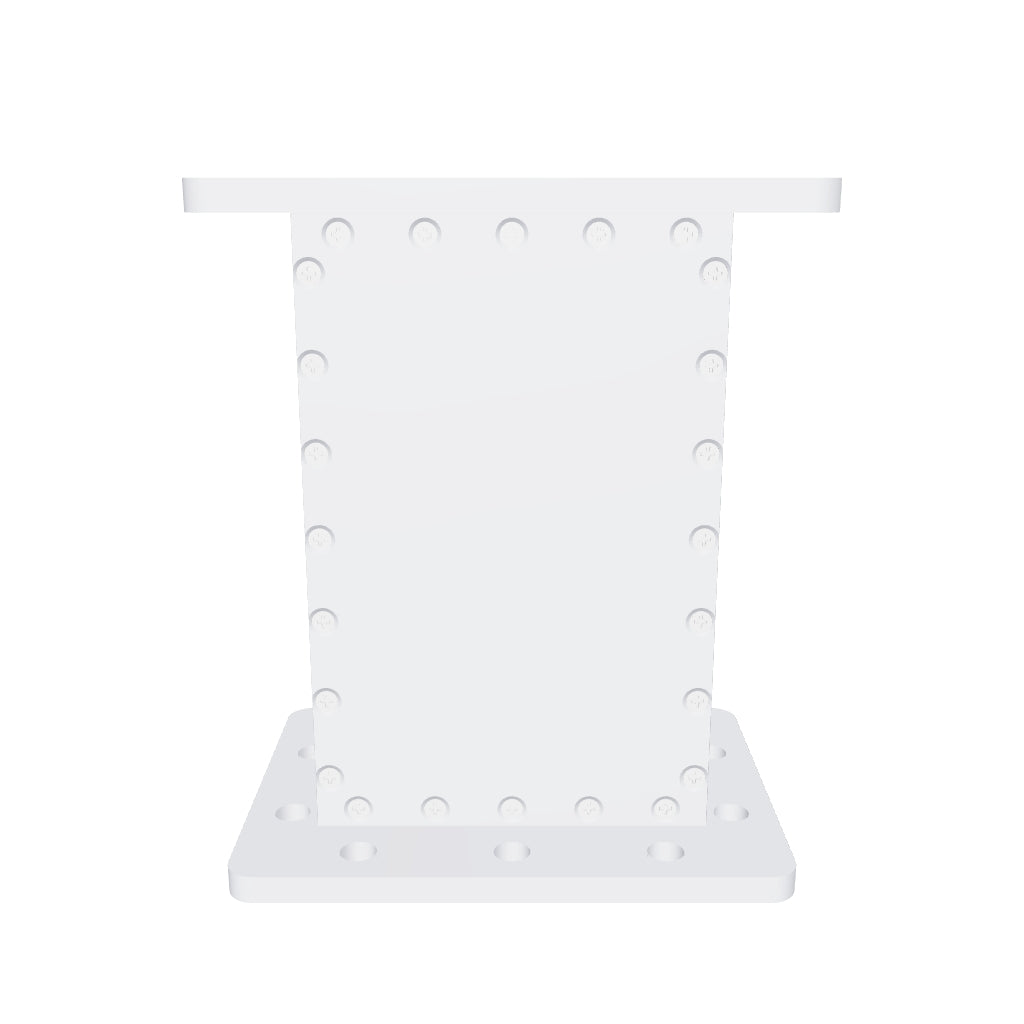

Norsat’s band pass filters reject terrestrial interference in C-Band and can be easily installed between the feed and an LNB. It is suitable for use with Norsat’s existing C-Band LNBs and is environmentally sealed and moisture resistant (IP66). BPF / BPF-C Series.

KEY SPECIFICATIONS
band	C-Band
group delay variation within 0.5MHz	0.6 nsec
input frequency band 1	3.70 - 4.20 GHz
rejection	25 dB min at 3.650 GHz and 4.250 GHz; 60 dB min at 3.550 GHz and 4.350 GHz; 70 dB min at 3.500 GHz and 4.400 GHz
Product Revision	B

RF SPECIFICATIONS
VSWR	1.4 : 1 max.

INTERFACE SPECIFICATIONS
RF input connector	CPR 229G waveguide grooved
RF output connector	CPR-229F

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67

PHYSICAL SPECIFICATIONS
product height	70 mm
product length	120 mm
product weight	0.65 kg
product width	100 mm

INFORMATION
HS Code	8517690000
Country of Origin	Made in Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	220 x 140 x 120 mm
Unit Package Weight	1.02 kg
Total Aluminium Content	0.625 kg
Aluminum Country of Smelt and Cast	KR
Total Aluminium Value	$ 1.5625
