C-Band 5G LNB and Band Pass Filter
C-Band 5G LNB and Band Pass Filter

3000F-BPF-1

C-Band 5G LNB and Band Pass Filter

3000-BPF Series

Regular price MSRP: $1,316.00
/
Quantity Available: 201
Lead Time: In Stock

(Scroll to see specifications and documents.)


Only 201 items in stock!

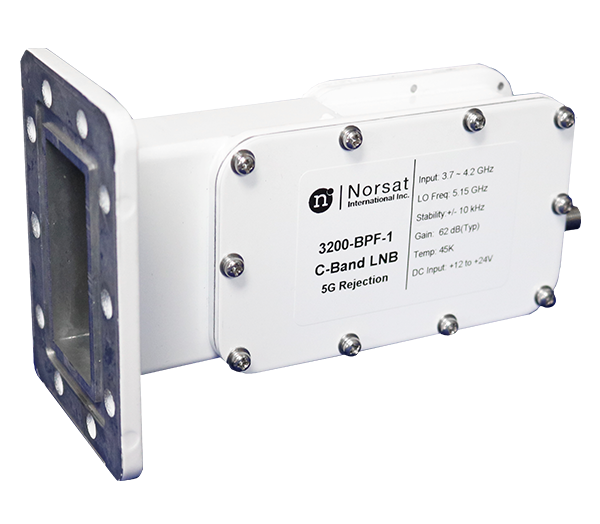

Norsat’s Low Noise Block downconverter plus Band Pass Filter provide signal reception for satellite communications while rejecting terrestrial interference in C-Band. We offer premium performance and reliability in the smallest form factor possible. Backed by a 3 year warranty and over forty years of experience as the industry’s leading provider of high performance microwave components. 3000-BPF Series.

KEY SPECIFICATIONS
band C-Band
input frequency band 1 C-Band: 3.70 - 4.20 GHz
lo stability ± 2 kHz max.
lo type PLL
noise figure 37K typ.
output frequency 1 L-Band: 950 - 1450 MHz
product family 3000-BPF Series
rejection range < 3.6 GHz and > 4.8 GHz
RF SPECIFICATIONS
conversion gain 60 dB typ., 55 dB min., 70 dB max.
input VSWR 2.2 : 1
lo frequency 1 5.15 GHz
output VSWR 2.5 : 1
ELECTRICAL SPECIFICATIONS
current drain 400 mA
power requirements 12 - 24 V
INTERFACE SPECIFICATIONS
RF input connector CPR 229G waveguide grooved
RF output connector F-75 Ohm
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C
temperature storage -50 to +70°C
PHYSICAL SPECIFICATIONS

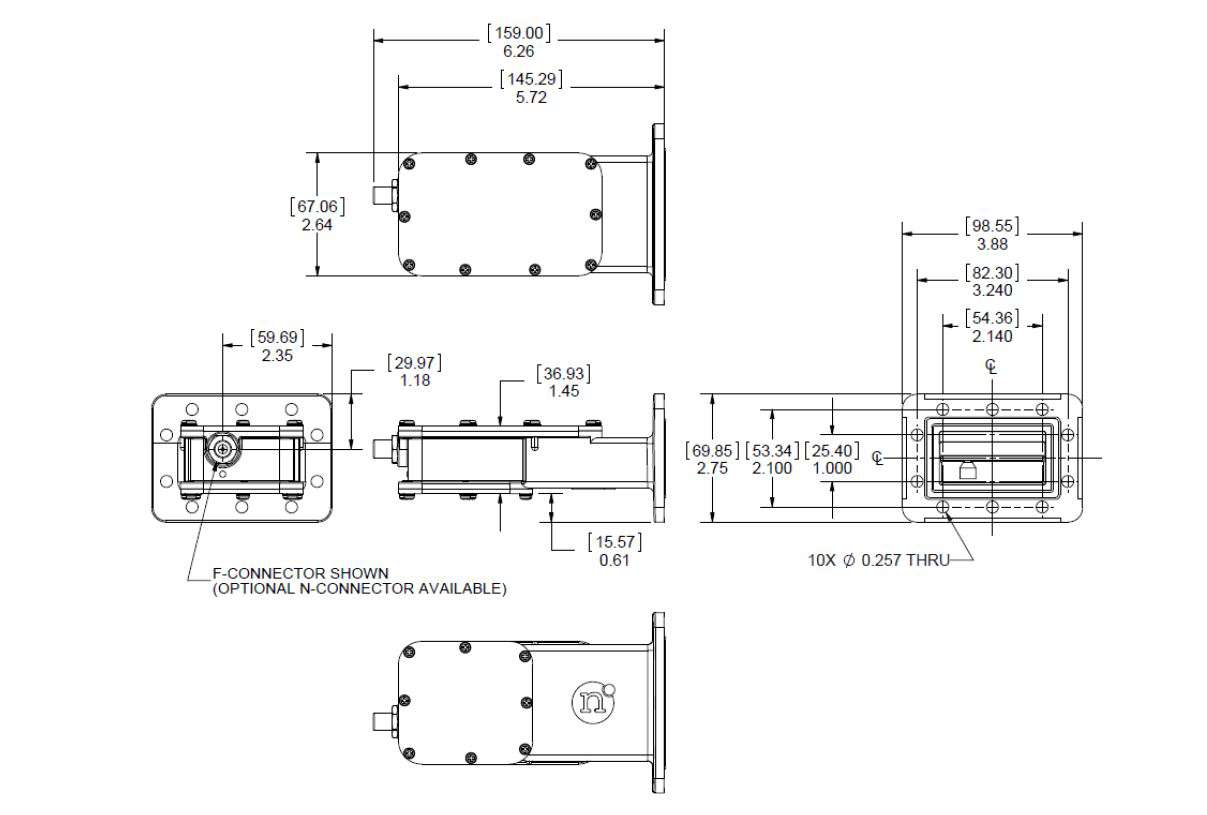

dimensions (LxWxH) 159 x 98.5 x 70 mm
