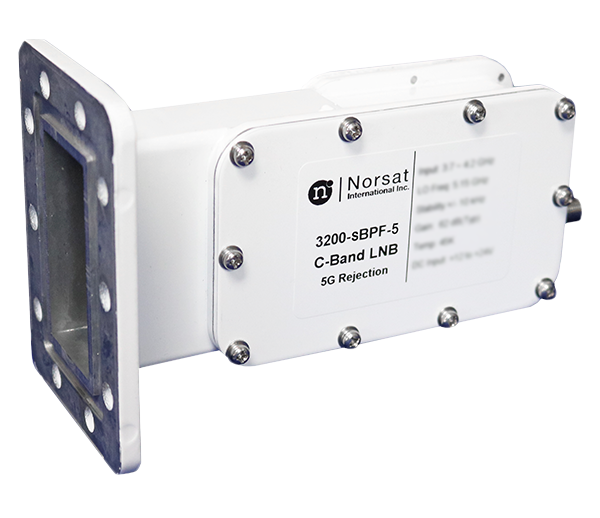

Norsat’s Low Noise Block downconverter plus Switching Band Pass Filter provide signal reception for satellite communications while rejecting terrestrial interference in C-Band. We offer premium performance and reliability in the smallest form factor possible. Backed by a 3 year warranty and over forty years of experience as the industry’s leading provider of high performance microwave components. 3200-sBPF Series.

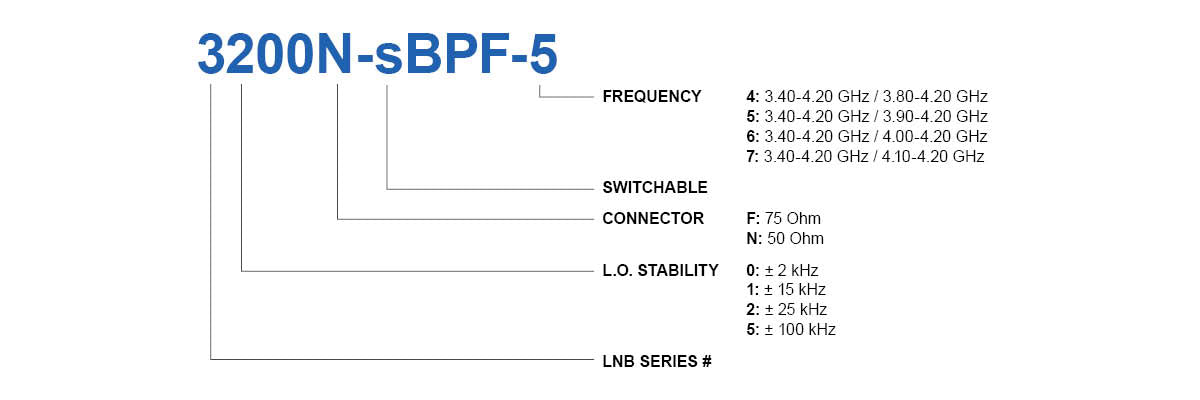

KEY SPECIFICATIONS
band C-Band
input frequency band 1 C-Band: 3.40 - 4.20 GHz
input frequency band 2 C-Band: 3.80 - 4.20 GHz
L.O. stability +/- 2 kHz max.
L.O. type PLL
noise figure 37 K typ.
output frequency 1 L-Band: 950 - 1750 MHz
output frequency 2 L-Band: 950 - 1150 MHz
product family 3000-sBPF Series
RF SPECIFICATIONS
conversion gain 60 dB typ., 55 dB min., 70 dB max.
Gain Flatness (over full band) ≤ 6 dB p-p max.
input VSWR 2.2 : 1 max.
L.O. frequency 1 5.15 GHz
L.O. frequency 2 5.15 GHz
output P1dB + 9 dBm min.
output VSWR 1.9 : 1 max.
phase noise 100khz offset -95 dBc/Hz
phase noise 10khz offset -85 dBc/Hz
phase noise 1khz offset -80 dBc/Hz
ELECTRICAL SPECIFICATIONS
current drain 400 mA
input voltage Band 1: 13V/ Band 2: 18V
power requirements 12 - 24 V
INTERFACE SPECIFICATIONS
RF input connector WR-229 waveguide grooved
RF output connector F-75 Ohm
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C
temperature storage -50 to +70°C
Weight 500 g (17.6 oz)
PHYSICAL SPECIFICATIONS

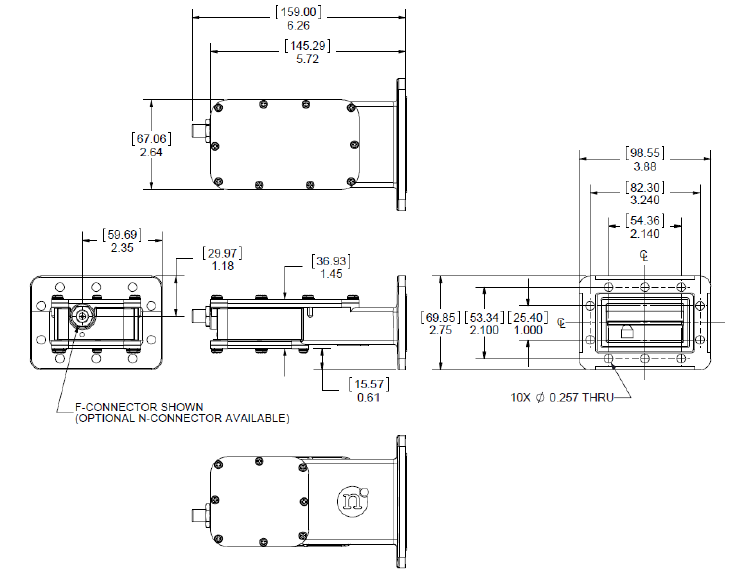

dimensions (LxWxH) 159 x 98.5 x 70 mm
