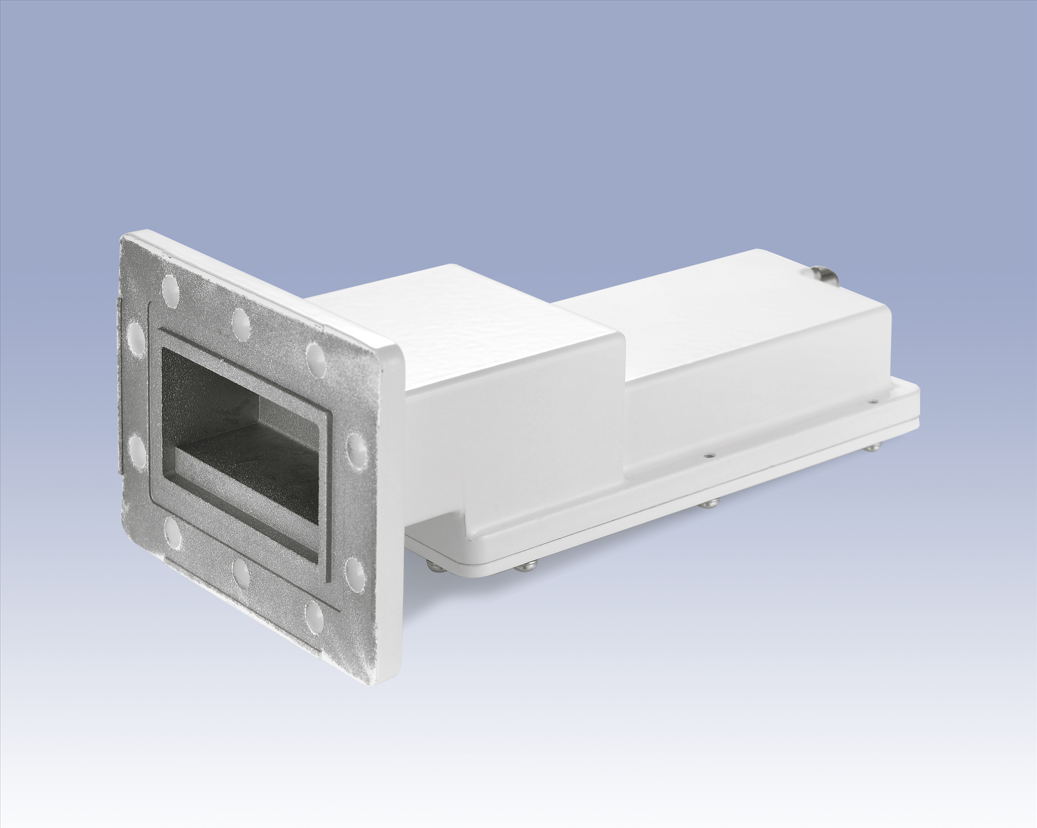

LNB-100243

C-Band 5G Rejection LNB and Band Pass Filter

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 97 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band C-Band
Ext. input freq & power

10 MHz, -5 to +5 dBm
External 10 MHz Port IF output connector
input frequency band 1 3.80 - 4.20 GHz
LO frequency 1 5.15 GHz
LO stability Depends on external reference
LO type PLL
noise figure max 30K
noise figure typ 25K
number of onboard LOs Single-Band
output frequency band 1 950 - 1350 MHz
rejection range

15dB min. @Pass band -50MHz

40dB min. @Pass band -100MHz

55dB min. @Pass band -200MHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (over full band) ≤ 4 dB p-p max.
input VSWR 2.5 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.5 : 1 max.
phase noise 1kHz offset max -73 dBc/Hz
phase noise 10kHz offset max -83 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 250 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF input connector CPR 229G waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40 to +60°C

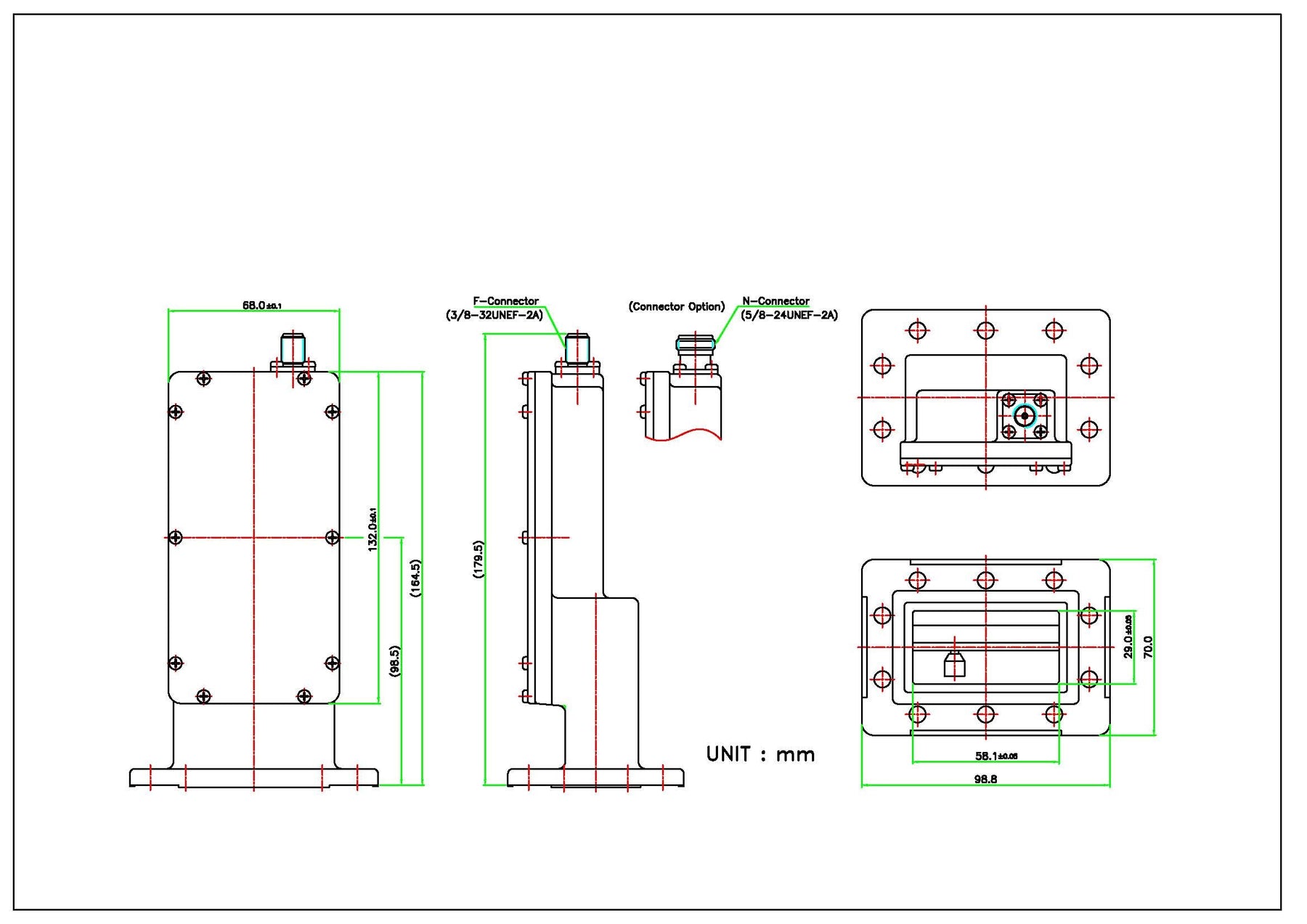

PHYSICAL SPECIFICATIONS
product height 70 mm
product length 164.5 mm
product weight 0.575 kg
product width 98.8 mm
