BPF-C-1-10CN

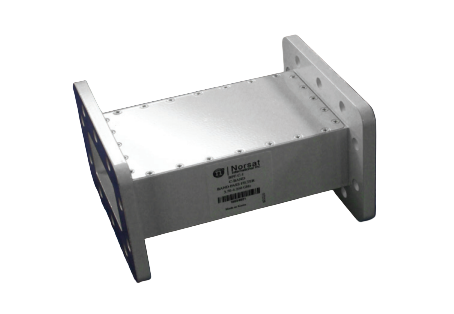

C-Band Bandpass Filter

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 40 items in stock!
Maximum total coverage is 5 years.



• Easily installed between the feed and LNB
• Suitable for use with Norsat’s C-Band LNBs
• Environmentally sealed and moisture resistant (IP66)

KEY SPECIFICATIONS
band C-Band
frequency range 3.70 - 4.20 GHz
rejection 55 dB min from 3.40 GHz to 3.50 GHz
55 dB min from 3.50 GHz to 3.60 GHz
70 dB min from 4.80 GHz to 8.00 GHz
Product Revision A
RF SPECIFICATIONS
insertion loss in band 0.5 dB max.
VSWR 1.4 : 1 max.
INTERFACE SPECIFICATIONS
RF input connector CPR-229G
RF output connector CPR-229F

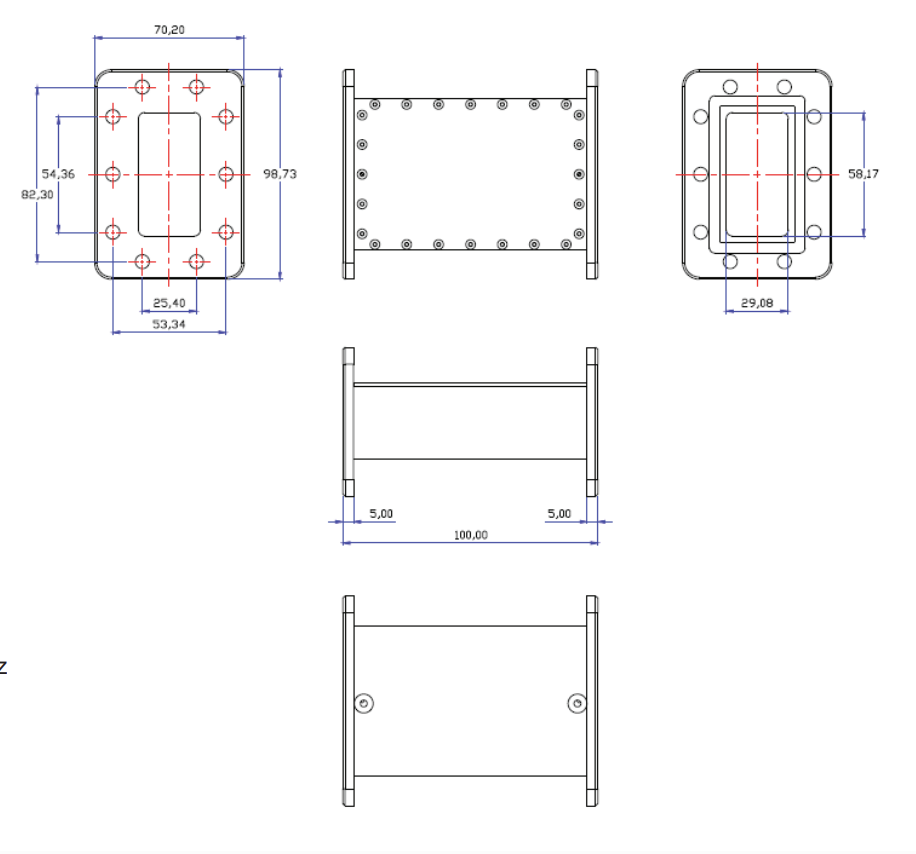

PHYSICAL SPECIFICATIONS
product height 99 mm
product length 100 mm
product weight <750 g
product width 70 mm
