EBPF-100002

C-Band Extreme Bandpass Filter

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band C-Band BPF
group delay variation 3.0 ns max. within ± 0.5 Mhz
rejection 60dB min at 3.992 GHz, 25 dB min at 4.230 GHz
Product Revision A
RF SPECIFICATIONS
frequency range 4.01 - 4.20 GHz
insertion loss in band 1.4 dB max.
VSWR 1.4: 1 max.
waveguide flange CPR-229G (input), CPR-229F (output)

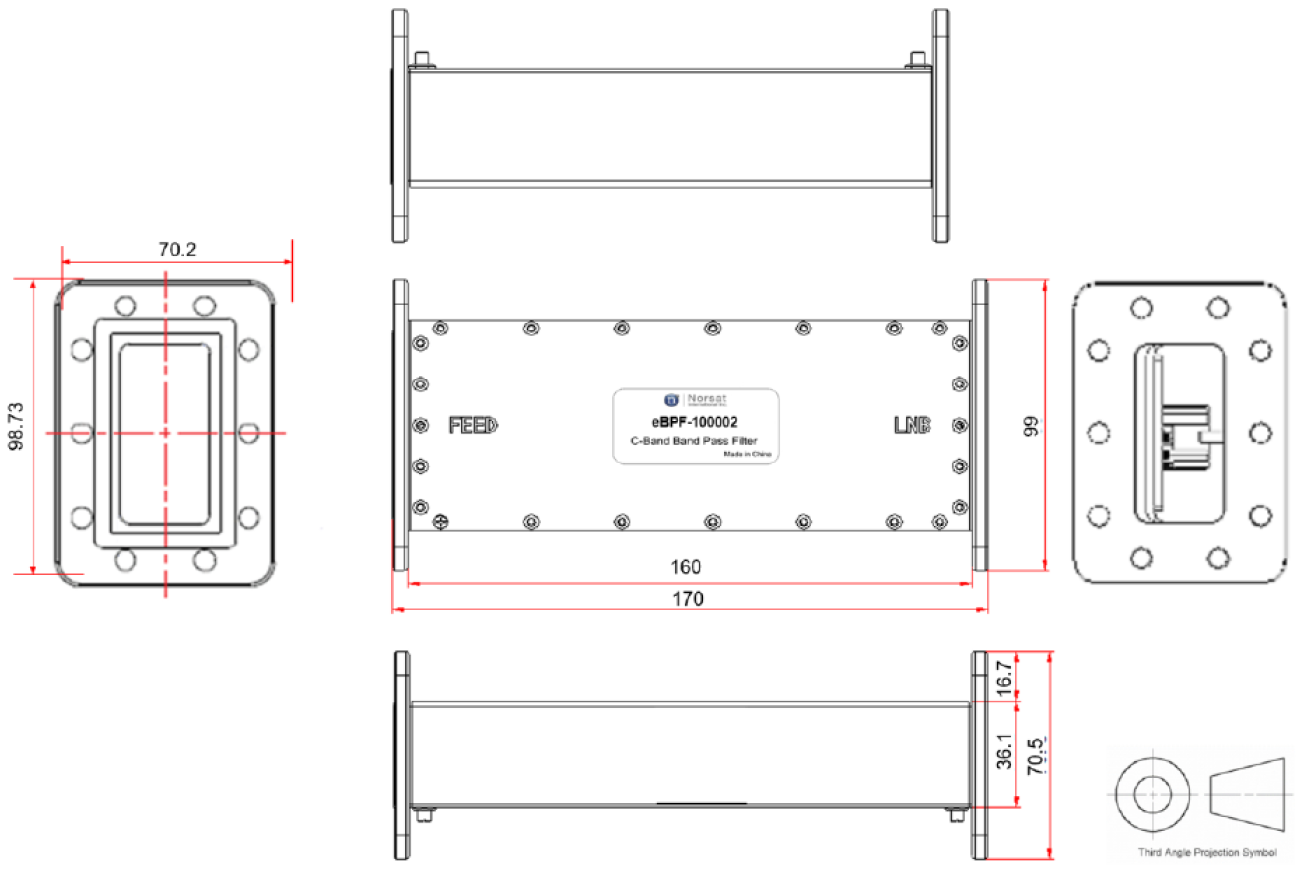

PHYSICAL SPECIFICATIONS
product height 71 mm
product length 170 mm
product weight 900 g
product width 100 mm
