eBPF-100024

C-Band Extreme Bandpass Filter - DEMO

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 16 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band C-Band
input frequency band 1 3.95 - 4.20 GHz
product family C-Band BPF

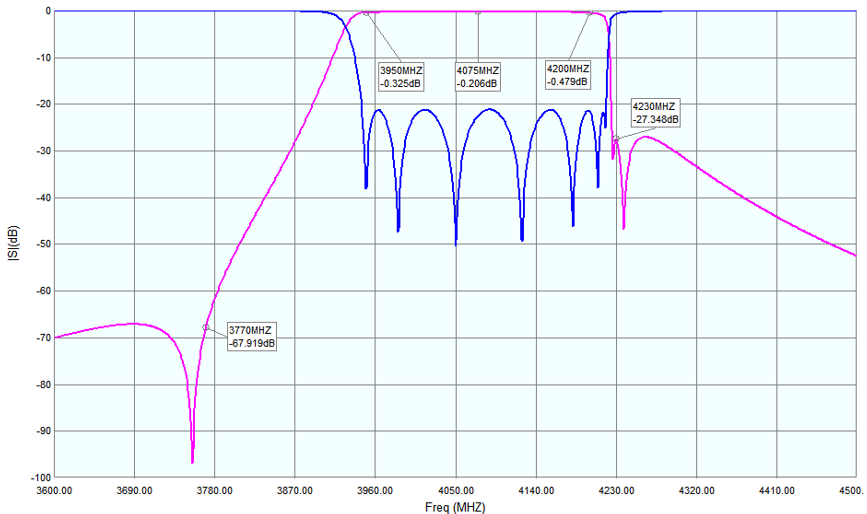

rejection ≥60dB @3400-3770 Mhz
≥25dB @4230-4300 Mhz
Product Revision A
RF SPECIFICATIONS
insertion loss in band 0.5 dB max.
VSWR 1.4: 1 max.
INTERFACE SPECIFICATIONS
RF input connector CPR-229G
RF output connector CPR-229F
ENVIRONMENTAL SPECIFICATIONS
Barometric pressure 55 KPa -106KPa
humidity 5% - 95%
IP rating IP67
operating temperature -25°C to +60°C
storage temperature -25°C to +60°C

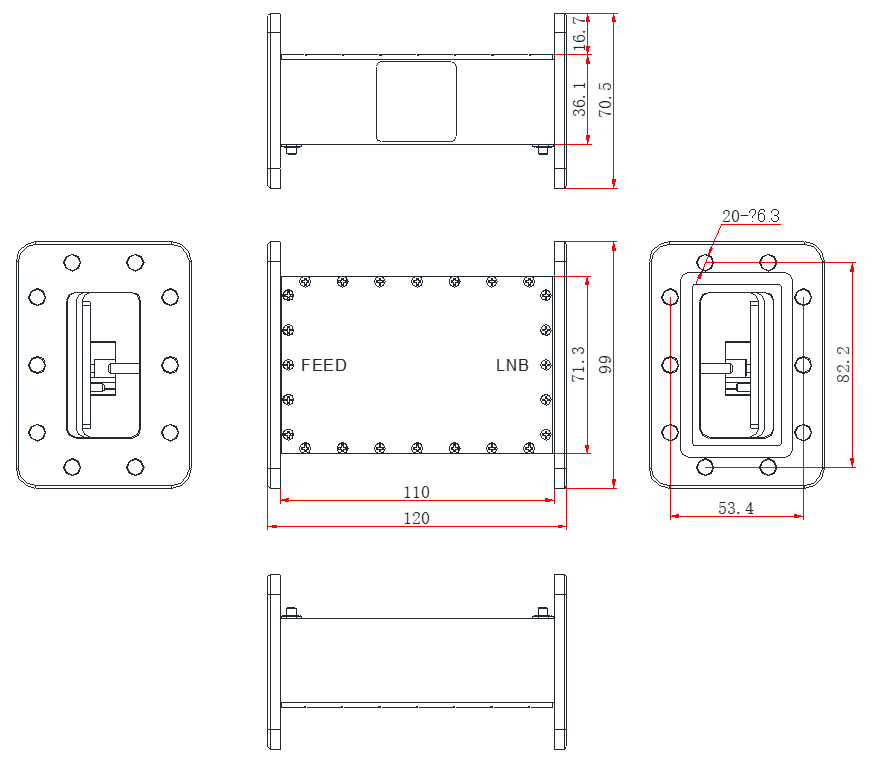

PHYSICAL SPECIFICATIONS
color White
product height 71 mm
product length 120 mm
product weight 0.7 kg
product width 99 mm
