C-Band PLL LNB
C-Band PLL LNB
C-Band PLL LNB
C-Band PLL LNB

LNB-100032

C-Band PLL LNB

LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
input frequency band 3.72 - 4.20 GHz
LO frequency 5.15 GHz
LO type PLL
noise temperature max 30K
output frequency band 950 - 1430 MHz
Product Revision B
RF SPECIFICATIONS
conversion gain max 70 dB
conversion gain min 55 dB
gain flatness 5 dB p-p max.
gain flatness (at -40 to +60℃) 5 dB p-p max.
Gain Flatness (Over Any 40MHz) 1 dB p-p max.
image rejection 45 dBc min.
input VSWR 2.458 : 1 max.
output P1dB +10 dBm min.
output VSWR 2.458 : 1 max.
phase noise 1kHz offset max -73 dBc/Hz
phase noise 10kHz offset max -83 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 250 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector F-Connector
RF input connector WR-229
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40 to +60°C

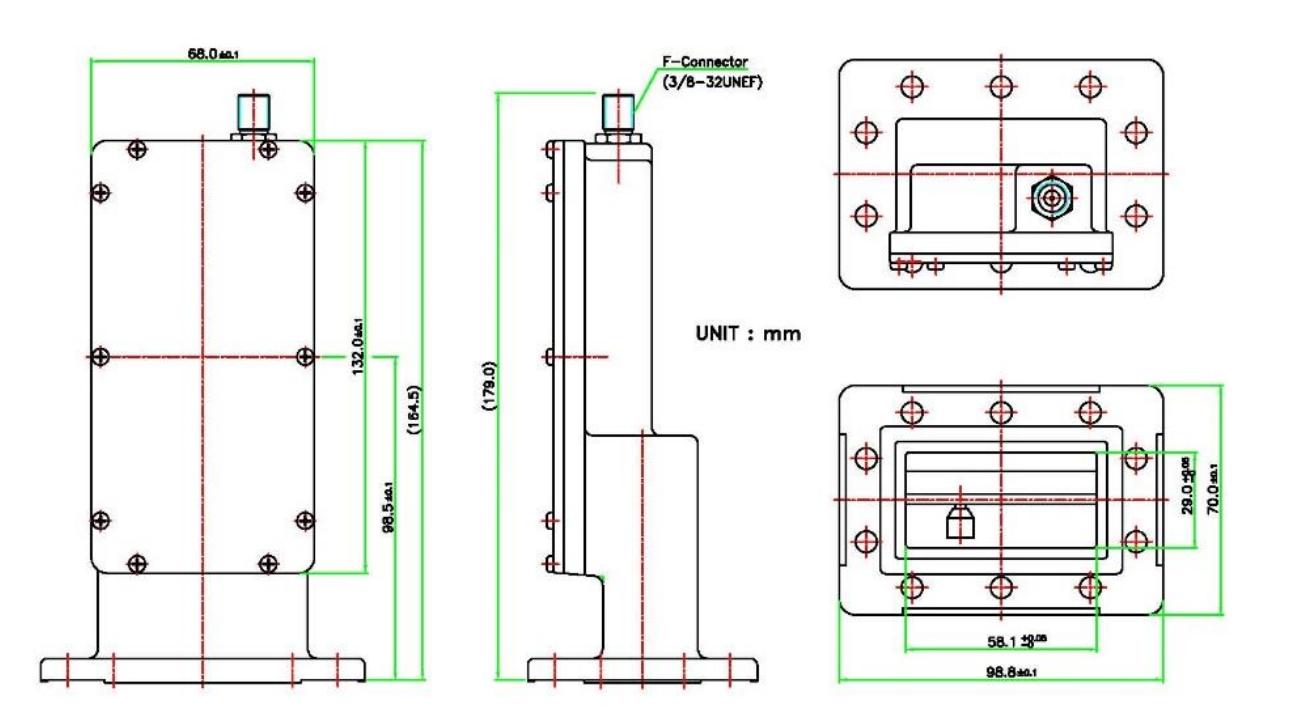

PHYSICAL SPECIFICATIONS
product height 98.8 mm
product length 164.5 mm
product weight 0.575 kg
product width 70.0 mm
