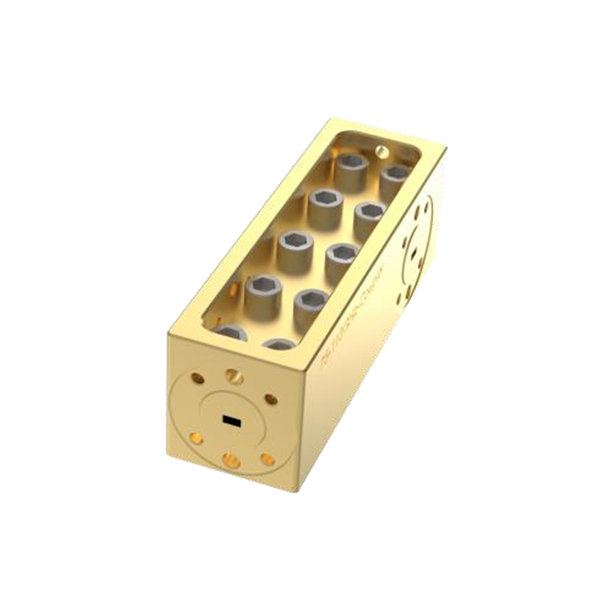

Name: Waveguide Coupler
Brand: Norsat International Inc.
SKU: COU010E
Price: 3225.00 USD
Availability: InStock

COU010E

Waveguide Coupler

Coupler

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":43247578087607,"title":"E-Band","option1":"E-Band","option2":null,"option3":null,"sku":"COU010E","requires_shipping":true,"taxable":true,"featured_image":{"id":52902460588399,"product_id":7817036234935,"position":1,"created_at":"2024-10-02T19:25:48-07:00","updated_at":"2024-10-02T19:25:48-07:00","alt":null,"width":600,"height":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/COU010E-product.png?v=1727922348","variant_ids":[43247578087607]},"available":true,"name":"Waveguide Coupler - E-Band","public_title":"E-Band","options":["E-Band"],"price":322500,"weight":40,"compare_at_price":150000,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":45437859397999,"position":1,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/COU010E-product.png?v=1727922348"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43247578120375,"title":"W-Band","option1":"W-Band","option2":null,"option3":null,"sku":"COU030W","requires_shipping":true,"taxable":true,"featured_image":{"id":52902460653935,"product_id":7817036234935,"position":2,"created_at":"2024-10-02T19:25:52-07:00","updated_at":"2024-10-02T19:25:52-07:00","alt":null,"width":600,"height":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/COU030W-product.png?v=1727922352","variant_ids":[43247578120375]},"available":true,"name":"Waveguide Coupler - W-Band","public_title":"W-Band","options":["W-Band"],"price":196200,"weight":40,"compare_at_price":165000,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":45437859430767,"position":2,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.norsat.com\/cdn\/shop\/files\/COU030W-product.png?v=1727922352"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	E-Band
frequency	60 - 90 GHz
product family	Coupler
Product Revision	B

RF SPECIFICATIONS
input VSWR	≤ 1.5 : 1
insertion loss	≤ 0.3 dB
isolation	≥ 48 dB

ELECTRICAL SPECIFICATIONS
coupling	30dB ± 1 dB
impedance	50 Ω

INTERFACE SPECIFICATIONS
connectors type	WR10

ENVIRONMENTAL SPECIFICATIONS
indoor status	Indoor
temperature operational	-40°C to +75°C

PHYSICAL SPECIFICATIONS
product height	0.0189 m
product length	0.06 m
product width	0.0212 m

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	8517799000
Country of Origin	Made in Thailand
Ex Works	Hong Kong
ECCN Number	EAR99
Warranty	3 years
Unit Package Dimensions	90 x 52 x 48 mm
Unit Package Weight	0.04 kg
Total Aluminium Content	0 kg
Aluminum Country of Smelt and Cast	-
Total Aluminium Value	$ 0

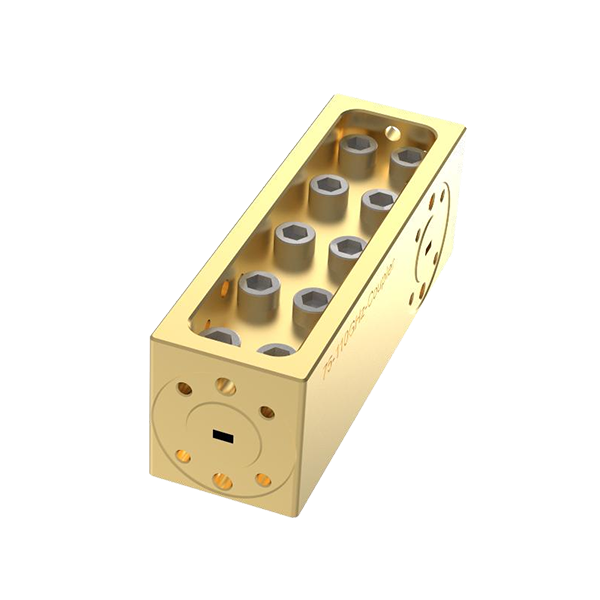

KEY SPECIFICATIONS
band	W-Band
frequency	75 - 110 GHz
product family	Coupler
Product Revision	B

PHYSICAL SPECIFICATIONS
product height	0.019 m
product length	0.06 m
product width	0.0208 m
