MLINK-100463
0.5m Ka-Band Maritime Antenna
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| antenna aperture | 0.5m |
| antenna category | Maritime |
| Product Revision | D |
| ANTENNA SPECIFICATIONS | |
|---|---|

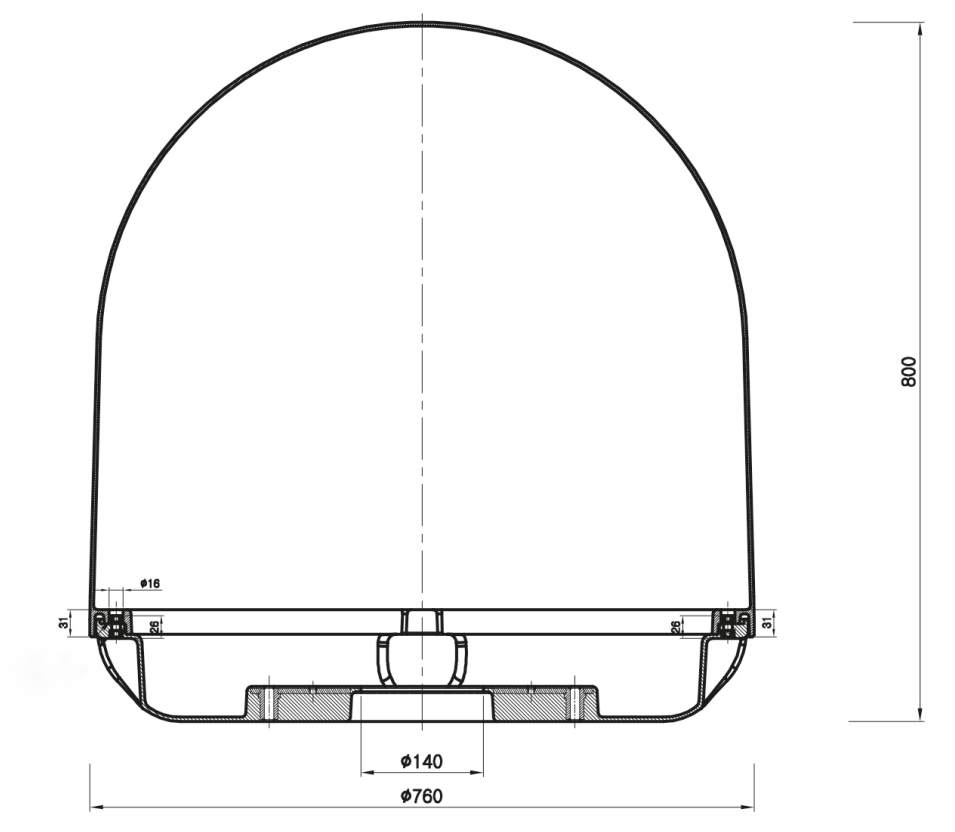

| antenna dimension | 76 cm (D) x 80 cm (H) |
| antenna input power | 48V DC 4.18A |
| azimuth range | Unlimited |
| BMIP | Included |
| cross angle | ± 35° |
| elevation angle | -10° to +110° |
| number of ports | 4-ports (includes automatic polarization switching module) |
| operating platform | 3 - Axis |
| ship motion | Roll: ±20° at 8-12 sec periods Pitch: ±10° at 6-12 sec periods Yaw: ±8° at 15-20 sec periods |
| tracking speed | More than 90°/sec |
| vibration damper | Rubber Damper Included |
| RF SPECIFICATIONS | |
|---|---|
| Rx frequency | 20.2 - 21.2 GHz |
| rx gain | 40.0 dBi @ Mid Freq GHz |
| Tx frequency | 30.0 - 31.0 GHz |
| tx gain | 43.0 dBi @ Mid Freq GHz |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| humidity | Up to 100% @ 40°C |
| temperature operational | -20° to +55°C |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| antenna weight | 65 kg |
| packed by | Paper Carton |
