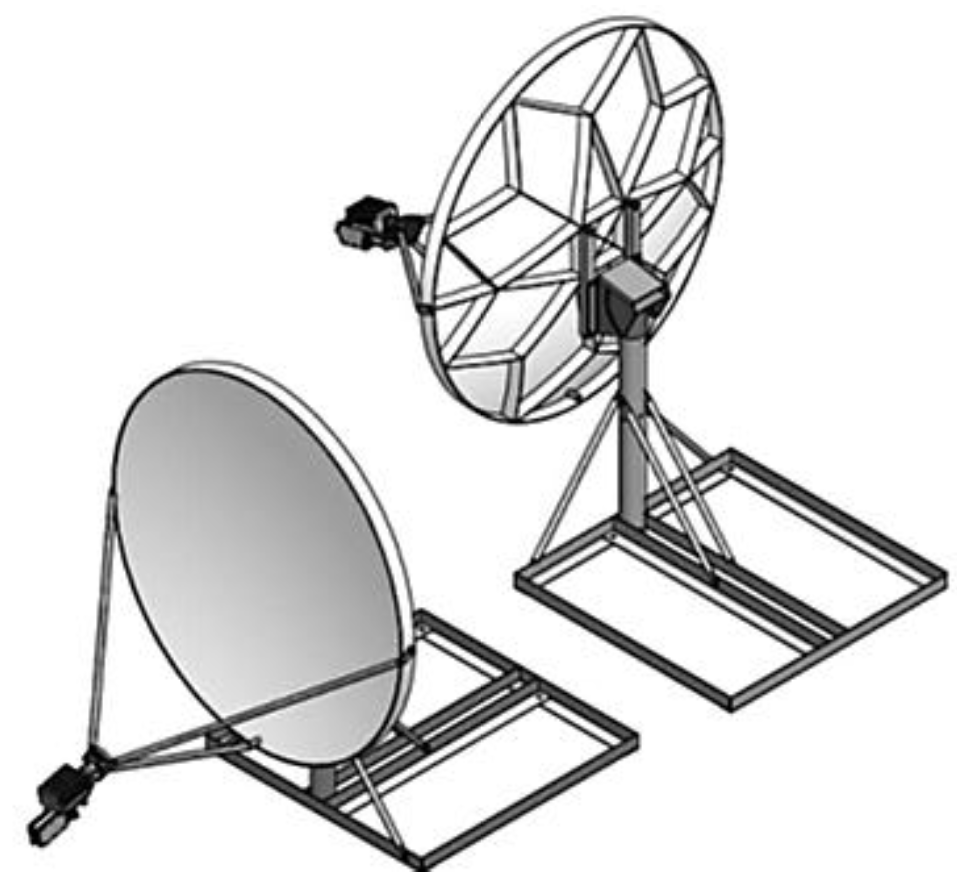

1.2m Ku-Band Fixed Antenna
1.2m Ku-Band Fixed Antenna
1.2m Ku-Band Fixed Antenna
1.2m Ku-Band Fixed Antenna

VSAT-KU120-LT

1.2m Ku-Band Fixed Antenna

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
antenna aperture 1.2 m Monoblock, SMC
band Ku-Band
Product Revision A
ANTENNA SPECIFICATIONS
azimuth range ±30°
cross polarization isolation Rx: 35 dB min.
Tx: 35 dB min.
elevation range 10°-90°
polarization Linear
polarization range ±90°
standard BUC options BUC-ELMTKU004-EF (Element Ku-Band 4W BUC) Sold Seperately
standard LNB options 1208HUF (Quad-Band PLL 1000HU) Sold Separately
RF SPECIFICATIONS
G/T 20.2 dB/K @ Midband, 20° Elevation, with 1208HUF
Rx frequency 10.95 - 12.75 GHz
rx gain 41.5 dBi (midband)
Tx frequency 13.75 - 14.50 GHz
tx gain 43 dBi (midband)
tx rx isolation port isolation 85 dB min.
waveguide flange WR-75
ENVIRONMENTAL SPECIFICATIONS
altitude operational 3000m
altitude storage 4000m
certification MIL-STD-810G
humidity 95% at +40°C
temperature operational -30° to +55°C
temperature storage -40° to +70°C
wind load operational 80 km/h (with ballast)
wind load survival 200 km/h (with ballast)

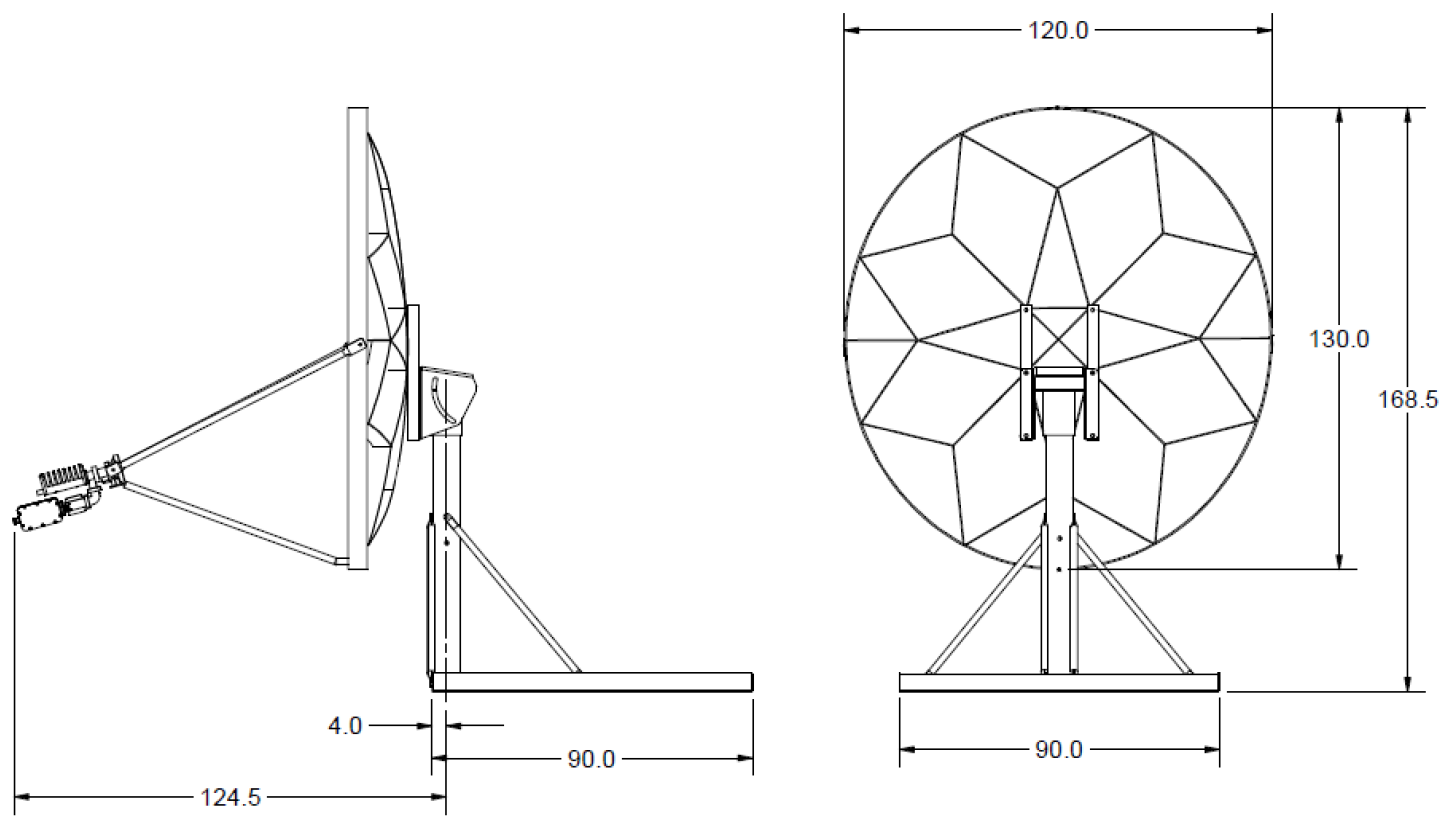

PHYSICAL SPECIFICATIONS
color White/Grey
mounting NPMM Footprint: 4’ x 4’ (1.22 m x 1.22 m)
Mast size: 73mm (2-7/8") O.D.
Includes Rubber Pads
(NPMM may vary)
Mount type Elevation Over Azimuth
packaging Case 1, Dimensions (subject to change): 150 x 150 x 60 cm
Case 1, Overall Weight (including case): 50 kg max. combined Case 1 and Case 2
Case 1, Contents (subject to change): Reflector, boom arm, boom arm struts
Case 2, Dimensions (subject to change): 120 x 50 x 30 cm
Case 2, Overall Weight (including case): 50 kg max. combined Case 1 and Case 2
Case 2, Contents (subject to change): Antenna superstructure, feed, OMT, TRF, RF NPMM, modem, Ethernet switch
Material: Reusable cardboard boxes
