WX-100040

1.2m Ku-Band Fixed Antenna - DEMO

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.

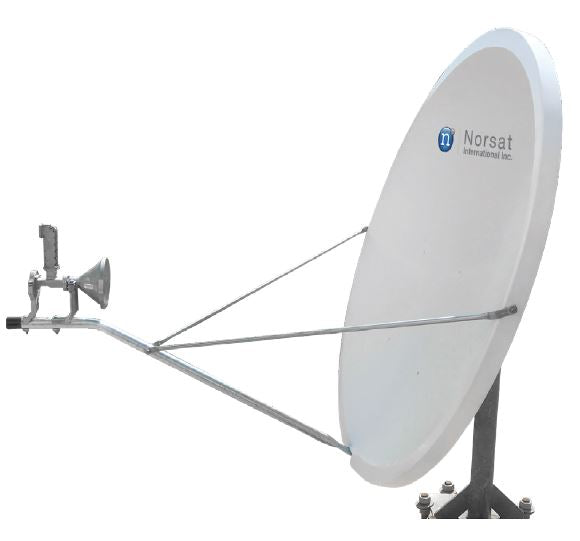

The Norsat WAYFARER™ commercial 1.2m fixed antennas deliver adaptable and dependable solutions for semi-permanent SATCOM installations in remote locations.

KEY SPECIFICATIONS
antenna aperture 1.2m
antenna category Fixed
band Ku-Band
reflector material Glass Fiber Reinforced Polyester SMC
Product Revision A
ANTENNA SPECIFICATIONS
azimuth range 360° Continuous, +/- 10° Fine Adjustment
elevation range 10° to 90°, Continuous Fine Adjustment

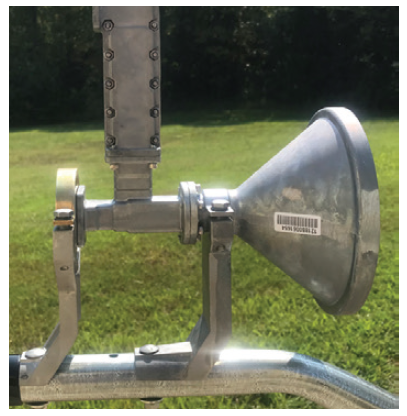

feed configuration Prime Focus, One-Piece Offset, 0.8 F/D
polarization Linear
RF SPECIFICATIONS
cross polarization isolation

30 dB on Axis
26 dB in 1 dB contour
Rx VSWR 1.5 : 1 max.
Tx VSWR 1.3 : 1 max.
ENVIRONMENTAL SPECIFICATIONS
atmospheric conditions Salt, Pollutants and Contaminants as encountered in Coastal and Industrial Areas
rainfall operational 13 mm/h
solar radiation 360 BTU/h/ft^2
temperature operational -40° to 140° F (-40° to 60° C)
wind load operational 72 km/h
wind load survival 200 km/h
PHYSICAL SPECIFICATIONS
mast pipe size 2.5” SCH Pipe (2.88” OD) 73.0 mm

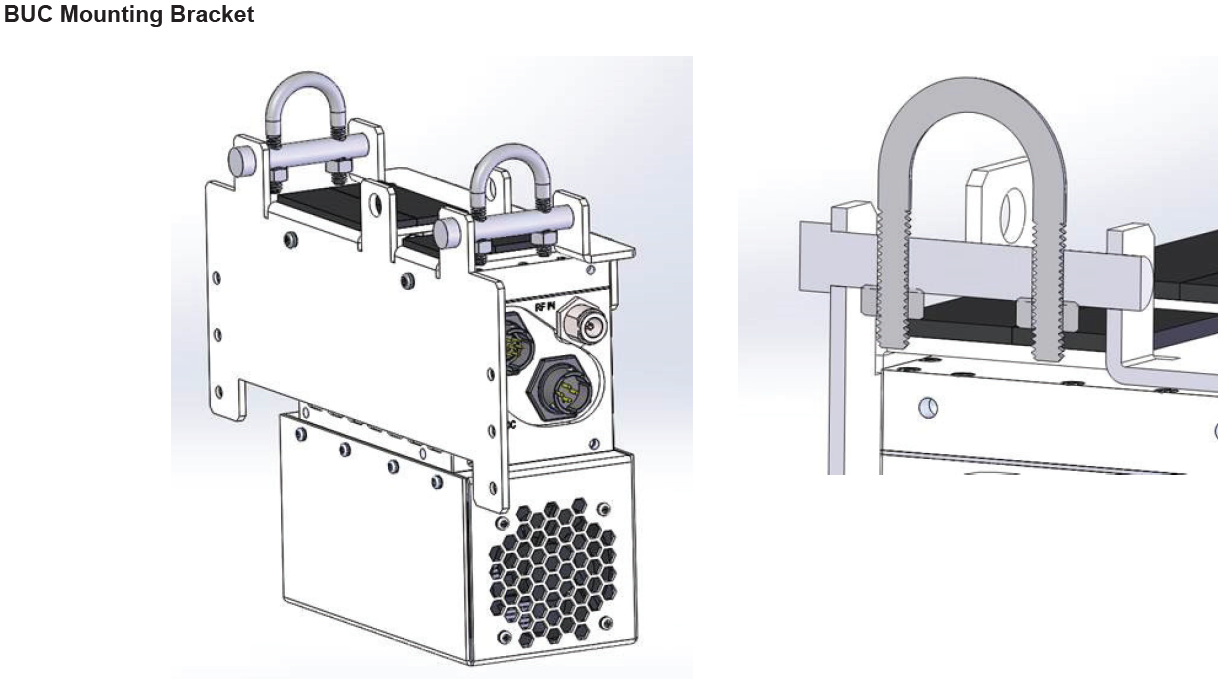

maximum RF equiptment weight 12 lbs (5.5 kg) Tier 2 Feed Support

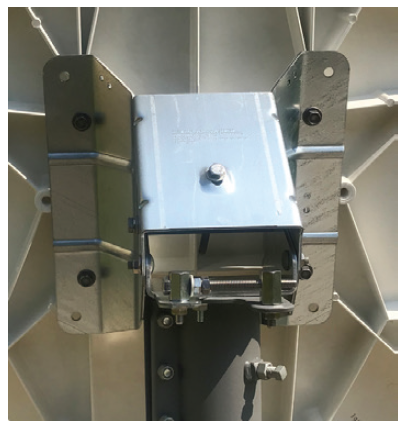

Mount type Elevation Over Azimuth
