Name: 1000 Ku-Band Dual Band PLL LNB
Brand: Norsat International Inc.
SKU: 1000-100072
Availability: InStock

1000-100072

1000 Ku-Band Dual Band PLL LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

ADD-ON EXTENDED WARRANTY

Maximum total coverage is 5 years.

[{"id":52013066813807,"title":"±10 kHz \/ N Connector","option1":"±10 kHz","option2":"N Connector","option3":null,"sku":"1000-100072","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Dual Band PLL LNB - ±10 kHz \/ N Connector","public_title":"±10 kHz \/ N Connector","options":["±10 kHz","N Connector"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52013066846575,"title":"±5 kHz \/ N Connector","option1":"±5 kHz","option2":"N Connector","option3":null,"sku":"1000-100073","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1000 Ku-Band Dual Band PLL LNB - ±5 kHz \/ N Connector","public_title":"±5 kHz \/ N Connector","options":["±5 kHz","N Connector"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

KEY SPECIFICATIONS
band	Ku-Band
input frequency band 1	10.70 - 11.70 GHz
input frequency band 2	11.70 - 12.75 GHz
LO frequency 1	9.75 GHz
LO frequency 2	10.75 GHz
LO type	PLL
noise figure max	0.8 dB
number of onboard LOs	Dual-Band
output frequency band 1	950 - 1950 MHz
output frequency band 2	950 - 2000 MHz
Product Revision	B

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	18V / No Tone
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	≤ 5 dB p-p
image rejection	40 dBc min.
input VSWR	2.3 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.3 : 1 max.

ELECTRICAL SPECIFICATIONS
current consumption	300 mA max.
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	WR-75 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

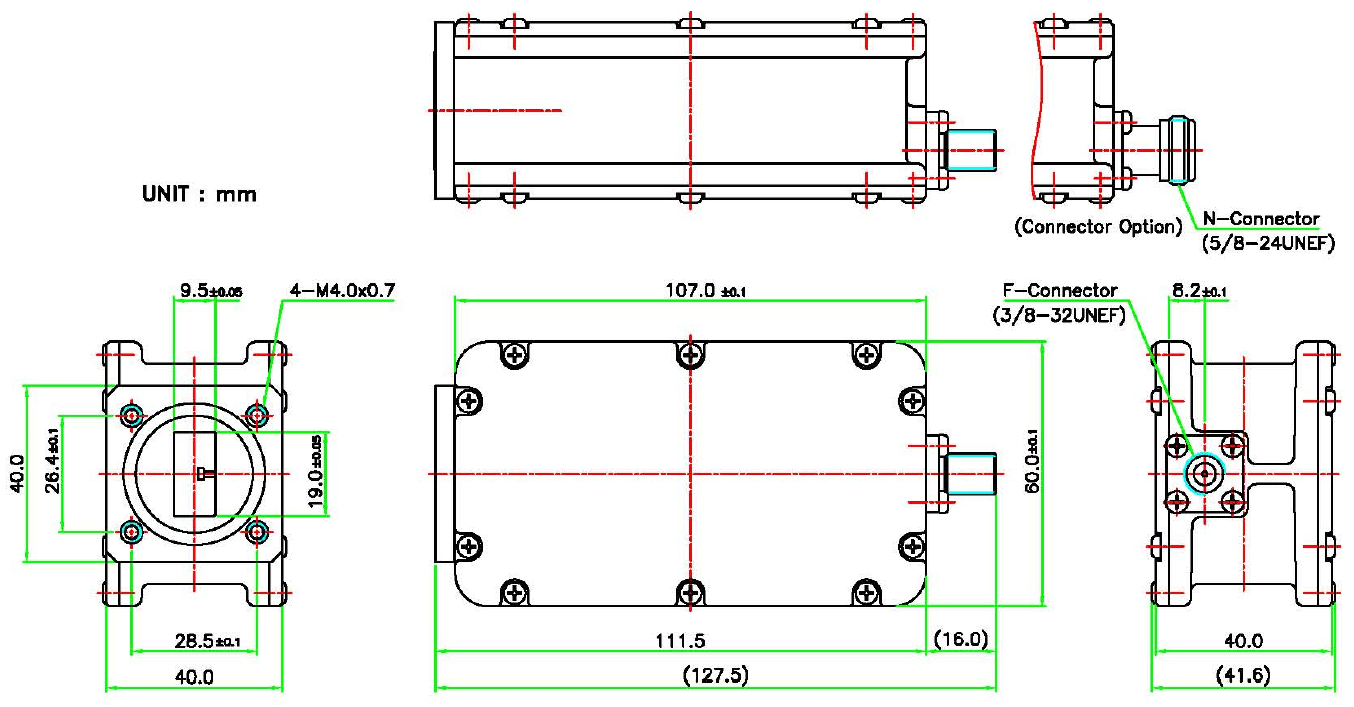

PHYSICAL SPECIFICATIONS
product height	41.6 mm
product length	111.5 mm
product weight	0.4 kg
product width	60.0 mm

KEY SPECIFICATIONS
band	Ku-Band
input frequency band 1	10.70 - 11.70 GHz
input frequency band 2	11.70 - 12.75 GHz
LO frequency 1	9.75 GHz
LO frequency 2	10.75 GHz
LO type	PLL
noise figure max	0.8 dB
number of onboard LOs	Dual-Band
output frequency band 1	950 - 1950 MHz
output frequency band 2	950 - 2000 MHz
Product Revision	B

RF SPECIFICATIONS
control signal 1	13V / No Tone
control signal 2	18V / No Tone
conversion gain max	65 dB
conversion gain min	55 dB
conversion gain typ	60 dB
Gain Flatness (over full band)	≤ 5 dB p-p
image rejection	40 dBc min.
input VSWR	2.3 : 1 max.
output P1dB	+ 5 dBm min.
output VSWR	2.3 : 1 max.

ELECTRICAL SPECIFICATIONS
current consumption	300 mA max.
power requirements	+12 to +24V DC

INTERFACE SPECIFICATIONS
IF connector	N-Connector
RF input connector	WR-75 waveguide grooved

ENVIRONMENTAL SPECIFICATIONS
IP rating	IP 67
temperature operational	-40 to +60°C
temperature storage	-40 to +80°C

PHYSICAL SPECIFICATIONS
product height	41.6 mm
product length	111.5 mm
product weight	0.4 kg
product width	60.0 mm

Please contact us to request any additional documents you may need.

INFORMATION
HS Code	8517690000
Country of Origin	Made in the Republic of Korea
Ex Works	Richmond, BC, Canada
ECCN Number	EAR99
Warranty	1 year
Unit Package Dimensions	-
Unit Package Weight	-
Total Aluminium Content	-
Aluminum Country of Smelt and Cast	-
Total Aluminium Value	-
