1000-100102

1000 Ku-Band Simultaneous Band Auto Ref PLL LNB

$2,048.00

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
external ref freq 10 MHz, -5 to +5 dBm
input frequency band 1 L: 10.95 - 11.70 GHz
input frequency band 2 H: 11.70 - 12.75 GHz
LO frequency 1 L: 10.00 GHz
LO frequency 2 H: 10.75 GHz
LO type PLL
noise figure max 0.9 dB
noise figure typ 0.8 dB
number of onboard LOs Simultaneous-Band
output frequency band 1 L: 950 - 1700 MHz
output frequency band 2 H: 950 - 2000 MHz
reference Auto-Reference (Internal Reference if no External Reference Detected)
Product Revision A
RF SPECIFICATIONS
conversion gain max 62 dB
conversion gain min 50 dB
conversion gain typ 55 dB
Gain Flatness (Over Any 36MHz) ≤ 1 dB p-p
Gain Flatness (over full band) ≤ 4 dB p-p
image rejection 50 dBc min.
input VSWR 2.2 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.2 : 1 max.
phase noise 1kHz offset max -70 dBc/Hz
phase noise 10kHz offset max -80 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 450 mA max. (each band)
power requirements +12 to +24V DC (each band)
INTERFACE SPECIFICATIONS
external ref input port IF connector (each band)
IF connector N-Connector
RF input connector WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40 to +60°C

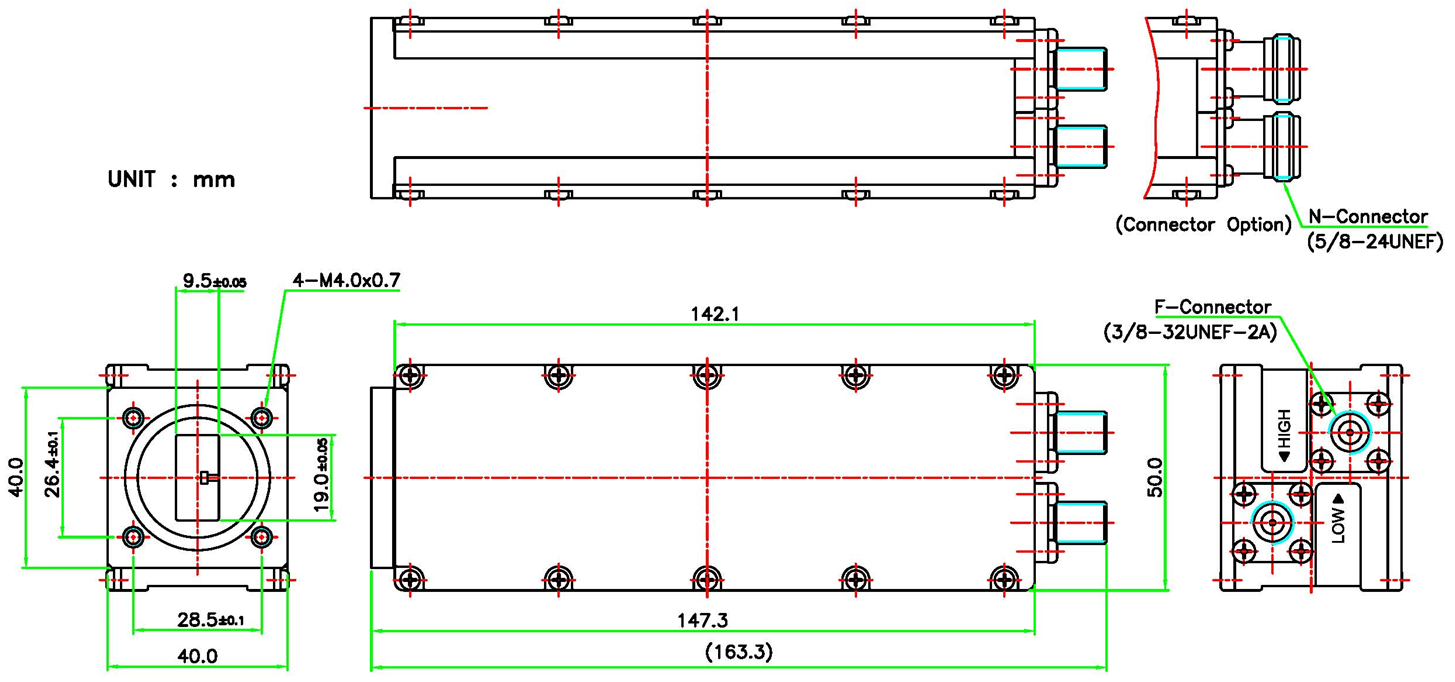

PHYSICAL SPECIFICATIONS
product height 40 mm
product length 163.3 mm
product weight 0.45 kg
product width 50 mm
