1000-100103

1000 Ku-Band Single Band Auto Ref PLL LNB

$407.00

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
external ref freq 10 MHz, -5 to +5 dBm
input frequency band 1 10.95 - 11.80 GHz
LO frequency 1 10.00 GHz
LO type PLL
noise figure max 0.9 dB
noise figure typ 0.8 dB
number of onboard LOs Single-Band
output frequency band 1 950 - 1800 MHz
reference Auto-Reference (Internal Reference if no External Reference Detected)
Product Revision A
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (Over Any 36MHz) ≤ 1 dB p-p
Gain Flatness (Over Full Band) ≤ 4 dB p-p
image rejection 40 dBc min.
input VSWR 2.5 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.5 : 1 max.
phase noise 1kHz offset max -70 dBc/Hz
phase noise 10kHz offset max -80 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 350 mA
power requirements +12 to +24 V
INTERFACE SPECIFICATIONS
external ref input port IF output connnector
IF connector N-Connector
RF input connector WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40°C to +60°C

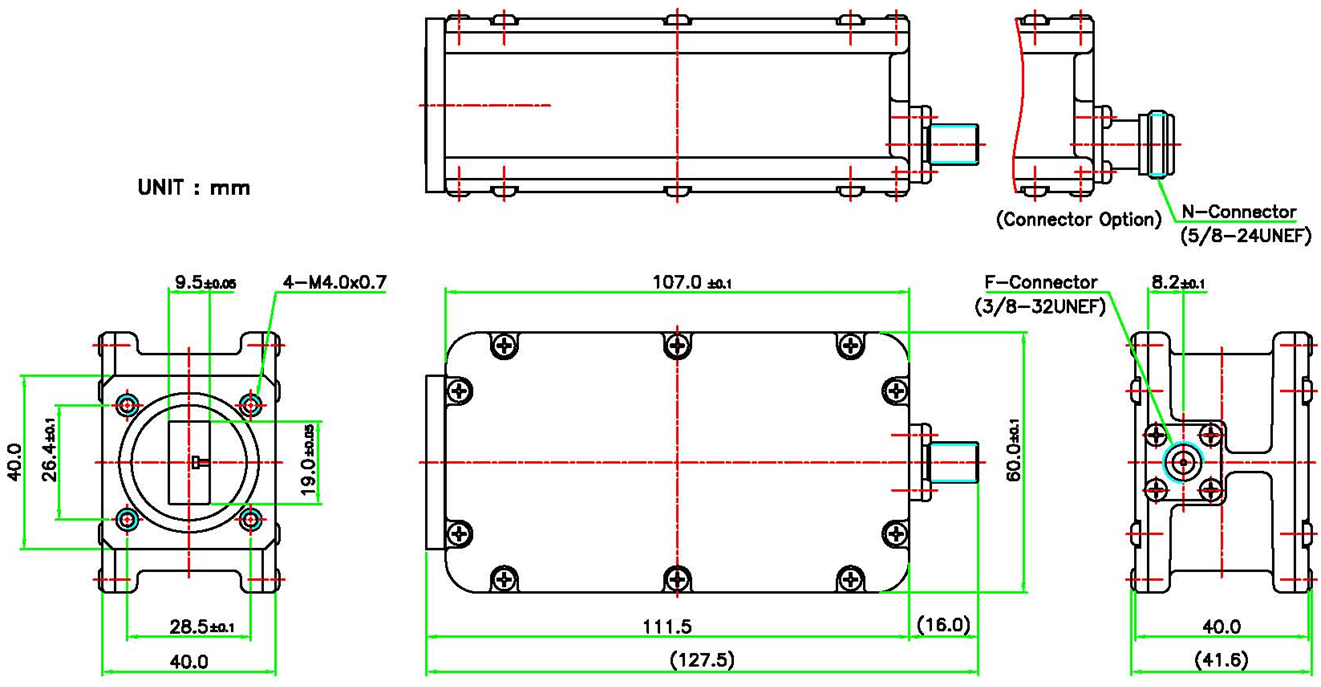

PHYSICAL SPECIFICATIONS
product height 41.6 mm
product length 111.5 mm
product weight 0.38 kg
product width 60 mm
