1000-100095

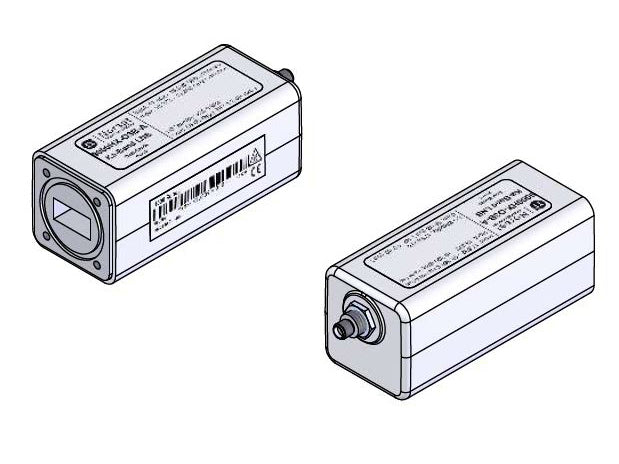

1000 Dual-Band Ku-Band Ext REF LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 10.70 - 11.70 GHz
input frequency band 2 11.70 - 12.75 GHz
LO frequency 1 9.75 GHz
LO frequency 2 10.60 GHz
LO type PLL
noise figure max 1.0 dB
noise figure typ 0.8 dB
number of onboard LOs Dual-Band
output frequency band 1 950 - 1950 MHz
output frequency band 2 1100 - 2150 MHz
Product Revision B
RF SPECIFICATIONS
control signal 1 13V / No Tone
control signal 2 18V / No Tone
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (over full band) ≤ 6 dB p-p
input VSWR 2.3 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.3 : 1 max.
phase noise Depends on External Reference
ELECTRICAL SPECIFICATIONS
current consumption 350 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector SMA Connector

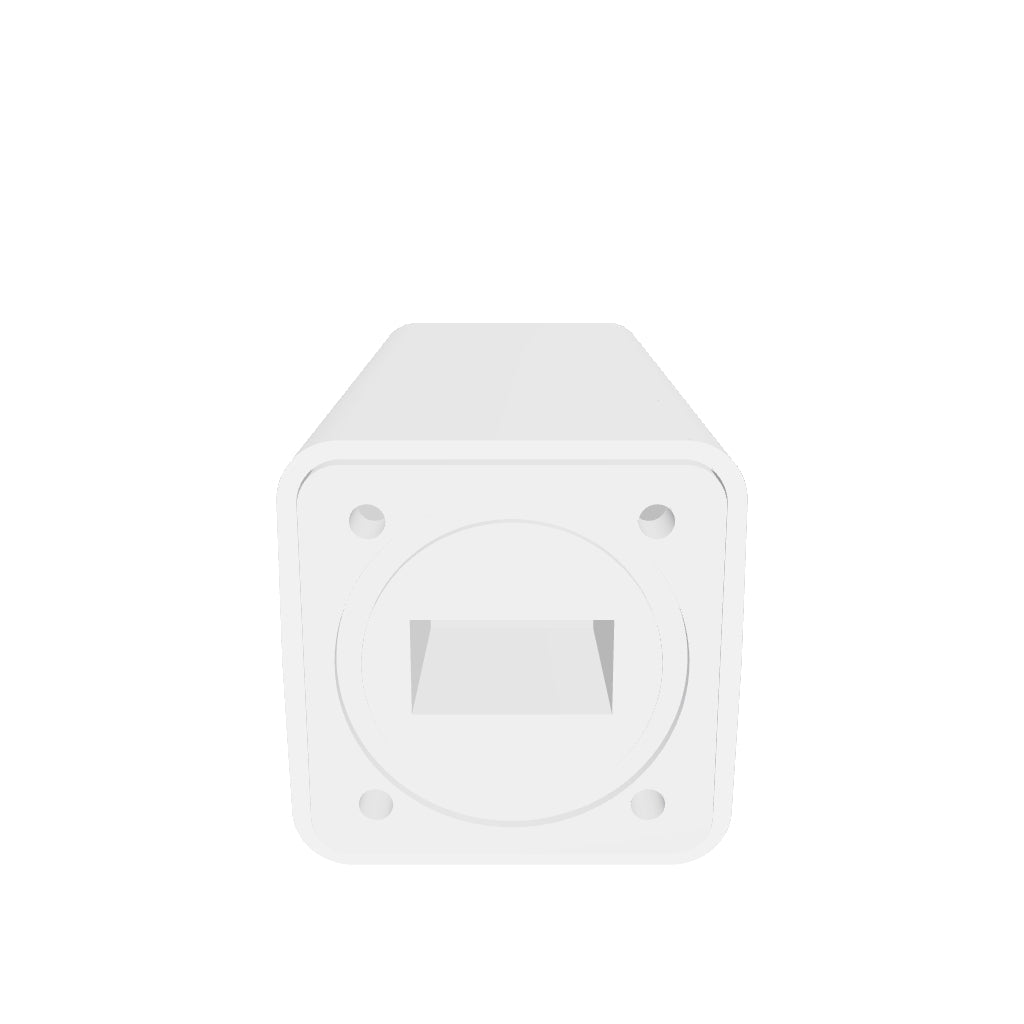

RF input connector WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +85°C
temperature storage -40 to +85°C

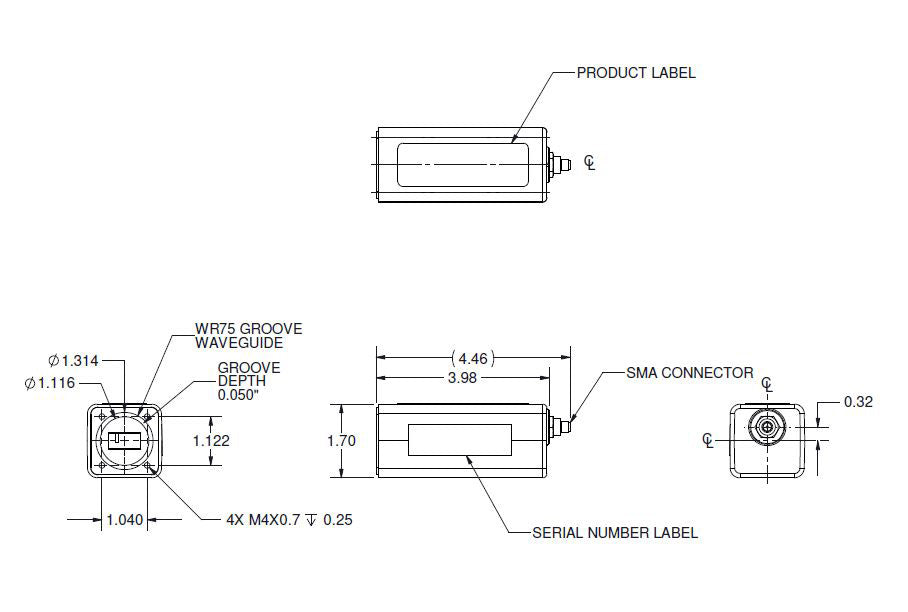

PHYSICAL SPECIFICATIONS
product height 43.1 mm
product length 113.3 mm
product weight 0.3 kg
product width 43.7 mm
