1000 Ku-Band Dual Band PLL LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
input frequency band 1 10.70 - 12.20 GHz
LO frequency 1 9.75 GHz
LO type PLL
noise figure max 1 dB
number of onboard LOs Single-Band
output frequency band 1 950 - 2450 MHz
Product Revision B
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 50 dB
conversion gain typ 55 dB
Gain Flatness (over full band) 7 dB p-p max.
Gain Flatness (over temperature) 8 dB p-p max.
Gain Ripple at Per 27MHz 1 dB p-p max.
image rejection 40 dBc min.
input VSWR 2.5 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.5 : 1 max.
phase noise 1kHz offset max -65 dBc/Hz
phase noise 1kHz offset max -65 dBc/Hz
phase noise 10kHz offset max -75 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
Rx input VSWR 2.5 : 1
ELECTRICAL SPECIFICATIONS
current consumption 350 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector F-Connector
RF input connector WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40 to +60°C

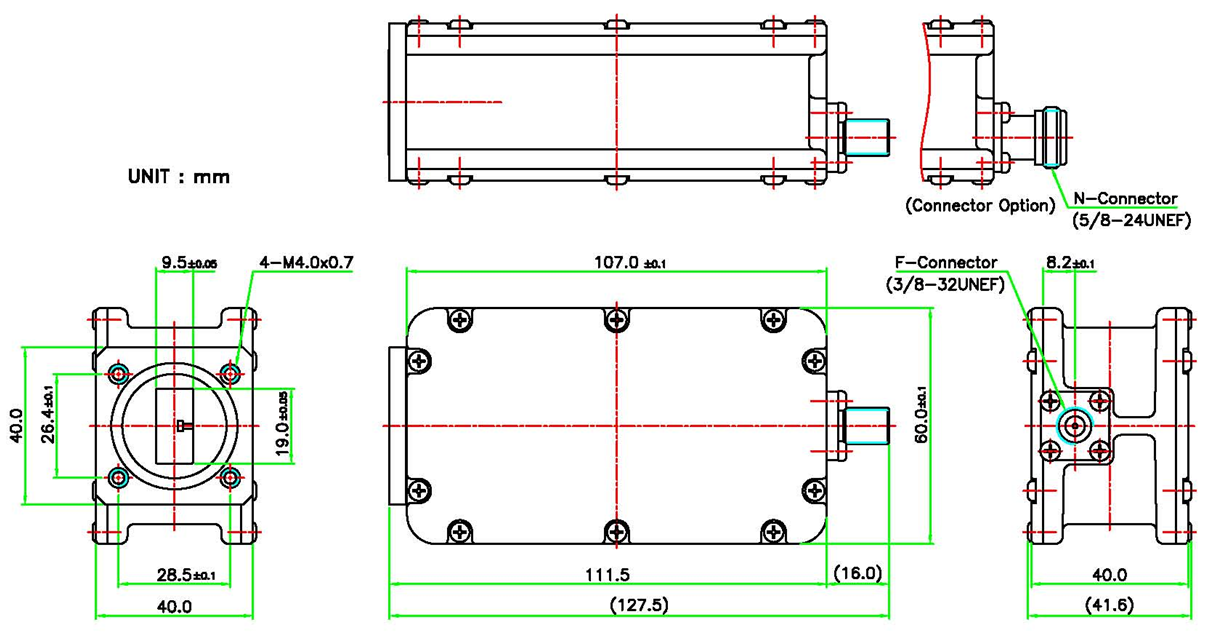

PHYSICAL SPECIFICATIONS
product height 41.6 mm
product length 111.5 mm
product weight 0.4 kg
product width 60.0 mm
