100W Ka-Band BUC
100W Ka-Band BUC
100W Ka-Band BUC
100W Ka-Band BUC

BUC-100476

100W Ka-Band BUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
external ref freq 10 MHz, - 5 to + 5 dBm
input frequency band 1 950 - 2450 MHz
LO frequency 1 28.55 GHz
output frequency band 1 29.5 - 31.0 GHz
output power rated 100W
product family BUC
reference type External Reference
Product Revision A
RF SPECIFICATIONS
conversion gain typ 72 dB
gain flatness (40MHz) ±0.5 dB max
Gain Flatness (over full band) ±1.8 dB max
Gain Flatness (over temperature) ±1.5 dB typ., ±1.8 dB max
IMD3 -25 dBc max. (two tones) 2 signals 5 MHz apart from PLin
input VSWR 1.5 : 1 max
mute Shut off the BUC if L.O. unlocked.
noise figure 15 dB max.
noise power density Rx -150 dBm/Hz max.
noise power density Tx -60 dBm/Hz max.
output power Plin +47.56 dBm min.
output power psat +50 dBm min.
output VSWR 1.5 : 1 max.
phase noise 100Hz offset max -62 dBc/Hz
phase noise 100kHz offset max -92 dBc/Hz
phase noise 10Hz offset max -52 dBc/Hz
phase noise 10kHz offset max -82 dBc/Hz
phase noise 1kHz offset max -72 dBc/Hz
phase noise 1MHz offset max -102 dBc/Hz
spectral regrowth -30 dBc (QPSK at 1.5x and OQPSK at 1.0x symbol rate offset with 2dB back-off from rated output power)
spurious -55 dBc max.
ELECTRICAL SPECIFICATIONS
input power via MS Connector
power consumption 1100 W max
power requirements +90 to +240 VAC
INTERFACE SPECIFICATIONS
FSK Multiplexed on Tx IFL, compatible with Comtech and Paradigm modems
Input connector N-Connector
M&C interface RS-232 and RS-485, Ethernet (HTTP and SNMP)
output connector WR-28G
status LED Status LED RED: ALARM
Status LED GREEN: SSPA OK
Status LED GREEN BLINKING: SSPA MUTED
L.O. GREEN: ALL OK L.O. 28.55 GHZ
Status REF LED GREEN: EXTERNAL 10 MHZ DETECTED
Status REF LED GREEN BLINKING: INTERNAL 10 MHZ
Status REF LED RED: NO EXTERNAL REFERENCE
ENVIRONMENTAL SPECIFICATIONS
IP rating IP67
temperature operational -40°C to +55°C
temperature storage -55°C to +85°C
vibration and shock Complies with MIL-STD-810E

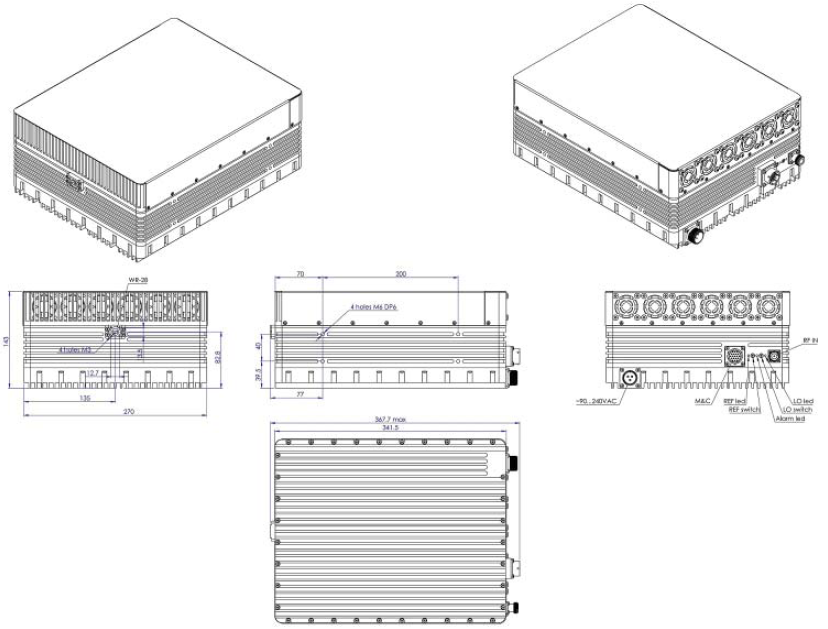

PHYSICAL SPECIFICATIONS
product height 143 mm
product length 342 mm
product weight 21.5 kg
product width 270 mm
