PS-100037

100 Power Supply

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
output power rated 100 W
Product Revision A
ELECTRICAL SPECIFICATIONS
input current 2 A / 115 VAC, 1 A / 230 VAC
input frequency 47 - 63 Hz
input in rush current Cold Start 40 A / 230 VAC
input leakage current < 1 mA / 240 VAC
input voltage 90 - 295 VAC, 127 - 417 VDC
output current 4.2 A
output current adjustment range 3% - 15%
output voltage 18 - 24 VDC
output voltage adjustment range 20.25 - 27 VAC
over current 95% - 108%
over voltage 57 - 65 VAC
short circuit Hiccup Mode
INTERFACE SPECIFICATIONS
AC input interface United Kingdom (BS 1363)
ENVIRONMENTAL SPECIFICATIONS
humidity 20% - 95% RH non-condensing
humidity storage 10 - 95 % RH
temperature coefficient ±0.03% / °C (0°C - 50°C)
temperature operational -40°C to +60°C @ Full Load
temperature storage -50°C to +80°C

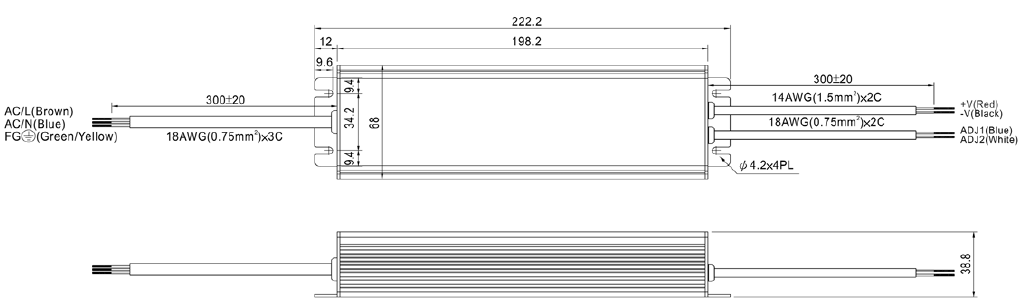

PHYSICAL SPECIFICATIONS
product height 38.8 mm
product length 222.2 mm
product weight 1 kg
product width 68 mm
