BUC-100465

100W X-Band BUC RAL6031

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band X-Band
color RAL6031
external ref freq 10 MHz, - 5 to + 5 dBm
input frequency band 1 950 - 1450 MHz
LO frequency 1 6.95 GHz
output frequency band 1 7.9 - 8.4 GHz
output power rated 100W
reference type External Reference
Product Revision A
RF SPECIFICATIONS
gain flatness (40MHz) ±0.5 dB
Gain Flatness (over full band) ±1.8 dB max
Gain Flatness (over temperature) ±1.5 dB typ., ±1.8 dB max
IMD3 -26 dBc max (2 signal 5 MHz apart at P-LINEAR)
input VSWR 1.5 : 1 max
Linear Gain 69 dB nominal
LO leakage -45 dBm max
mute Shut off the BUC if L.O. unlocked.
noise figure 20 dB max.
noise power density Rx -157 dBm/Hz max.
noise power density Tx -66 dBm/Hz max.
output Plin +47.16 dBm min.
output power +50 dBm min.
output VSWR 1.5 : 1 max.
phase noise 0.01kHz offset max -53 dBc/Hz
phase noise 0.1kHz offset max -63 dBc/Hz
phase noise 1000kHz offset max -113 dBc/Hz
spectral regrowth -30 dBc (QPSK at 1.5x and OQPSK at 1.0x symbol rate offset with 2dB back-off from rated output power)
spurious -53 dBc max.
ELECTRICAL SPECIFICATIONS
input power via MS Connector
power consumption 450 W max
power requirements 85 to 260 VAC via MS Connector
INTERFACE SPECIFICATIONS
Input connector N-Connector
m and c interface RS-485, RS-232 & Ethernet (HTTP and SNMPv2/SNMPv3)
output connector CPR-112G
status LED AMPLIFIER RED: Summary Alarm
AMPLIFIER GREEN: All OK
L.O. GREEN: All OK L.O. is set to 6.95 GHz
10MHZ GREEN: External 10MHz reference
10MHZ GREEN BLINKING: Internal 10MHz reference
10MHZ RED: No 10MHz reference detected
ENVIRONMENTAL SPECIFICATIONS
IP rating IP67
temperature operational -40 to +55°C
temperature storage -55 to +85°C
vibration and shock Complies with MIL-STD-810E
PHYSICAL SPECIFICATIONS

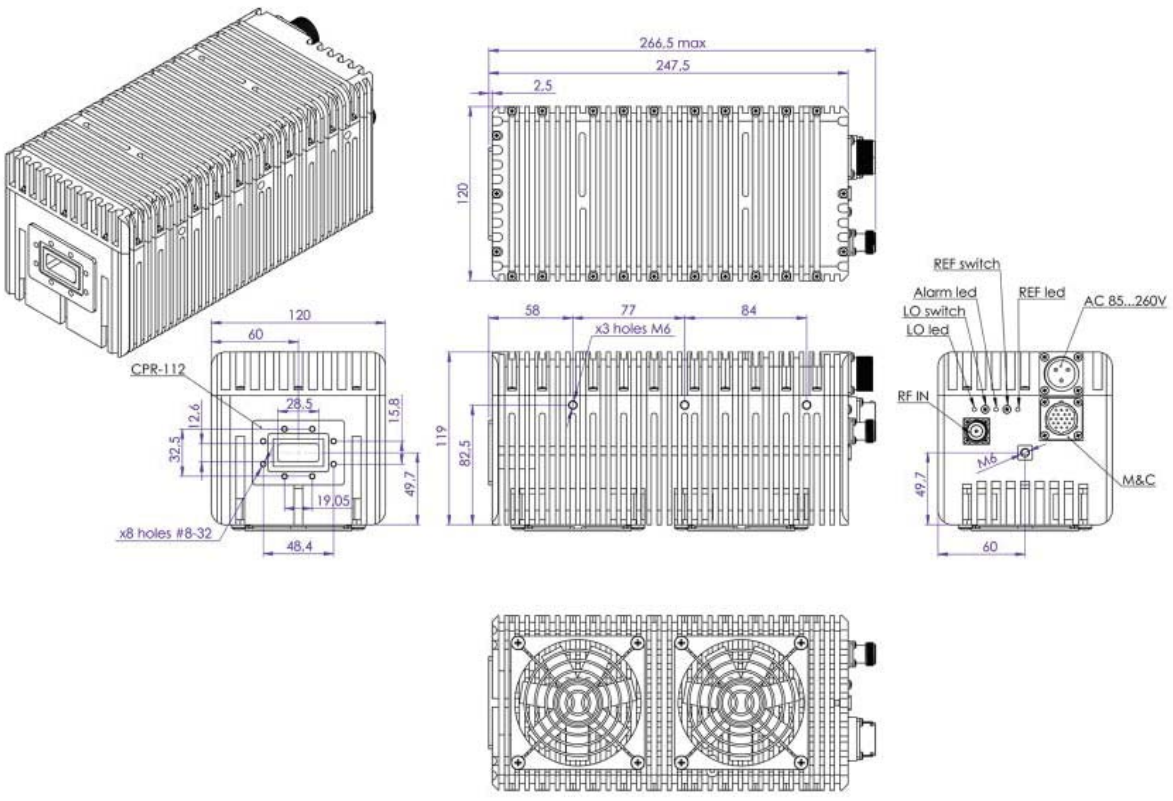

product dimensions (LxWxH) 248 x 120 x 119 mm
product weight 4.8 kg
