160W Ka-Band BUC
160W Ka-Band BUC
160W Ka-Band BUC
160W Ka-Band BUC

BUC-100446

160W Ka-Band BUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
external ref freq 10 MHz, -5 to +5 dBm
input frequency band 1 950 - 1950 MHz
LO frequency 1 28.05 GHz
output frequency band 1 29.00 - 30.00 GHz
output power rated 160W
product family BUC
Product Revision A
RF SPECIFICATIONS
gain adjust range 20 dB (step: 0.1 dB)
gain flatness (over 1000MHz) 4 dB p-p
gain flatness (over 36MHz) 1 dB p-p
gain flatness (over 500MHz) 3 dB p-p
gain stability 3 dB p-p
IMD3 -25 dBc (3 dB from rated)
input VSWR 1.5 : 1 max.
Linear Gain 55-75 dB
linear power plin 50 dBm (-26 dBc regrowth, 1.5 SR, commercial satellite)
49 dBm (-30 dBc regrowth, 1.0 SR, MIL-STD-188-164B, one-carrier)
48 dBm (≤25 dBc IMD3, MIL-STD-188-164B, two-carrier)
output power psat 51 dBm min.
output spurious -60 dBc
output VSWR 1.3 : 1 max.
ELECTRICAL SPECIFICATIONS
power connector ACS02E14S-7P
power consumption plin 700 W
power consumption psat 900 W
power requirements 85 to 265V AC
INTERFACE SPECIFICATIONS
IF connector N-Connector Female
m and c connector PT02E-12-14P
m and c interface RS-485, RS-232 & Ethernet
redundancy connector PT02E-12-19P
RF output connector WR-28 waveguide grooved
status LED Green & Red
ENVIRONMENTAL SPECIFICATIONS
altitude 10,000 feet ASL
humidity 0 - 100% condensing
temperature operational -40 to +60°C

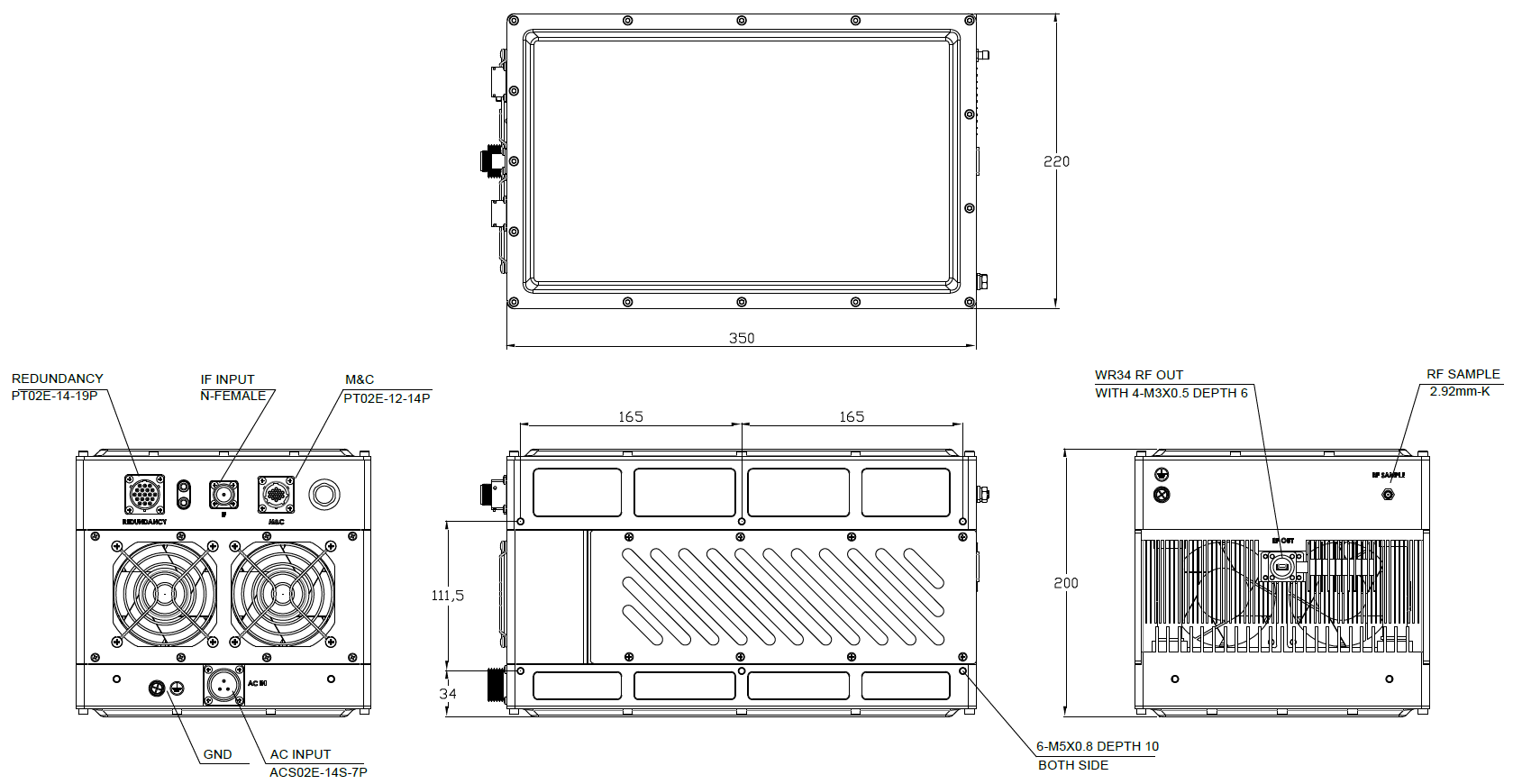

PHYSICAL SPECIFICATIONS
product height 200 mm
product length 350 mm
product weight 16 kg
product width 220 mm
