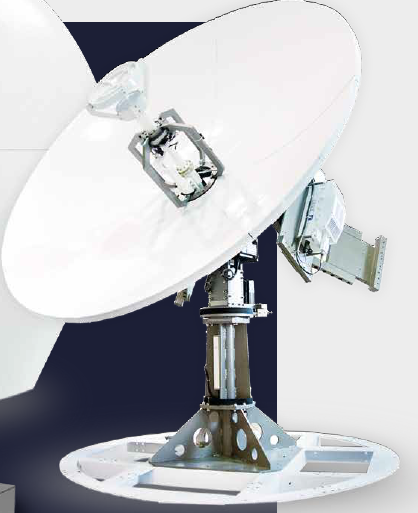

2.4 m C-Band Maritime Antenna
2.4 m C-Band Maritime Antenna
2.4 m C-Band Maritime Antenna
2.4 m C-Band Maritime Antenna

MLINK-100461

2.4 m C-Band Maritime Antenna

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
antenna aperture 2.4m
antenna category Maritime
band C-Band
customization Mounting Legs Are Not Included
Product Revision A
ANTENNA SPECIFICATIONS
ACU input power 100 ~ 200V AC / 200 ~ 240V AC 50/60Hz, 8A/4A
ACU rx output power 48V DC, 4.18A
ACU size 19” Rack 1U size
ACU tx output power 48V DC, 3.2A

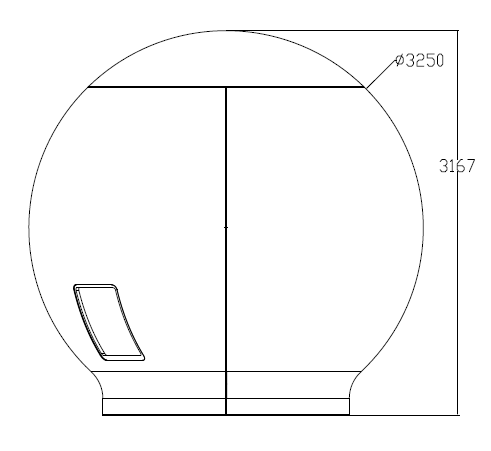

antenna dimension 325 cm (D) x 317 cm (H)
antenna input power 90~264V AC 47/63Hz 17A
azimuth range Unlimited
cross angle ± 35°
elevation angle -10° to +120°
gyro interface NMEA 0183, Synchro, Step by Step
operating platform 3 - Axis
ship motion Roll: ±15° at 8-12 sec periods
Pitch: ±10° at 6-12 sec periods
Yaw: ±8° at 15-20 sec periods
skew control Automatic
tracking speed More than 90°/sec
RF SPECIFICATIONS
G/T 18.3 dB/K (LNB dependent)
Rx frequency 3.4 - 4.2 GHz
rx gain 38 dBi @ Mid Freq GHz
Tx frequency 5.850 - 6.725 GHz
tx gain 41.7 dBi @ Mid Freq GHz
INTERFACE SPECIFICATIONS
external I/O RS-232C, Mini-USB, Ethernet, Console
remote interface Tmonitor, SCS Software, Telnet Terminal
ENVIRONMENTAL SPECIFICATIONS
humidity Up to 100% @ 40°C
temperature operational -20° to +55°C
PHYSICAL SPECIFICATIONS
antenna weight 530 kg
packed by Wooden Crate
