250W S-Band GaN SSPA
250W S-Band GaN SSPA
250W S-Band GaN SSPA
250W S-Band GaN SSPA

BUC-100466

250W S-Band GaN SSPA

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band S-Band
number of onboard LOs Single-Band
output frequency band 1 2.0 - 2.3 GHz
output power rated 250W
product family MEDIAN
Product Revision A
RF SPECIFICATIONS
AM-PM conversion < 1 deg/dB @ Plin
< 2.5 deg/dB @ Psat
attenuator range 20 dB variable in 0.1 dB steps
gain 65 dB min
gain flatness (10MHz) 0.5 dB p-p max
gain flatness (over full band) 2.5 dB p-p max
Gain Flatness (over temperature) ±1.5 dB max.
gain slope 0.06 dB/MHz max.
group delay linear 0.02 ns/MHz max.
group delay parabolic 0.003 ns/MHz² max.
group delay ripple 1 ns p-p max.
harmonics -60 dBc @ Pin
IMD3 -25 dBc @ Plin (2-tones 5 MHz apart)
input VSWR 1.5 : 1
output noise power density Tx < -80 dBm/Hz
output power plin +50 dBm min.
output power psat +54 dBm typ.
output VSWR 1.3 : 1 max
phase noise 0.01kHz offset max -60 dBc/Hz
phase noise 0.1kHz offset max -90 dBc/Hz
phase noise 10000kHz offset max -130 dBc/Hz
phase noise 1000kHz offset max -125 dBc/Hz
residual AM noise 0 – 10 kHz: -45 dBc
10 kHz – 500 kHz: -20 (1.25 + log(F)) dBc, F = Frequency in kHz
500 kHz – 1 MHz: -80 dBc
spurious -60 dBc max. @ Plin
ELECTRICAL SPECIFICATIONS
power consumption 1100W nom.
power requirements 90 - 265 VAC
power supply AC Powered
INTERFACE SPECIFICATIONS
input connector N-Connector
output connector N-Connector
ports Output Sample Port: N-Connector
AC Line: MS3102 type
M&C: MS3112E14-19P
Ethernet Port: RJ45 Outdoor
ENVIRONMENTAL SPECIFICATIONS
altitude 10,000 ft AMSL, derated by 2°C/1000ft from AMSL
humidity 100% Condensing
temperature operational -30°C to +55°C
temperature storage -55°C to +85°C

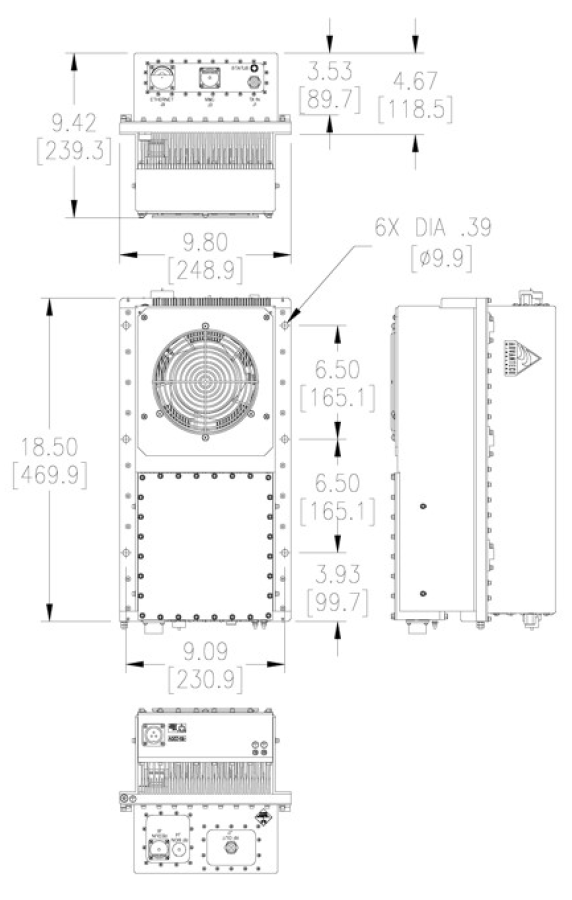

PHYSICAL SPECIFICATIONS
product height 9.42 inch
product length 18.50 inch
product width 9.80 inch
