3200-100021

3200 C-Band Single-Band PLL LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band C-Band
input frequency band 1 3.70 - 4.20 GHz
LO frequency 1 5.15 GHz
LO type PLL
noise temperature typ 25K
number of onboard LOs Single-Band
output frequency band 1 950 - 1450 MHz
Product Revision B
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (over full band) 4 dB p-p max.
4 dBp-p max. at -40 to +60 ℃
Gain Ripple at Per 27MHz 1 dB p-p max. at -40 to +60℃
image rejection 70 dBc min.
input VSWR 2.5 : 1 max.
noise temperature 30K max.
output P1dB + 10 dBm min.
output VSWR 2.5 : 1 max.
phase noise 1kHz offset max -73 dBc/Hz
phase noise 1kHz offset max -75 dBc/Hz
phase noise 10kHz offset max -85 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
rejection 40 dB min. @ pass band ±50 MHz
85 dB min. @ pass band ±100 MHz
100 dB min. @ pass band ± 150 MHz
ELECTRICAL SPECIFICATIONS
current consumption 250 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector F-Connector
RF input connector WR-229 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40 to +60°C

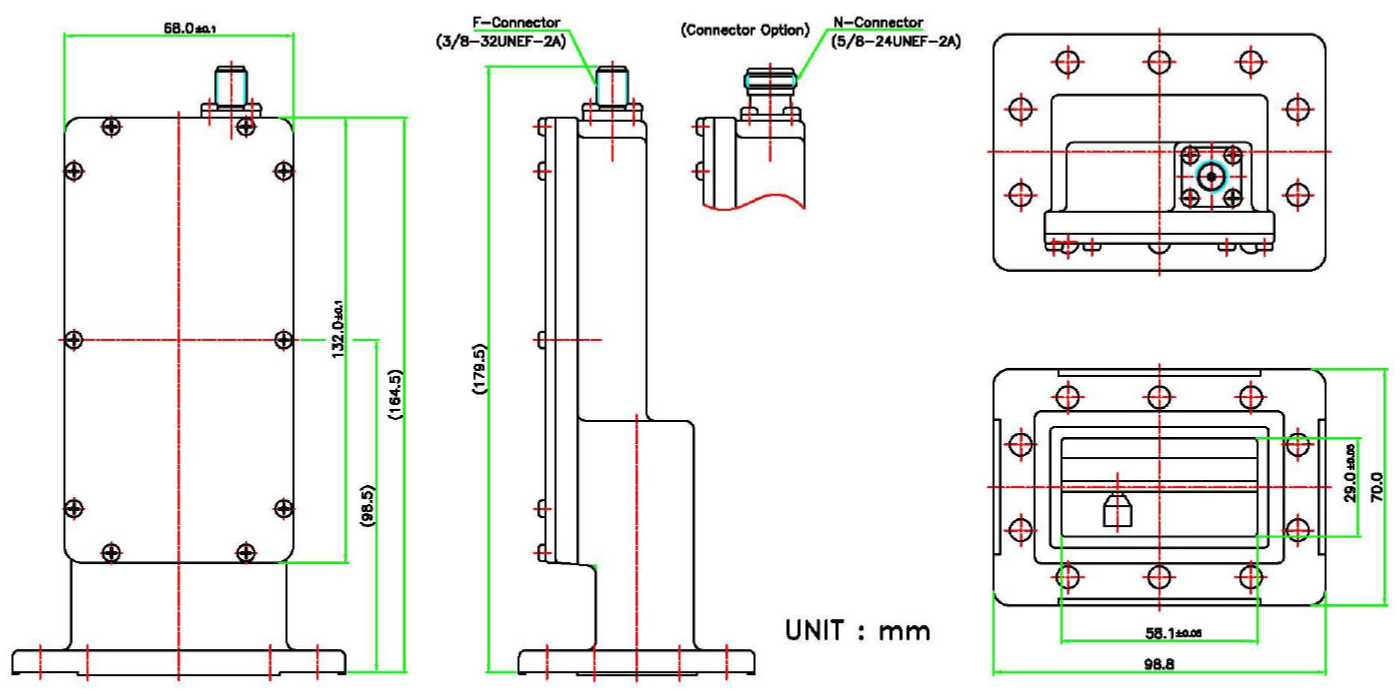

PHYSICAL SPECIFICATIONS
product height 70.0 mm
product length 164.5 mm
product weight 575 g
product width 98.8 mm
