WCM-100007

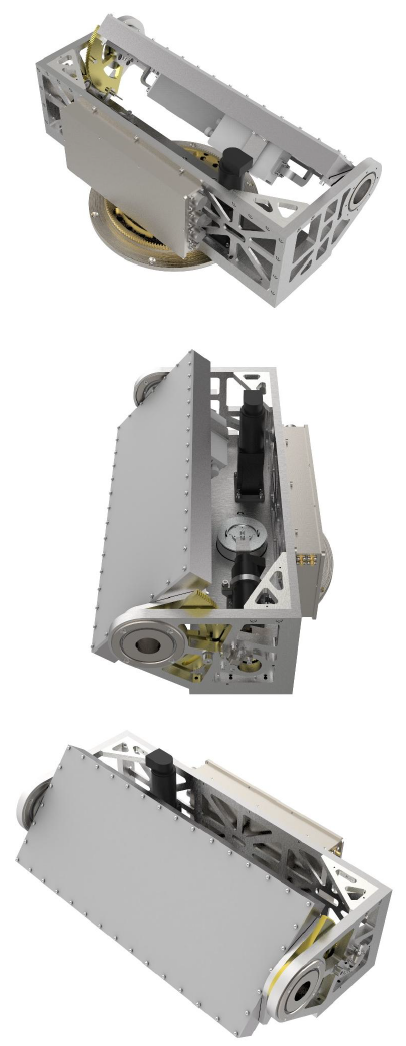

0.55m Ku-Band Communications-on-the-Move Terminal

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
antenna aperture 0.55m
band Ka-Band
Product Revision A
ANTENNA SPECIFICATIONS
acceleration Azimuth: ≥ 200°/s²
Elevation: ≥ 200°/s²
ACU size 19” Rack 1U size
antenna input power 220 VAC, 50 Hz
antenna type Microstrip Plates
auto acquisition Initial acquisition satellite time: ≤ 120s
axial ratio ≤ 1.5 dB
elevation angle 10˚ to +90˚
operating platform 2 - Axis
polarization Circular
positioning mode GPS+BD
satellite time Blockage recovery time: ≤ 5s
Blockage: ≥ 20min
sidelobe Azimuth: ≤ -14 dB
Elevation: ≤ -12 dB
skew control 360˚ continous
starway Beacon/DVB
tracking accuracy ≤ 0.5 dB (RMS)
tracking speed Azimuth: ≥ 60°/s
Elevation: ≥ 60°/s
RF SPECIFICATIONS
Rx frequency 19.6 - 21.2 GHz
rx gain ≥37.4+20lg(f/20.4)dBi
Rx interface WR42
rx tx isolation port isolation 40 dB min.
rx VSWR 1.5 : 1 max.
Tx frequency 29.4 - 31.0 GHz
tx gain ≥40.9+20lg(f/30.2) dBi
Tx interface WR28
tx rx isolation port isolation 85 dB min.
tx VSWR 1.5 : 1 max.
ELECTRICAL SPECIFICATIONS
power consumption 200W (Excluding BUC)
ENVIRONMENTAL SPECIFICATIONS
humidity 95% (40℃)
IP rating IP 65
temperature operational -40 to +55°C
temperature storage -55 to +70°C
wind load operational 21m/s
wind load survival 35 m/s
PHYSICAL SPECIFICATIONS
product height 300 mm (motion envelope)
product length 1045 mm (motion envelope)
product weight ≤ 45 kg (excluding BUC, LNB, packaging and accessories)
product width 960 mm (motion envelope)
