BUC-100479

8W Ku-Band BUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
external ref freq 10 MHz, -5 to +5 dBm
input frequency band 1 950 - 1700 MHz
LO frequency 1 12.80 GHz
output frequency band 1 13.75 - 14.50 GHz
output power rated 8W
product family BUC
Product Revision A
RF SPECIFICATIONS
gain flatness (over 36MHz) 1 dB p-p
gain flatness (over 500MHz) 4 dB p-p
gain flatness (over 750MHz) 5 dB p-p
gain stability 4 dB p-p
IMD3 -25 dBc (3 dB back off from P_rated)
Linear Gain 60 dB
linear power plin 38 dBm (-26 dBc regrowth, 1.5 SR, commercial satellite)
37 dBm (-30 dBc regrowth, 1.0 SR, MIL-STD-188-164B, one-carrier)
36 dBm (≤25 dBc IMD3)
noise power density -144 dBm/Hz in Rx (10.70 - 12.75 GHz)
output power psat 39 dBm min.
output spurious -55 dBc
output VSWR 2 : 1 max.
phase noise 100Hz offset max  -60 dBc/Hz
phase noise 10kHz offset max  -80 dBc/Hz
phase noise 1kHz offset max  -70 dBc/Hz
ELECTRICAL SPECIFICATIONS
power connector Via IFL
power consumption 60 W @ Rated Output
power requirements +18 to +36V DC
INTERFACE SPECIFICATIONS
IF connector F-Connector Female
LED alarm indicator Green On: Normal
Red On: PLL alarm
RF output connector WR-75 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
altitude 0 - 10,000 feet ASL
humidity 0 - 100% condensing
temperature operational -40 to +60°C

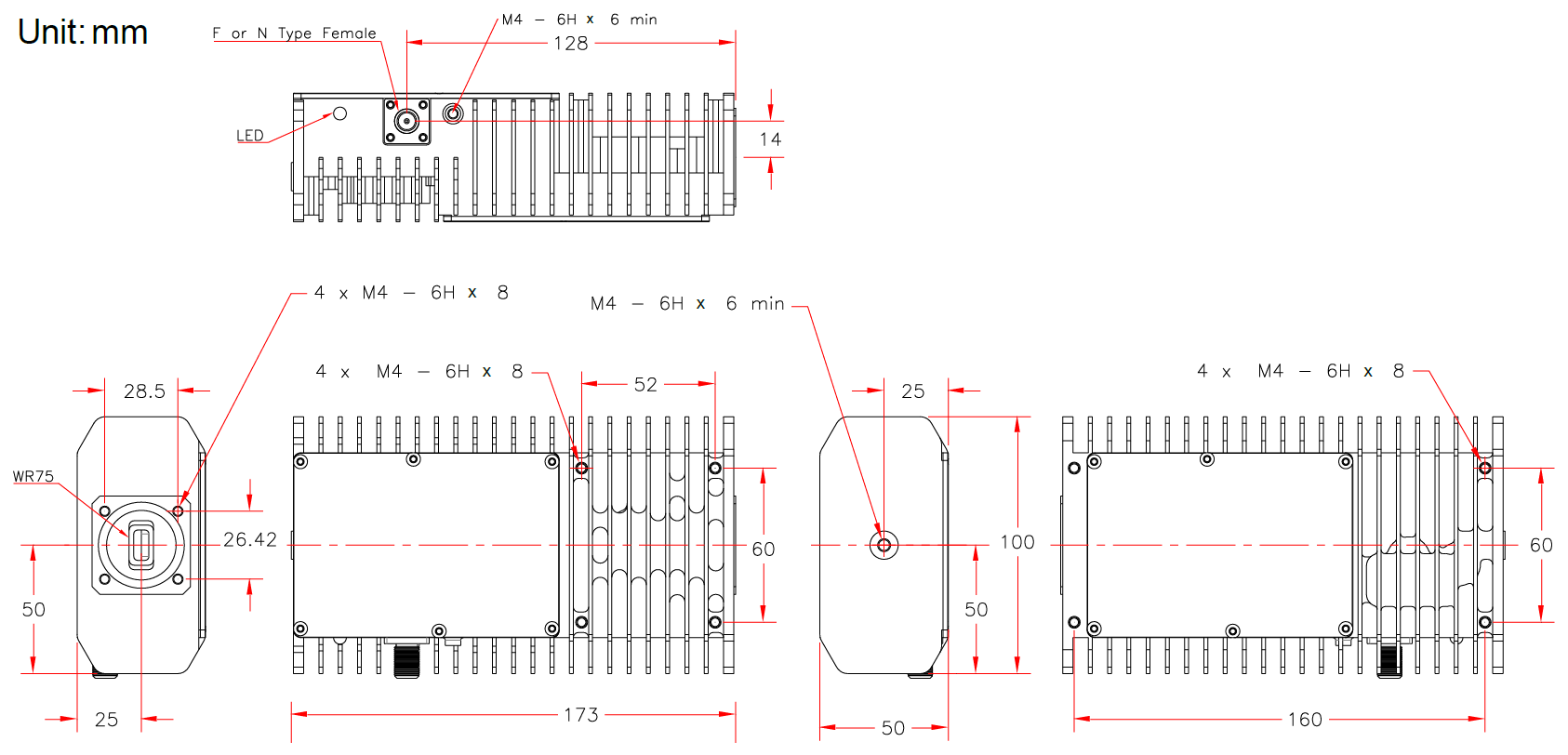

PHYSICAL SPECIFICATIONS
product height 50 mm
product length 173 mm
product weight 1.2 kg
product width 100 mm
