8W Low Ku-Band BUC
8W Low Ku-Band BUC
8W Low Ku-Band BUC
8W Low Ku-Band BUC

BUC-100361

8W Low Ku-Band BUC

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ku-Band
external ref freq 10 MHz, - 5 to + 5 dBm
input frequency band 1 950 - 1450 MHz
LO frequency 1 11.80 GHz
output frequency band 1 12.75 - 13.25 GHz
output power rated 8W
reference type External Reference
Product Revision C
RF SPECIFICATIONS
gain flatness (54MHz) 1.5 dB
Gain Flatness (over full band) 4.0 dB
Gain Flatness (over temperature) 4.0 dB
input VSWR 2.0 : 1
Linear Gain 65 dB typ.
output power 39 dBm typ. over temperature
output VSWR 2.0 : 1
phase noise 0.1kHz offset max -65 dBc/Hz
spurious In-Band: -60 dBc
Out-of-Band: -50 dBc
ELECTRICAL SPECIFICATIONS
input power via IFL Cable
power consumption 75 W max
power requirements +18 to +60V DC
INTERFACE SPECIFICATIONS
Input connector F-Connector
output connector WR-75G
ENVIRONMENTAL SPECIFICATIONS
humidity Up to 100%
IP rating IP 67
temperature operational -40 to +55°C

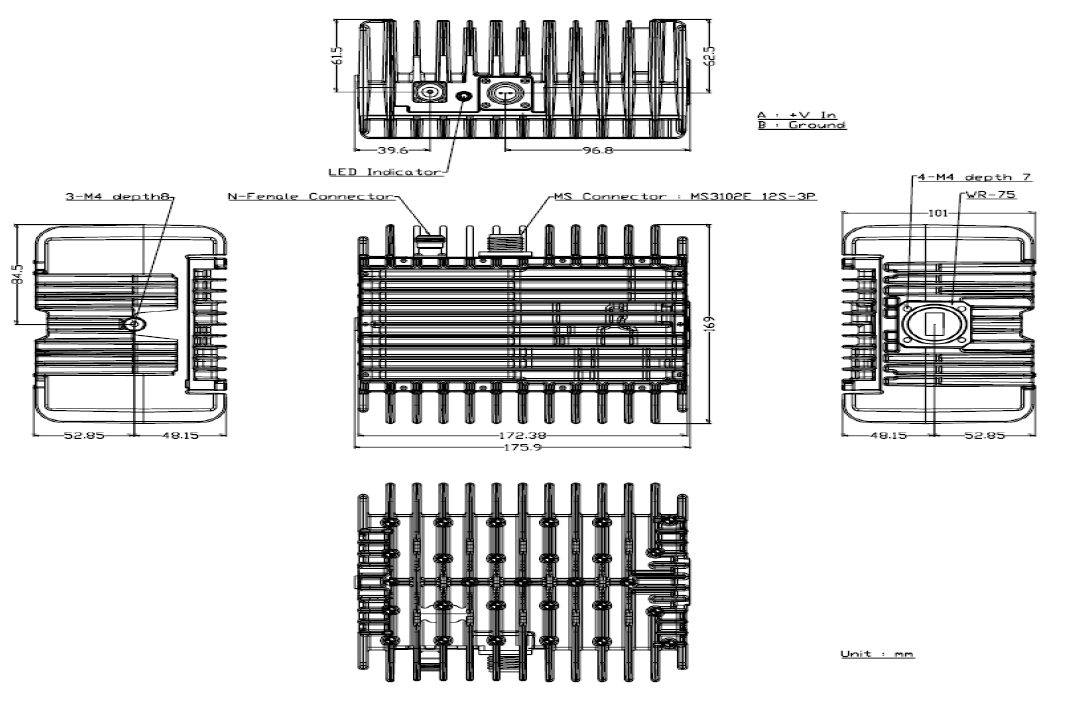

PHYSICAL SPECIFICATIONS
product height 101 mm
product length 175.9 mm
product weight 2.7 kg
product width 169 mm
