9000 Single-Band Ka-Band EXT REF LNB
9000 Single-Band Ka-Band EXT REF LNB
9000 Single-Band Ka-Band EXT REF LNB
9000 Single-Band Ka-Band EXT REF LNB

9000-100041

9000 Single-Band Ka-Band EXT REF LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
input frequency band 1 19.20 - 20.20 GHz
LO frequency 1 18.25 GHz
LO type PLL
noise figure max 1.6 dB
number of onboard LOs Single-Band
output frequency band 1 950 - 1950 MHz
Product Revision E
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (Over Any 1000MHz) 4 dB p-p max.
Gain Flatness (over temperature) 6 dB p-p max. @ fixed frequency (-40 to +60°C)
input VSWR 2.5 : 1 max.
output P1dB + 3 dBm min.
output VSWR 2.5 : 1 max.
phase noise 1kHz offset max -70 dBc/Hz
phase noise 1kHz offset max -70 dBc/Hz
phase noise 10kHz offset max -80 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 350 mA max.
inrush current 0.6 A max.
in rush current 0.6 A max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector F-Connector
RF input connector WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40 to +60°C
temperature storage -40 to +60°C

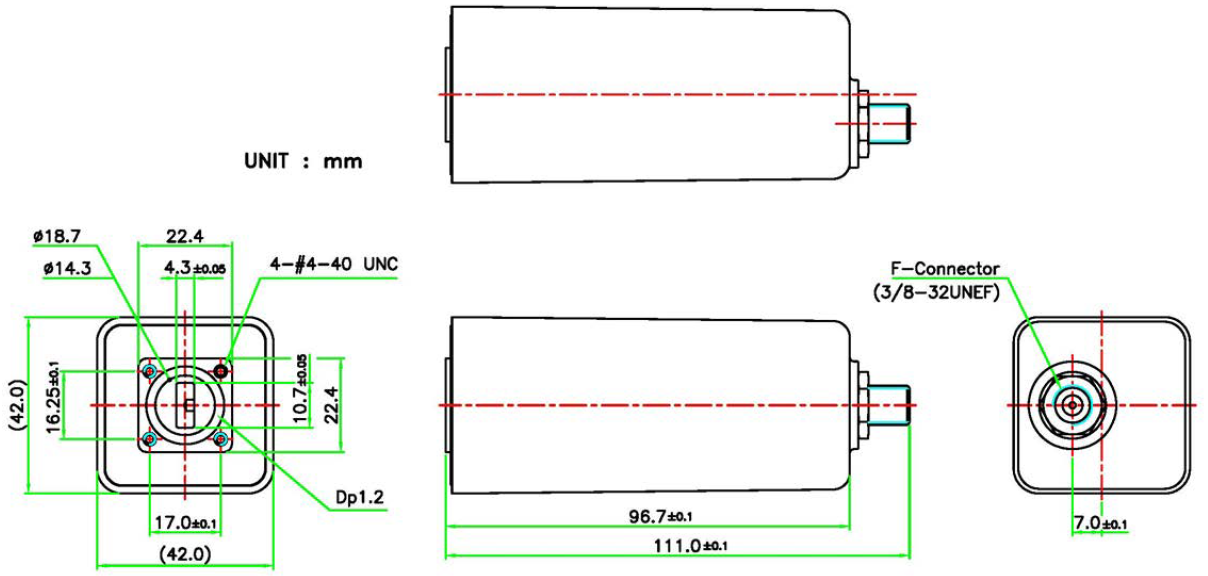

PHYSICAL SPECIFICATIONS
product height 42 mm
product length 111 mm
product weight 270g
product width 42 mm
