9000-100083

9000 Tri-Band Ka-Band EXT REF LNB

$4,435.00

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 17.70 - 18.20 GHz
input frequency band 2 18.20 - 19.20 GHz
input frequency band 3 19.20 - 20.20 GHz
LO frequency 1 16.75 GHz
LO frequency 2 17.25 GHz
LO frequency 3 18.25 GHz
LO type PLL
number of onboard LOs Triple-Band
output frequency band 1 950 - 1450 MHz
output frequency band 2 950 - 1950 MHz
output frequency band 3 950 - 1950 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (over full band) ≤ 4 dB p-p max.
image rejection 40 dBc min.
input VSWR 1.5 : 1 max. with w/G isolator
output P1dB + 5 dBm min.
output VSWR 2.0 : 1 max.
spurious -60 dBc @ 10 dBm (in band) ; -50 dBc @ 10 dBm (out of band)
ELECTRICAL SPECIFICATIONS
current consumption 320mA per each port
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector F-Connector
RF input connector WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C
temperature storage -40 to +80°C

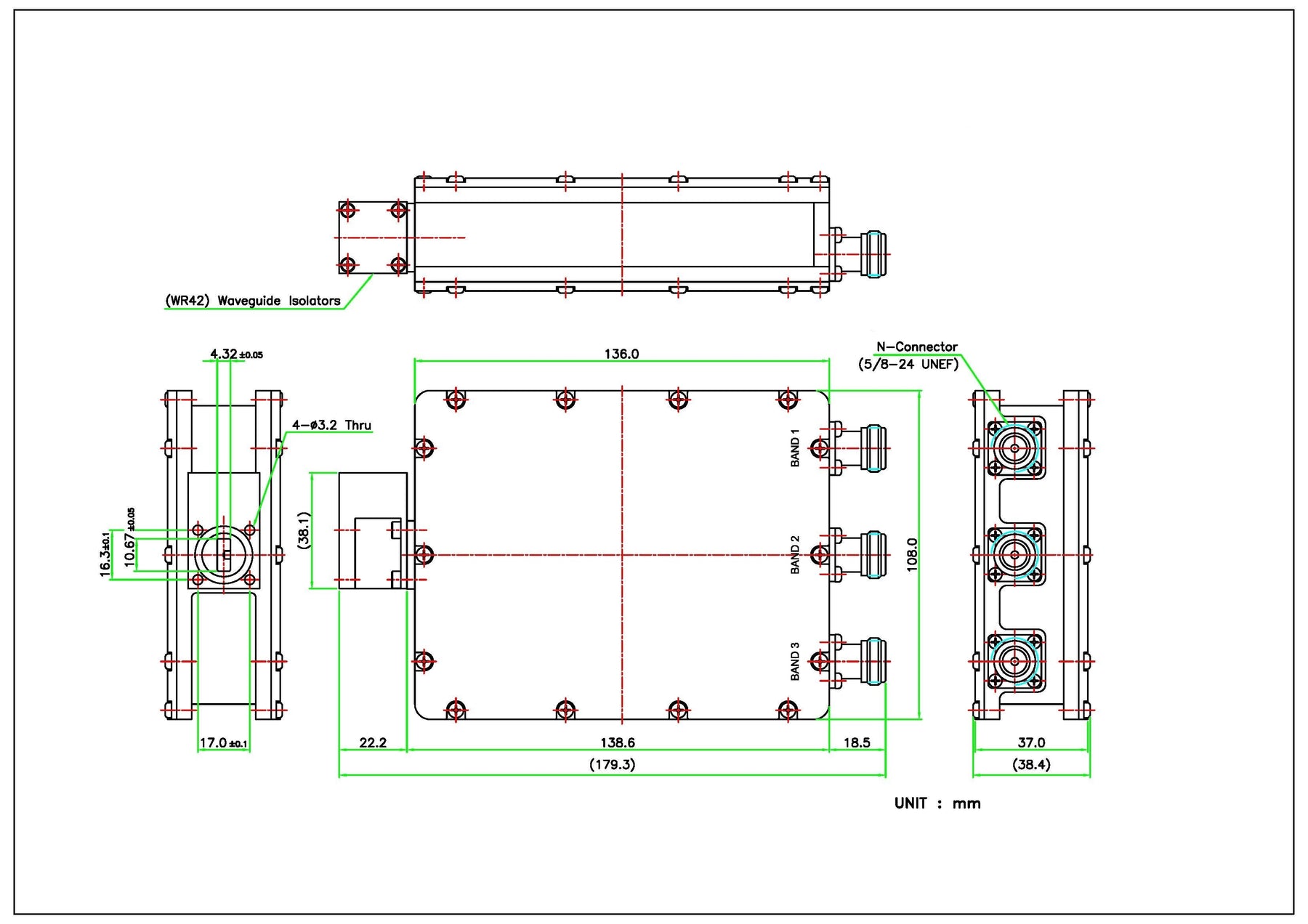

PHYSICAL SPECIFICATIONS
product height 38.4 mm
product length 138.6 mm
product weight 1.1 kg w/G isolator
product width 108 mm
