9000 Dual-Band Simultaneous Ka-Band EXT REF LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 17.70 - 18.90 GHz
input frequency band 2 18.90 -20.10 GHz
LO frequency 1 16.75 GHz
LO frequency 2 17.95 GHz
LO type EXT
noise figure max 1.8 dB
number of onboard LOs Simultaneous Dual-Band
output frequency band 1 950 - 2150 MHz
output frequency band 2 950 - 2150 MHz
Product Revision C
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (over full band) 4 dB p-p max. (each band)
Gain Ripple at Per 27MHz 1 dB p-p max.
input VSWR 3 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.5 : 1 max.
phase noise 1kHz offset max -70 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 350 mA max. (each band)
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF input connector WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40 to +60°C

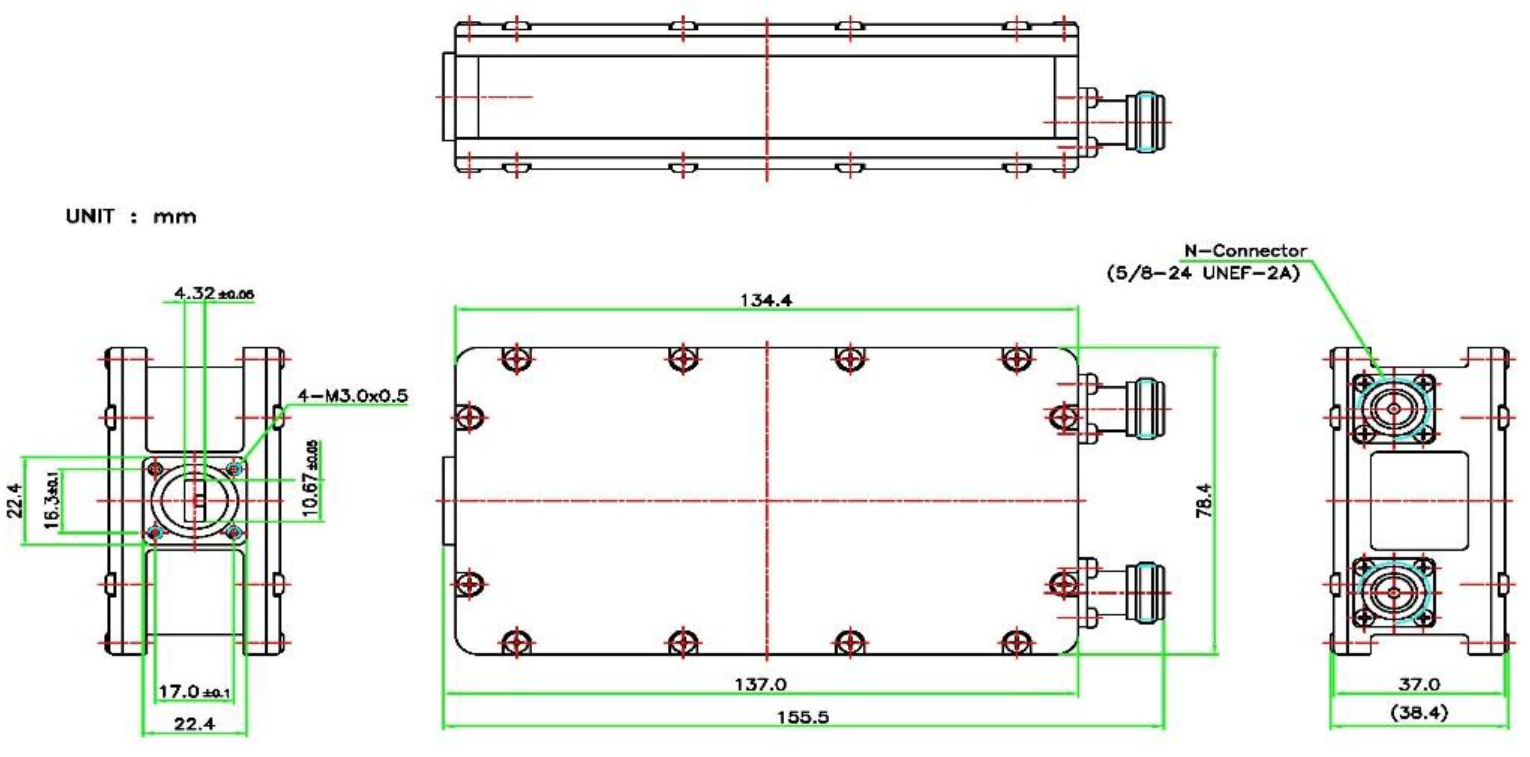

PHYSICAL SPECIFICATIONS
product height 38.4 mm
product length 137.0 mm
product weight 700g
product width 78.4 mm
