9000 Ka-Simultaneous Quad Band PLL EXT LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



d

KEY SPECIFICATIONS
band Ka-Band
external ref freq 10MHz, -5 to +5dBm
input frequency band 1 17.70 - 18.85 GHz
input frequency band 2 18.85 - 20.00 GHz
input frequency band 3 20.00 - 21.15 GHz
input frequency band 4 21.15 - 22.20 GHz
LO frequency 1 16.70 GHz
LO frequency 2 17.85 GHz
LO frequency 3 19.00 GHz
LO frequency 4 20.15 GHz
LO stability Ext Ref
LO type EXT
noise figure max 2.0 dB (with waveguide isolator)
number of onboard LOs Simultaneous Quad Band
output frequency band 1 1000 - 2150 MHz
output frequency band 2 1000 - 2150 MHz
output frequency band 3 1000 - 2150 MHz
output frequency band 4 1000 - 2050 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
gain flatness (36MHz) 1 dB p-p max.
Gain Flatness (over full band) 4 dB p-p max.
image rejection 40 dBc min.
input VSWR 1.5 : 1 max. (with waveguide isolator)
output P1dB +5 dBm min.
output VSWR 2.2 : 1 max.
phase noise 1kHz offset max -70 dBc/Hz
phase noise 10kHz offset max -80 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 450 mA max. (each band)
power requirements +12 to +24V DC (each band)
INTERFACE SPECIFICATIONS
IF connector SMA Connector
isolator With Isolator
RF input connector WR 42
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40°C to +60°C

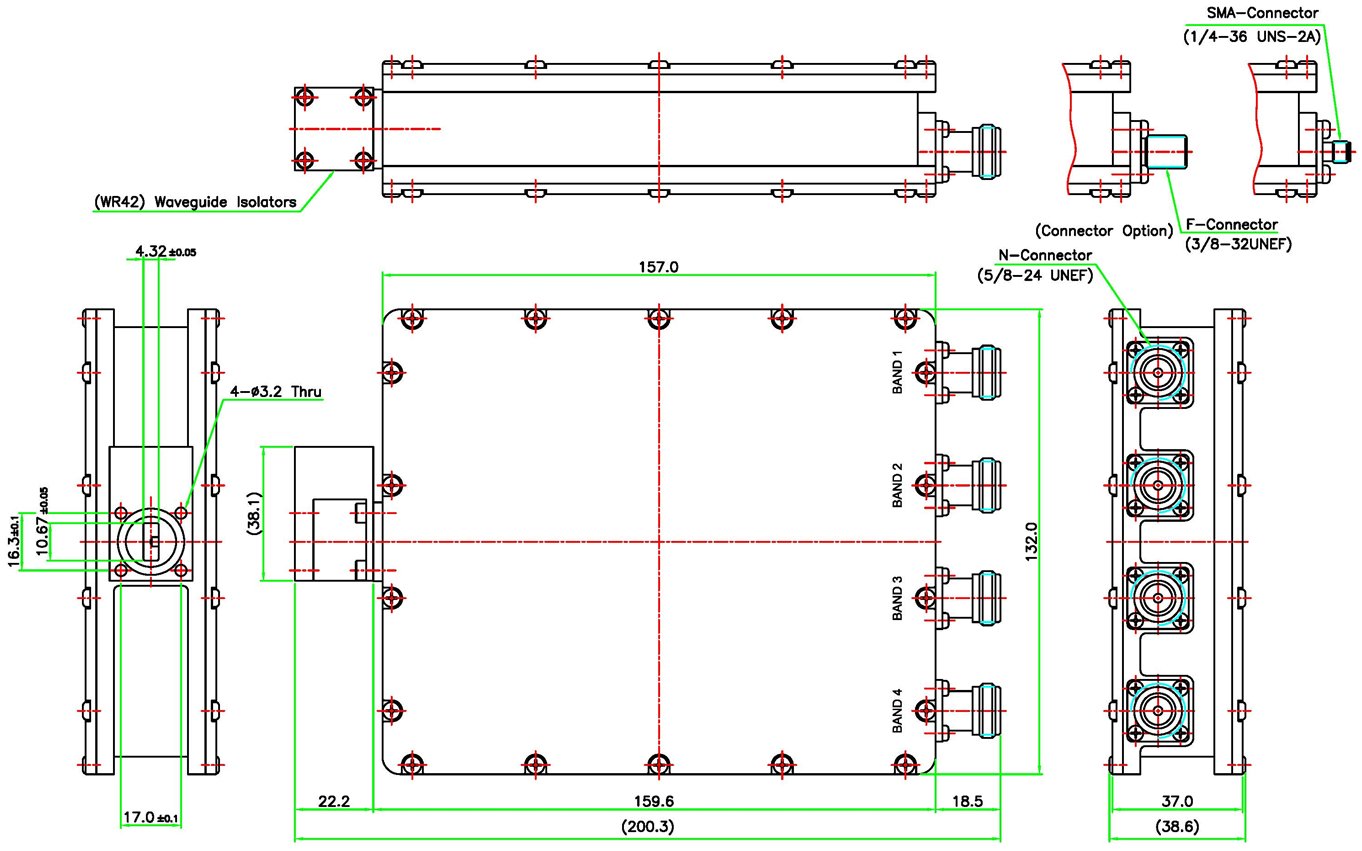

PHYSICAL SPECIFICATIONS
product height 38.6 mm
product length 200.3 mm
product weight 1.3 kg
product width 132 mm
