9000 Single Band Ka-Band EXT REF LNB
9000 Single Band Ka-Band EXT REF LNB
9000 Single Band Ka-Band EXT REF LNB
9000 Single Band Ka-Band EXT REF LNB

9000-100129

9000 Single Band Ka-Band EXT REF LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 17.7 - 18.7 GHz
LO frequency 1 16.725 GHz
LO stability Ext Ref
LO type EXT
noise figure max 1.5 dB (with waveguide isolator)
number of onboard LOs Single-Band
output frequency band 1 950 - 1950 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (over full band) ≤ 4 dB p-p max.
gain ripple at per 36MHz ≤ 1 dB p-p max.
image rejection 40 dBc min.
input VSWR 1.35 : 1 max. (with waveguide isolator)
output P1dB + 5 dBm min.
output VSWR 2.5 : 1 max.
phase noise 1kHz offset max -70 dBc/Hz
phase noise 10kHz offset max -80 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 450 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF input connector WR-42 waveguide grooved
M and C SPECIFICATIONS
led indicators None
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40°C to +70°C

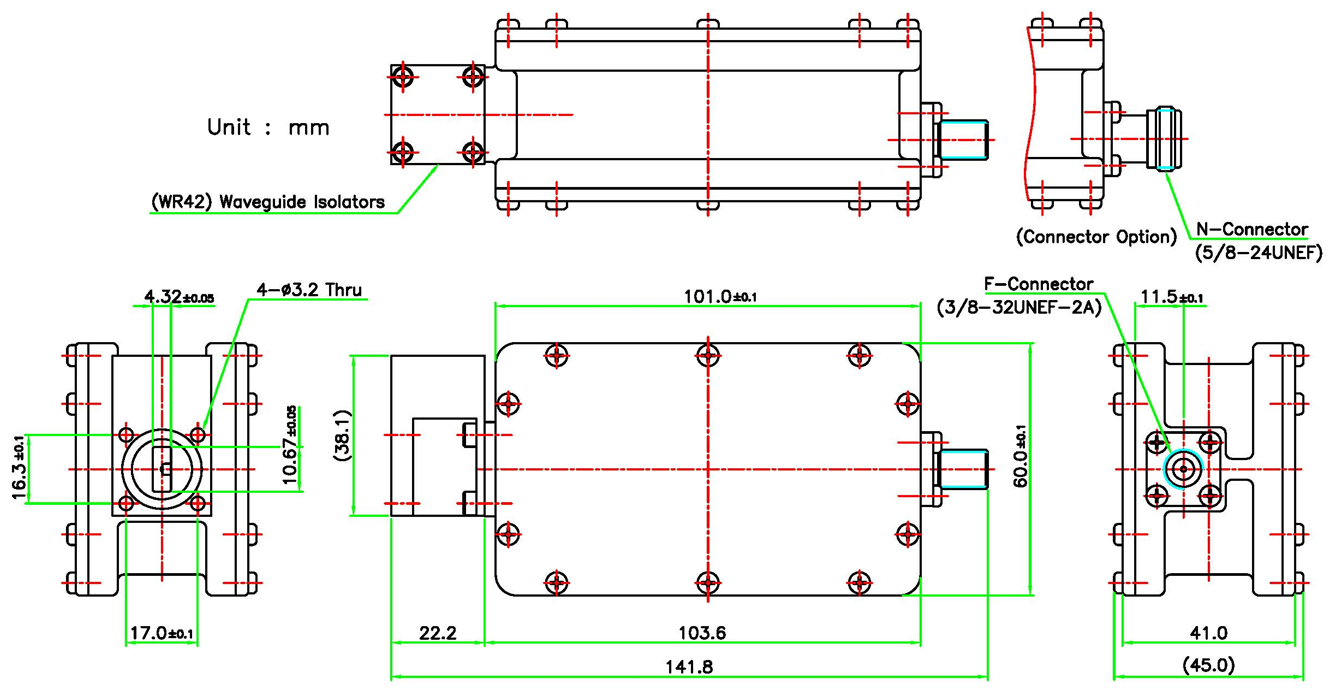

PHYSICAL SPECIFICATIONS
product height 45.0 mm
product length 103.6 mm
product weight 0.42 kg
product width 60.0 mm
