9000 Ka-Simultaneous 5 Band PLL Auto-Ref LNB
9000 Ka-Simultaneous 5 Band PLL Auto-Ref LNB
9000 Ka-Simultaneous 5 Band PLL Auto-Ref LNB
9000 Ka-Simultaneous 5 Band PLL Auto-Ref LNB

9000-100130

9000 Ka-Simultaneous 5 Band PLL Auto-Ref LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
external input port via N-Connector
external ref freq 10MHz, -5 to +5 dBm
input frequency band 1 17.20 - 18.20 GHz
input frequency band 2 18.20 - 19.20 GHz
input frequency band 3 19.20 - 20.20 GHz
input frequency band 4 20.20 - 21.20 GHz
input frequency band 5 21.20 - 22.30 GHz
LO frequency 1 16.25 GHz
LO frequency 2 17.25 GHz
LO frequency 3 18.25 GHz
LO frequency 4 19.25 GHz
LO frequency 5 20.25 GHz
LO stability ±10 kHz max.
LO type AUTO-REF
noise figure max 2.4 dB (with waveguide isolator)
number of onboard LOs Simultaneous 5-Band
output frequency band 1 950 - 1950 MHz
output frequency band 2 950 - 1950 MHz
output frequency band 3 950 - 1950 MHz
output frequency band 4 950 - 1950 MHz
output frequency band 5 950 - 2050 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 63 dB
conversion gain min 53 dB
conversion gain typ 58 dB
gain flatness (36MHz) 1 dB p-p max.
Gain Flatness (over full band) 6 dB p-p max.
gain variation over 24hrs ±1.0 dB max.
group delay variation within 0\.5MHz ±1 ns max.
image rejection 40 dBc min.
input VSWR 1.5 : 1 max. (with waveguide isolator)
LO leakage -60 dBm max. @ waveguide input
-40 dBm max. @ IF output
output IP3 +15 dBm min.
output P1dB +5 dBm min.
output VSWR 2.2 : 1 max.
phase noise 1kHz offset max -70 dBc/Hz
phase noise 10kHz offset max -80 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 450 mA max. (each band)
power requirements +12 to +24V DC (each band)
INTERFACE SPECIFICATIONS
IF connector N-Connector
isolator With Isolator
RF input connector WR 42
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40°C to +60°C

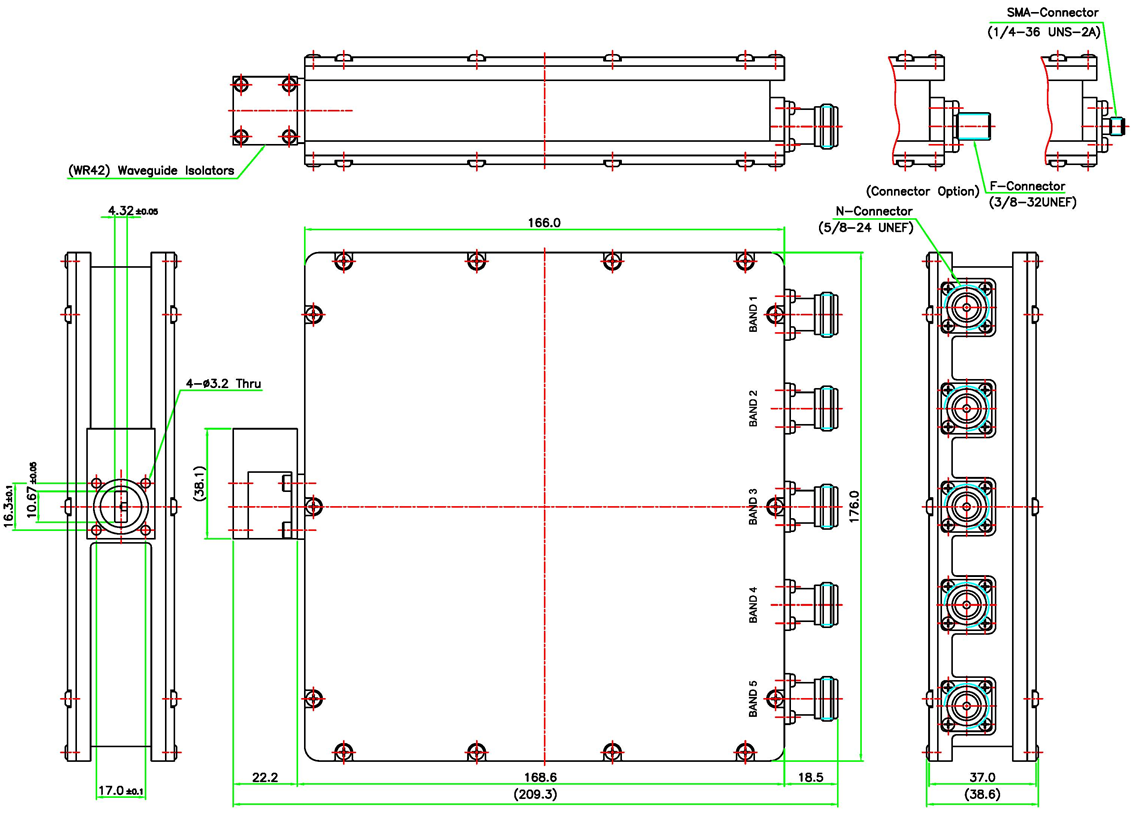

PHYSICAL SPECIFICATIONS
MTBF 160,000 hr
product height 38.6 mm
product length 190.8 mm (excludes connector)
product weight 1.7 kg
product width 176 mm
