Single Band Ka-Band PLL LNB
Single Band Ka-Band PLL LNB
Single Band Ka-Band PLL LNB
Single Band Ka-Band PLL LNB

9000-100131

Single Band Ka-Band PLL LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
input frequency band 1 19.20 - 20.20 GHz
LO frequency 1 18.25 GHz
LO stability ±25 kHz
LO type PLL
noise figure max 1.6 dB
noise figure typ 1.5 dB
number of onboard LOs Single-Band
output frequency band 1 950 - 1950 MHz
Product Revision A
RF SPECIFICATIONS
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
gain flatness (36MHz) 1 dB p-p max.
Gain Flatness (over full band) 4 dB p-p max.
input VSWR 1.5 : 1 max.
output P1dB + 5 dBm min.
output VSWR 2.0 : 1 max.
phase noise 1kHz offset max -70 dBc/Hz
phase noise 10kHz offset max -80 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
ELECTRICAL SPECIFICATIONS
current consumption 450 mA max.
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector (waterproof)
isolator With Isolator
RF input connector WR-42 waveguide grooved (waterproof)
M and C SPECIFICATIONS
led indicators None
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40°C to +60°C

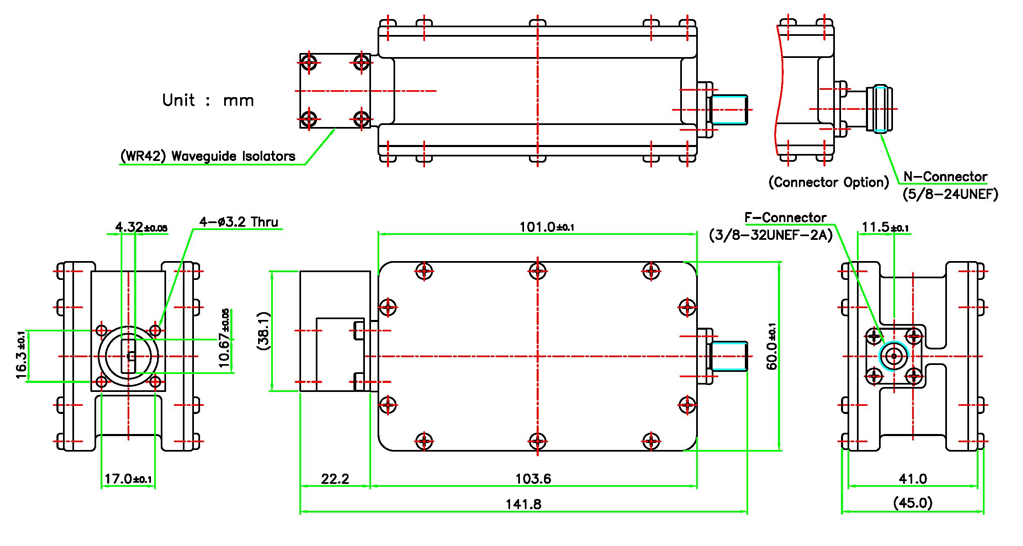

PHYSICAL SPECIFICATIONS
product height 45 mm
product length 125.8 mm (excludes connector)
product weight 0.42 kg
product width 60 mm
