9000HCS-033590
9000 Single-Band Ka-Band EXT REF LNB
Regular pricePlease sign in or create an account to view the price and availability.
(Scroll to see specifications and documents)
Send a copy to email:
By entering your email, you agree that it will be seen by the store Norsat and may contact you.
Or download now:
Open here
| KEY SPECIFICATIONS | |
|---|---|
| band | Ka-Band |
| customization | Countersunk Lid Screws, #4-40 Waveguide Flange Holes |
| input frequency band 1 | 20.20 - 21.20 GHz |
| LO frequency 1 | 19.25 GHz |
| LO type | EXT |
| noise figure max | 1.5 dB |
| number of onboard LOs | Single-Band |
| output frequency band 1 | 950 - 1950 MHz |
| Product Revision | A |
| RF SPECIFICATIONS | |
|---|---|
| conversion gain max | 65 dB |
| conversion gain min | 55 dB |
| conversion gain typ | 60 dB |
| input VSWR | 2.5 : 1 max. |
| output P1dB | + 5 dBm min. |
| output VSWR | 2.5 : 1 max. |
| phase noise 1kHz offset max | -65 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| current consumption | 400 mA max. |
| power requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
|---|---|
| IF connector | SMA-Connector |
| RF input connector | WR-42 Waveguide Grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| temperature operational | -40 to +60°C |
| temperature storage | -40 to +80°C |

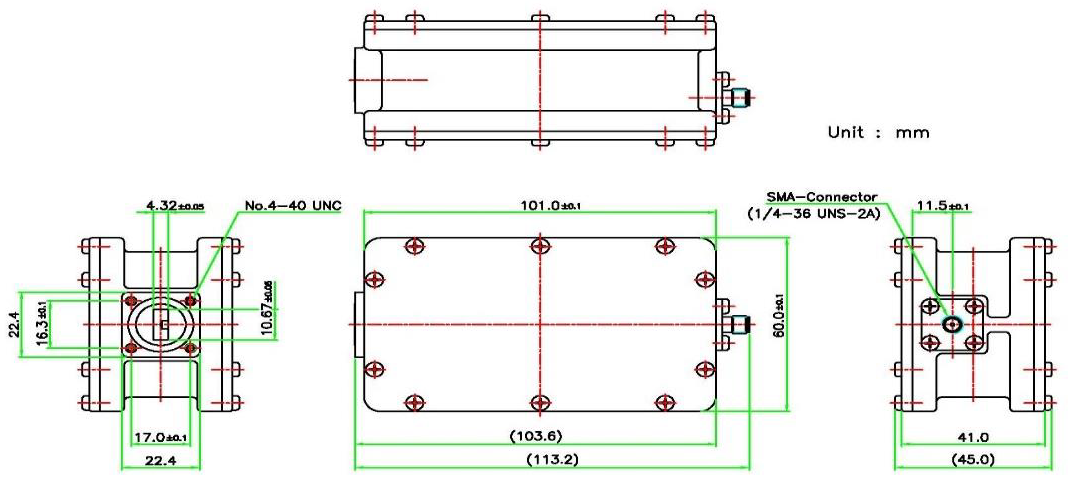

| PHYSICAL SPECIFICATIONS | |
|---|---|
| product height | 45.0 mm |
| product length | 113.2 mm |
| product weight | 400g |
| product width | 60.0 mm |
