Ka-Band Quad-Band LNB
Ka-Band Quad-Band LNB
Ka-Band Quad-Band LNB
Ka-Band Quad-Band LNB

9000UI-001

Ka-Band Quad-Band LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
input frequency band 1 17.20 - 18.20 GHz
input frequency band 2 18.20 - 19.20 GHz
input frequency band 3 19.20 - 20.20 GHz
input frequency band 4 20.20 - 21.20 GHz
LO frequency 1 16.25 GHz
LO frequency 2 17.25 GHz
LO frequency 3 18.25 GHz
LO frequency 4 19.25 GHz
noise figure 2.0 dB max.
number of onboard LOs Quad-Band
output frequency band 1 950 - 1950 MHz
output frequency band 2 950 - 1950 MHz
output frequency band 3 950 - 1950 MHz
output frequency band 4 950 - 1950 MHz
Product Revision B
RF SPECIFICATIONS
control signal 1 13V / No Tone
control signal 2 13V / 22kHz Tone
control signal 3 18V / No Tone
control signal 4 18V / 22kHz Tone
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (over full band) ≤ 4 dB p-p
input VSWR 1.3 : 1 max. - with isolator
output P1dB + 10 dBm min.
output VSWR 2.2 : 1 max.
phase noise 1kHz offset max -70 dBc/Hz
phase noise 10kHz offset max -80 dBc/Hz
phase noise 100kHz offset max -95 dBc/Hz
tone amplitude voltage 0.6 ± 0.2 V
tone duty cycle 50% ± 10%
tone frequency 22 kHz ± 4 kHz
ELECTRICAL SPECIFICATIONS
current consumption 350 mA Max
power requirements +12 to +24V DC
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF input connector WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
temperature operational -40 to +60°C
temperature storage -40 to +80°C

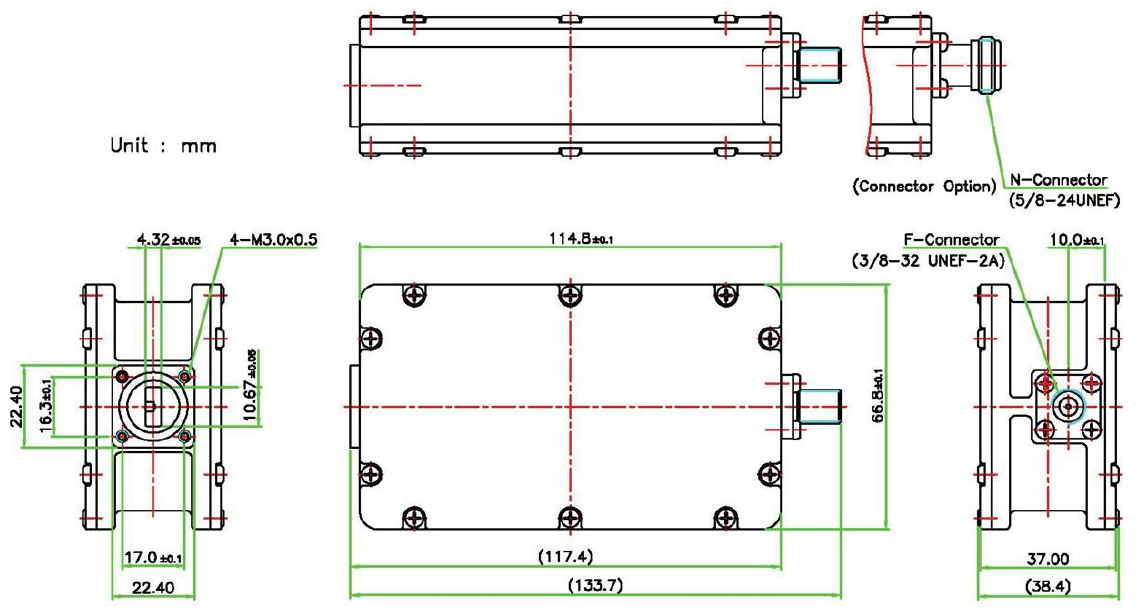

PHYSICAL SPECIFICATIONS
product height 38 mm
product length 140 mm
product weight 0.550 kg
product width 67 mm
