9000 Triple-Band Ka-Band PLL LNB
9000 Triple-Band Ka-Band PLL LNB
9000 Triple-Band Ka-Band PLL LNB
9000 Triple-Band Ka-Band PLL LNB

9000XTN-810145

9000 Triple-Band Ka-Band PLL LNB

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
external ref freq 10 MHz (sine-wave), - 5 to +5 dBm
input frequency band 1 17.70 - 18.70 GHz
input frequency band 2 18.70 -19.70 GHz
input frequency band 3 19.70-20.70 GHz
LO frequency 1 16.75 Ghz
LO frequency 2 17.75 Ghz
LO frequency 3 18.75 GHz
LO type PLL
noise figure max 1.7 dB
number of onboard LOs Triple-Band
output frequency band 1 950 - 1950 MHz
output frequency band 2 950 - 1950 MHz
output frequency band 3 950 - 1950 MHz
Product Revision B
RF SPECIFICATIONS
control signal 1 13V / No Tone
control signal 2 13V / 22kHz Tone
control signal 3 18V / No Tone
conversion gain max 65 dB
conversion gain min 55 dB
conversion gain typ 60 dB
Gain Flatness (Over Any 36MHz) 1 dB p-p max. (Constant Temperature)
Gain Flatness (over full band) 5 dB p-p max.
image rejection Band 1: 40 dBc min.
Band 2: 30 dBc min.
Band 3: 0 dBc min.
input VSWR 3 : 1 max.
LO leakage -45 dBm max. @ Input Port
output P1dB + 5 dBm min.
output VSWR 2.5 : 1 max.
ELECTRICAL SPECIFICATIONS
current consumption 450 mA max.
INTERFACE SPECIFICATIONS
IF connector N-Connector
RF input connector WR-42 waveguide grooved
ENVIRONMENTAL SPECIFICATIONS
IP rating IP 67
temperature operational -40 to +60°C
temperature storage -40 to +80°C

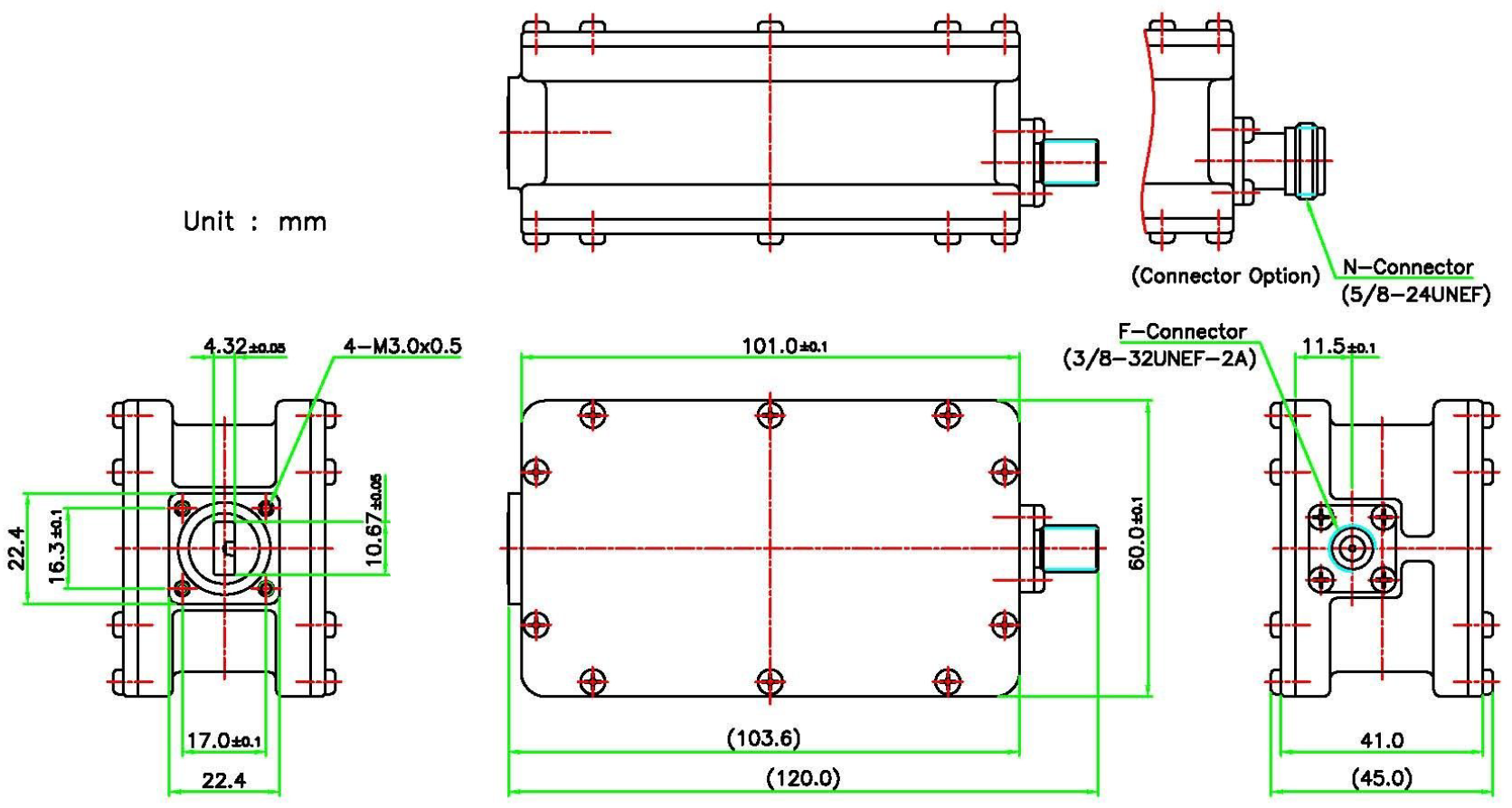

PHYSICAL SPECIFICATIONS
product height 45 mm
product length 120 mm
product weight 400g
product width 60 mm
