ACC-101070

Ka-Band 4-Port Diplexer with Polarizer

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



KEY SPECIFICATIONS
band Ka-Band
Rx frequency 17.7 - 21.2 GHz
Tx frequency 27.5 - 31.0 GHz
Product Revision A
ANTENNA SPECIFICATIONS
axial ratio Polarizer: ≤ 1 dB
cross polarization isolation Diplexer: ≥ 35 dB
number of ports Diplexer: 4-Ports
phase difference Polarizer: 90° ± 3°
polarization Polarizer: Circular
RF SPECIFICATIONS
insertion loss Diplexer: ≤ 0.3 dB
Polarizer: ≤ 0.3 dB
rx-tx port isolation Diplexer: ≥ 85 dB
tx-rx port isolation Diplexer: ≥ 85 dB
VSWR Diplexer: ≤ 1.3 : 1
Polarizer: ≤ 1.15 : 1

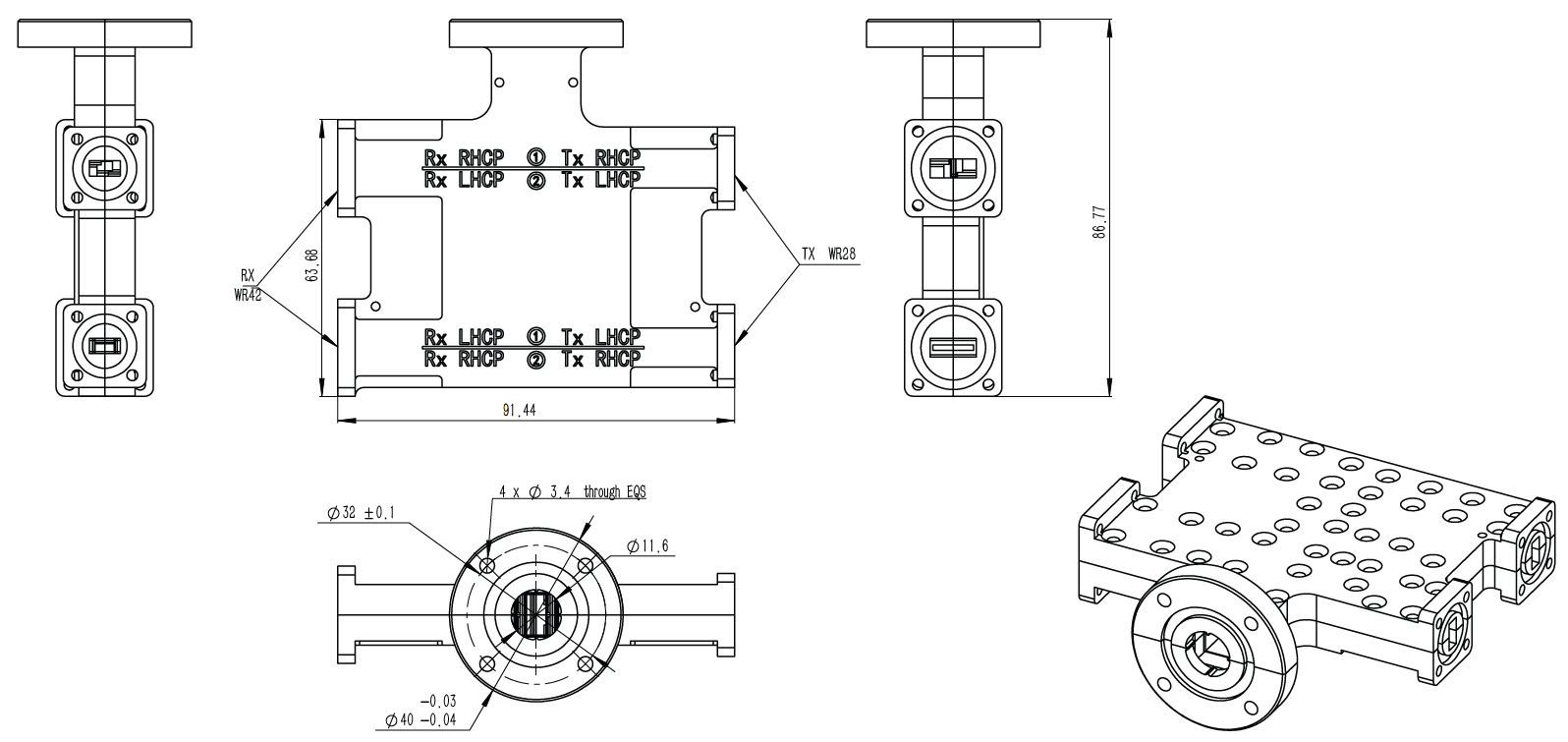

INTERFACE SPECIFICATIONS
common port Diplexer: φ 11.6
Rx interface Diplexer: WR-42
Tx interface Diplexer: WR-28
ENVIRONMENTAL SPECIFICATIONS
IP rating Diplexer: IP67

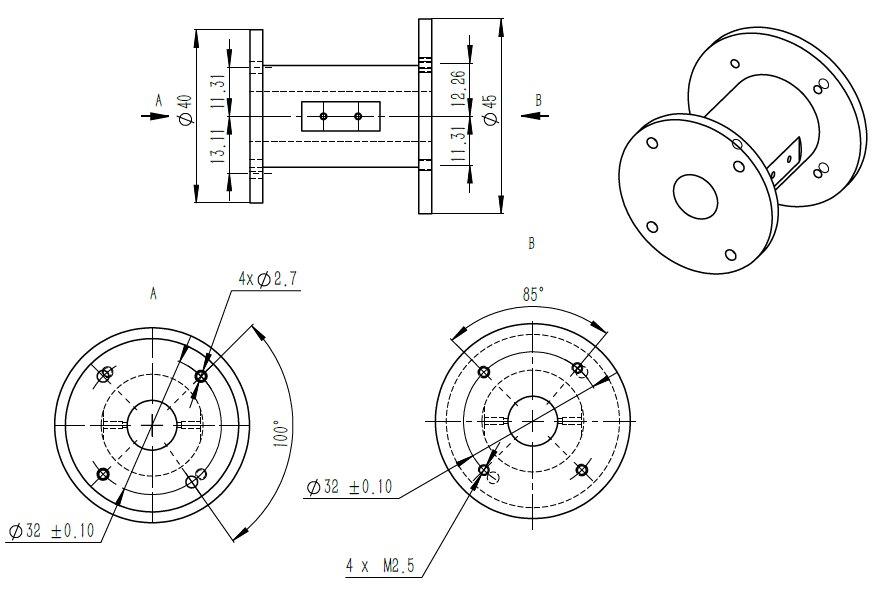

PHYSICAL SPECIFICATIONS
product height Diplexer: 20 mm
Polarizer: 20 mm
product length Diplexer: 91 mm
Polarizer: 42 mm
product weight Diplexer: 230 g
Polarizer: 70 g
product width Diplexer: 87 mm
Polarizer: 20 mm
