ACC‑101103

Kit, Ground Control Station, RuggON PX501, for CBRN UGV

Please sign in or create an account to view the price and availability.

(Scroll to see specifications and documents)

Only 0 items in stock!
Maximum total coverage is 5 years.



  • 13th generation Intel® Core™ i5 processor
  • Advanced display with high brightness and hyper dimming technology to adapt different ambient-light conditions
  • WiFi 6E & 5G, Iridium LEO satellite
  • Hot-swap battery plus fast charging offers near indefinite capacity
  • A wealth of I/O ports and expansion options fulfill field use
KEY SPECIFICATIONS
camera
  • 2MP front camera
  • 8MP auto focus rear camera with LED flash
communication
  • Wi-Fi 6E, 802.11 ax
  • Bluetooth V5.3
  • GNSS (GPS/ GLONASS/ BeiDou)
display
  • 10.1” TFT LED backlight WUXGA (1920 x 1200), Gorilla Glass
  • 1000 nits sunlight readable with hyper dimming option
  • Capacitive multi-touch screen supports glove touch, water rejection, palm rejection, 2mm hard tip stylus
security TPM2.0
system

  • Intel® Core™ i5-1335UE

    Intel® Core™ i7 1365UE

    Intel® Processor U300E

  • 8GB DDR5 SDRAM
  • 128GB PCIE M.2 SSD
Product Revision A
ELECTRICAL SPECIFICATIONS
power
  • AC adapter (65W, 100-240V AC, 50/60Hz)
  • 4500mAh hot swappable battery, (10.8V, 48.6Wh)I

  • Fast charging supported



    IBattery life rating is for comparison purposes only. Actual battery life varies by configuration, application, power management and operating conditions.
INTERFACE SPECIFICATIONS

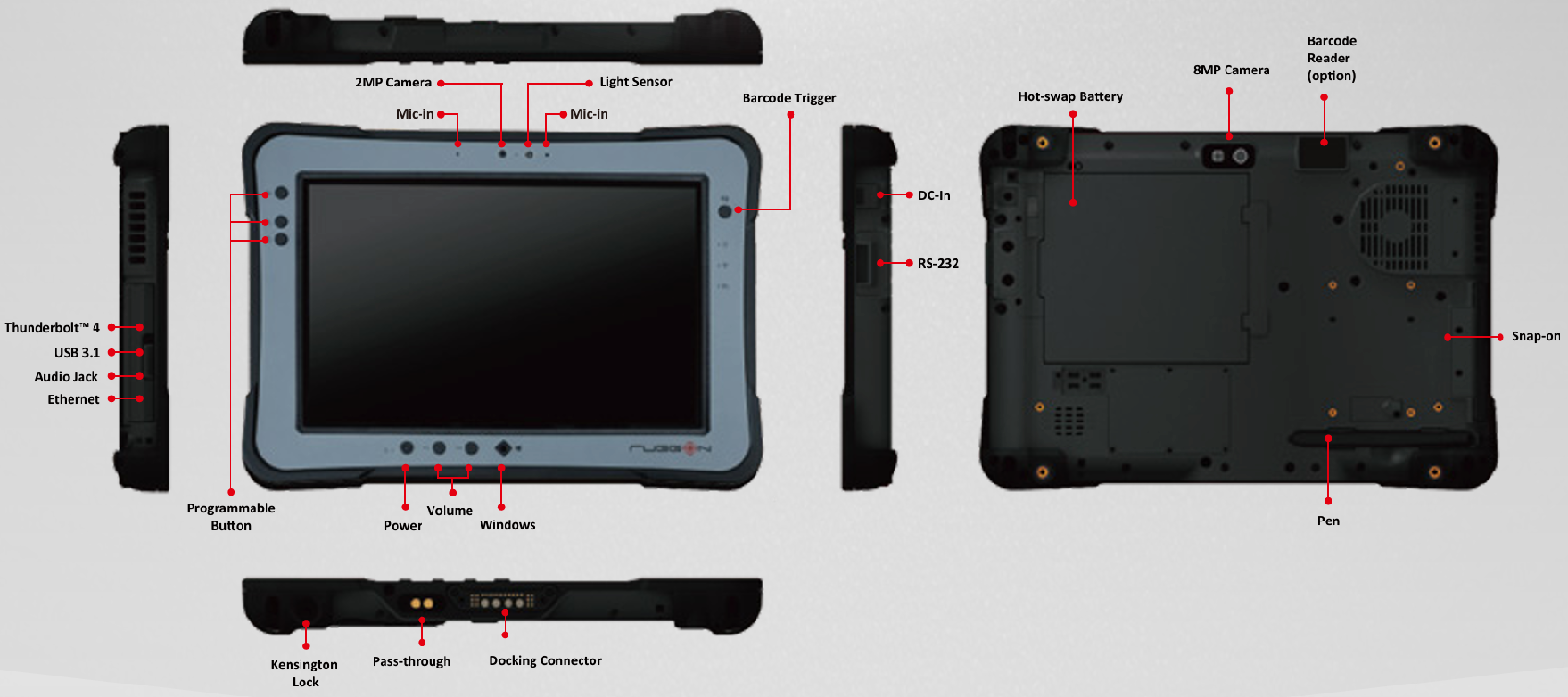

control button
  • Programmable button x 3
  • Barcode trigger x 1
  • Power, volume, Windows button
I/O interface
  • USB 3.1 type A x1, Thunderbolt™ 4 Type-C x 1
  • RS-232 x 1, option USB 2.0 or Micro SD slot
  • Gigabit Ethernet (RJ45) x 1
  • Audio headset jack (Headphone/ microphone combo) x 1
  • Nano SIM slot x 2
  • Docking connector (12-pin) x 1
  • DC-in x 1
M and C SPECIFICATIONS
software DashON
ENVIRONMENTAL SPECIFICATIONS
humidity 95%, non-condensing
IP rating IP65
rugged feature
  • MIL-STD-810H and MIL-STD-461G certified
  • Vibration, shock and 5-foot drop resistance
temperature operational -20°C to +60°C
temperature storage -30°C to +70°C
PHYSICAL SPECIFICATIONS

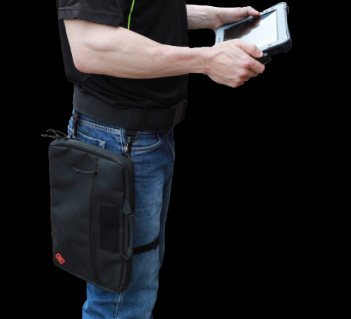

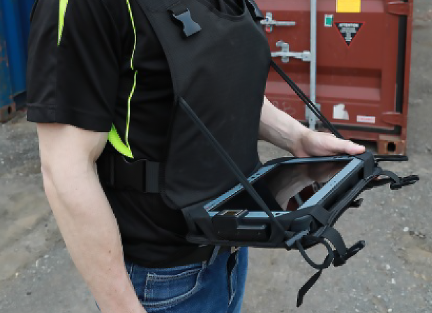

enclosed accessories RuggGear loading vest and multi-use carry bag, mounting bracket, case
product height 195 mm
product length 280 mm
product weight 1.36 kg (depends on configuration and optional accessories)
product width 23 mm
